Product Details

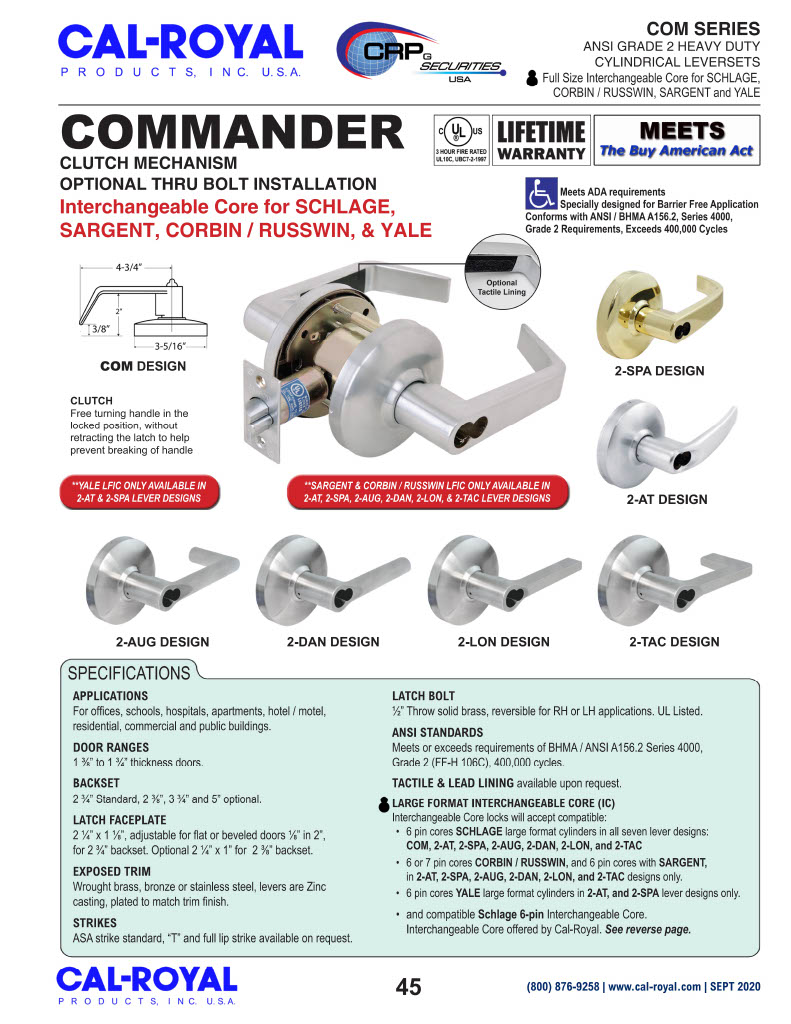

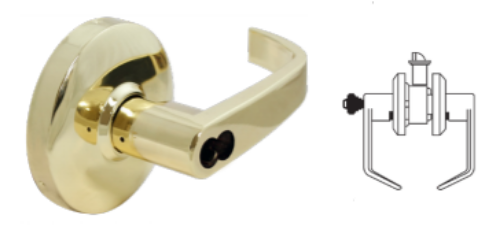

Cal-Royal YALICC-2-SPA05*Grade 2, StoreroomLock - Accepts Yale Large-format Interchangeable Core (LFIC) (core not included)*- With Clutch - ANSI F86
Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed
DOOR RANGES:1 3/8" to 1 3/4" thickness doors.
BACKSET:2 3/4" Standard, 2 3/8", 3 3/4" and 5" optional.
LATCH FACEPLATE:2 1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2",
for 2 3/4" backset. Optional 2 1/4" x 1" for 2 3/8" backset.
STRIKES:ASA strike standard, "T" and full lip strike available on request.
LATCH BOLT:1/2" Throw solid brass, reversible for RH or LH applications. UL Listed.
ANSI STANDARDS:Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
