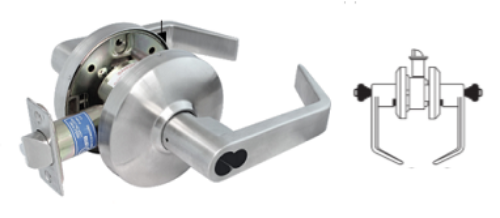

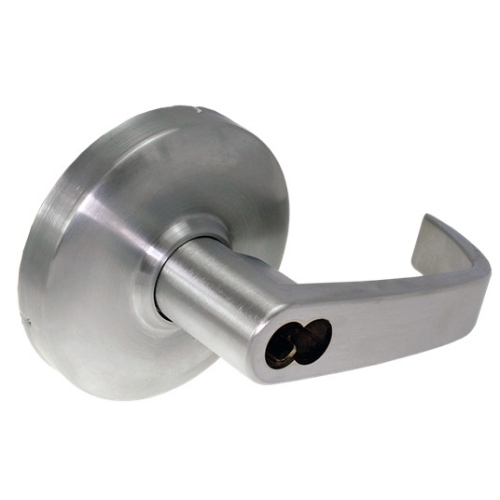

Cal-Royal YALICCGN06 Grade 1 Vestibule Lock - Accepts Yale LFIC Core

Cal-Royal YALICCGN06 Grade 1, Vestibule Lock - Accepts Yale Large-format Interchangeable Core (LFIC) (core not included)

ANSI F88

Deadlocking latchbolt operated byLeverfrom either inside except when outsideLeveris locked by key from inside, latchbolt may be retracted by key in outsideLeveror by rotating insideLever.

ANSI: A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset: UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike: ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Housing: Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore.

Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever: Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose: Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
