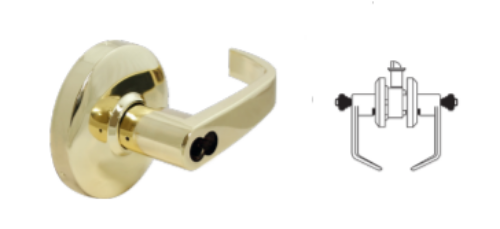

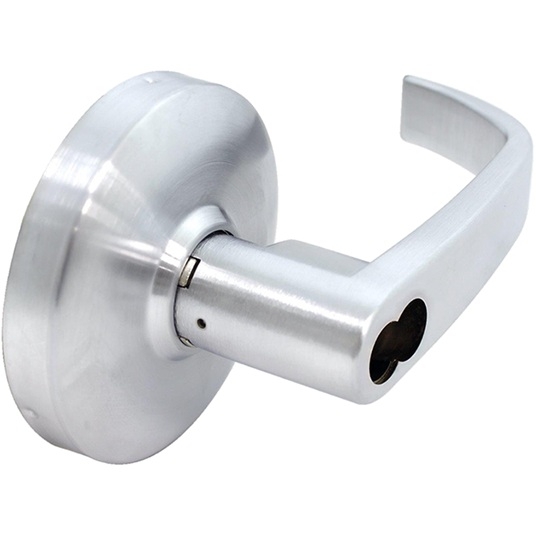

Cal-Royal YALICCSPA04 Grade 1 Communicating Lock - Accepts Yale LFIC Core

Cal-Royal YALICCSPA04 Grade 1, Communicating Lock - Accepts Yale Large-format Interchangeable Core (LFIC) (core not included)

ANSI F80

Deadlocking latchbolt operated byLeverfrom either side. Turning key in eitherLeverlocks or unlocks its ownLeverindependently.

ANSI: A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset: UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike: ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Housing: Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore.

Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever: Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose: Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
