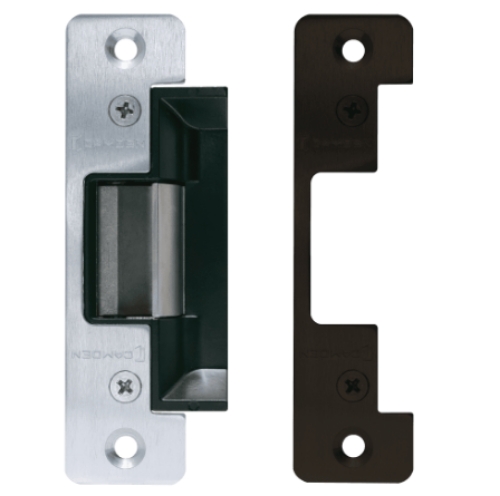

Camden CX-ED1379 Grade 1 'Universal' Electric Strike for Narrow Stile Aluminum Door Frames - 2 ANSI round face Plates

Camden CX-ED1379 Series Grade 1 'Universal' Electric Strike, 12/24V AC/DC, Fail Safe/fail Secure Operation, For Narrow Stile Aluminum Door Frames - Oil Rubbed Bronze, Satin Stainless Steel

Specifically designed for narrow stile aluminum door frames and maximizes latch protection in store front retail commercial door applications.

Features:

• Ideal for cylindrical or spring latch locksets in wood, hollow metal or aluminum frames.
• CX-ED1379 includes two ANSI round faceplates.
• Selectable Fail Safe/Fail Secure.
• Selectable 12/24V, AC/DC.
• 1/2 to 5/8 Latch Projection.
• Easy Fit Connectors and Mounting Tabs Included.
• A wide selection of aluminum and dark bronze faceplates.
• 5 Year Warranty.

VOLTAGE:12/24V AC/DC. CURRENT DRAW:260mA @ 12V DC 150mA @ 24V DC. FACEPLATES:CX-ED1379: Brushed Aluminum (BHMA 628) - Dark Bronze (BHMA 710). STATIC STRENGTH: 1,500 Lbs. DYNAMIC STRENGTH:70 Ft-Lbs. ENDURANCE:1,000,000 Cycles (Factory Test), 250,000 Cycles (UL Verified)OPERATION:AC-Buzz, DC-Silent. DUTY:Continuous. DIMENSIONS:Body: 4 7/8" H x 1 11/16" W x 1 5/8" D (124mm x 43mm x 42mm).

CX-ED1379 - Grade 1 'Universal' Electric Strike, 12/24V AC/DC, fail safe/fail secure operation with. (1) CX-ESF-2 ANSI Round Faceplate - Brushed Aluminum finish. (1) CX-ESF-2BZ ANSI Round Faceplate - Dark Bronze finish.
