Camden CX-ED1579L Grade 1 'ALL IN ONE' Fire Rated Electric Strike

Camden*CX-ED1579L*Grade 1 Electric Strike, 12/24 VDC/AC, {3} Hour Fire Rated, Fail Safe/Fail Secure, 3/4" Latch Projection, Latch Monitoring, For Use with Mortise and Cylindrical Locks, Satin Stainless Steel Finish

CX-ED1579L:Grade 1 'All In One' fire rated strike, 12/24V AC/DC, for mortise and cylindrical locksets.

FEATURES

- For mortise and cylindrical locksets.

• 3/4 (19mm) latch projection (throw).

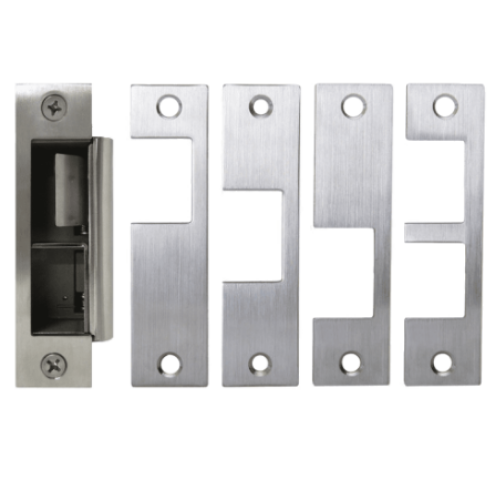

• 5 stainless steel faceplates included.

• Selectable fail safe/fail secure operation.

• Selectable 12/24V AC/DC.

• Latch monitoring.

• Non-Handed, LH/RH.

• Easy Fit connectors for power and monitoring wires.

• Stainless steel strike body.

• 5 year warranty.

Faceplates: Included  CX-EMP-1 - Stainless faceplate for Sargent, Schlage & Yale Mortise Locksets.  CX-EMP-2 - Stainless faceplate for Arrow, Corbin, & Best mortise locksets.  CX-EMP-3 - Stainless faceplate for centerline mortise or cylindrical locksets.  CX-EMP-4 - Stainless faceplate for mortise locksets with deadbolt.  CX-EMP-5 - Stainless faceplate all mortise locks that include both latch & deadbolt.

SPECIFICATIONS

Voltage: 12/24V AC/DC.

Current Draw: 260 mA @ 12V AC/DC. 150 mA @ 24V AC/DC.

Static Strength: 1,500 Lbs.

Dynamic Strength: 70 Ft-Lbs.

Mode: Fail-Safe/Fail-Secure, Field Selectable.

Operation: AC - Buzz - DC - Silent.

Duty: Continuous (DC).

Mounting: Non-Handed.

Endurance:  1,500,000 Cycles (Factory Tested). 250,000 Cycles (Ul Verified).

Fire Rating: UL10C/Can4-S104 - 3 hour (fail secure only).

Latch Bolt Monitor: SPDT, 100 mA @ 24 VDC.

Dimensions: 4-7/8"H x 1-1/4"W x 1-3/4"D (124mm x 32mm x 45mm).
