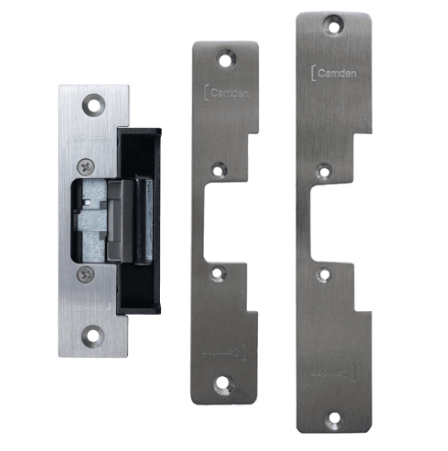

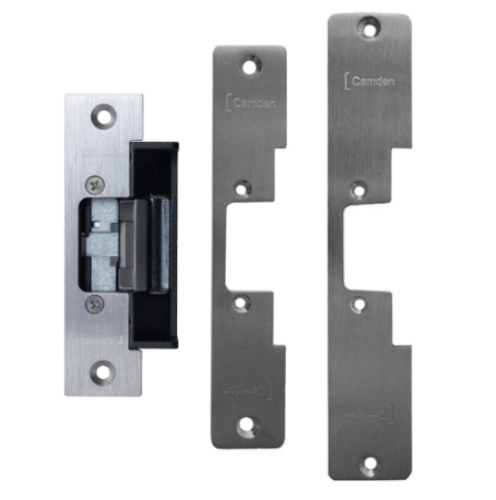

Camden CX-ED2079 Grade 1 'Universal' Low Profile Gr. 2 Electric Strike

Camden CX-ED2079 Grade 1 Low Profile Electric Strike, 12/24 VDC/AC, Fail Safe/Fail Secure, 5/8" Latch Projection, Includes Multiple Faceplates, For Cylindrical Locks, Satin Stainless Steel Finish

CX-ED2079: 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B).

FEATURES

• Centerline latch entry for cylindrical locksets, 1/2" to 5/8" latch projection.

• CX-ED2079: Selectable 12/24V AC/DC.

• Selectable fail safe/fail secure operation.

• Horizontal adjustibility of strike body.

• 3 stainless steel faceplates included: ANSI square, ANSI hollow metal and wood door frame.

• Low profile strike body.

• 5 year warranty.

Faceplates: Included  Faceplates: Included. CX-ESP1B - ANSI Square, 4 7/8" x 1 1/4", stainless steel.  CX-ESP3B - Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel. CX-ESP4B - Wood Door, 7 15/16" x 1 7/16" , stainless steel.

SPECIFICATIONS

Voltage: 12/24V AC/DC.

Current Draw: 300 mA @ 12 VDC,150 mA @ 24 VDC.

Static Strength: 1,000 Lbs.

Dynamic Strength:  50 Ft-Lbs.

Mode: Selectable fail safe fail secure.

Operation: AC - Buzz - DC - Silent.

Duty: Continuous.

Mounting: Non-Handed.

Endurance: 250,000 Cycles (Ul Verified).

Dimensions: 3-3/8"H x 1-7/8"W x 1-7/32"D (86mm x 47mm x 31mm).
