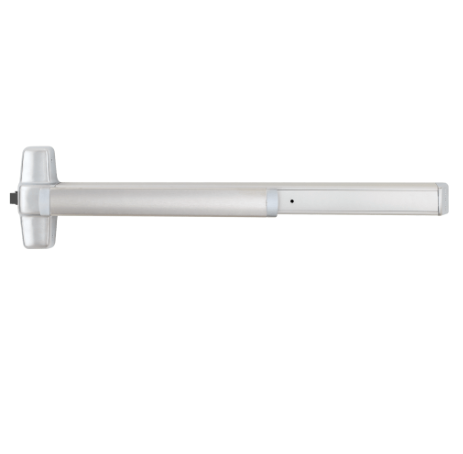

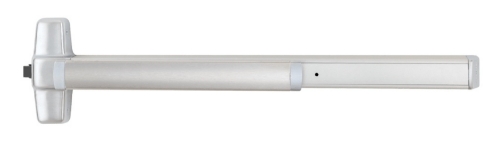

Von Duprin HH98EO / HH99EO Rim Panic Exit Device - Hurricane Rated

Von Duprin HH98EO / HH99EO Rim Panic Exit Device - Hurricane Rated

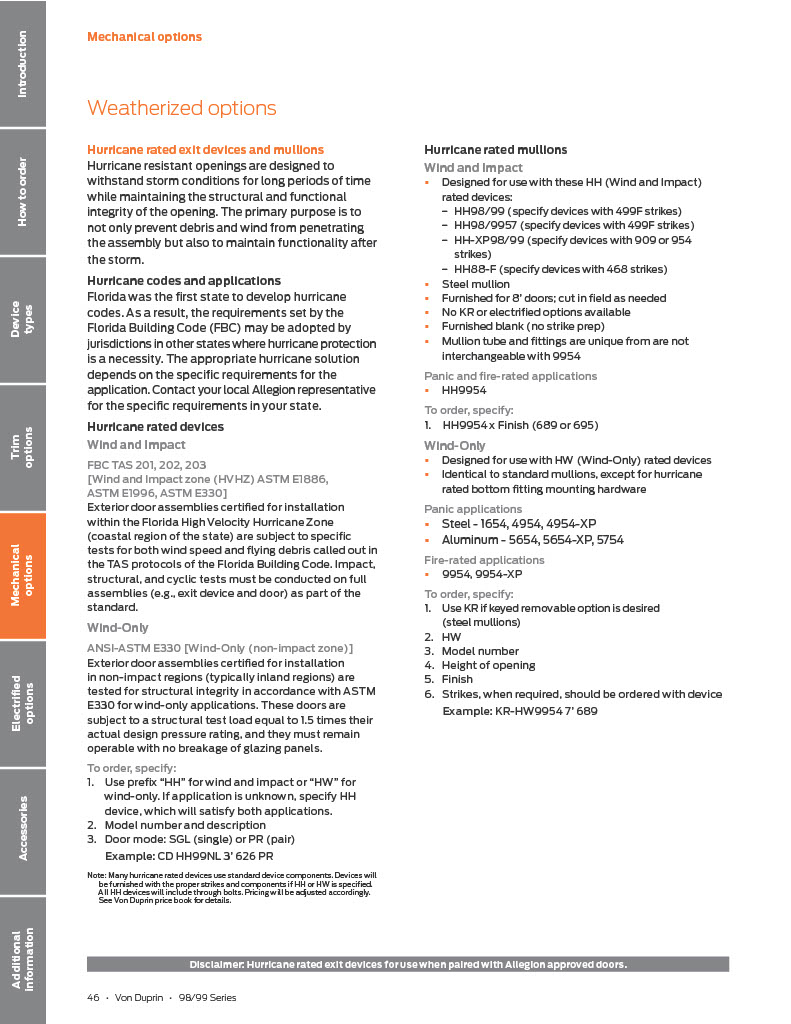

Hurricane rated exit devices and mullions Hurricane resistant openings are designed to withstand storm conditions for long periods of time while maintaining the structural and functional integrity of the opening. The primary purpose is to not only prevent debris and wind from penetrating the assembly but also to maintain functionality after the storm.

Devices are ANSI A156.3 2001 Grade 1

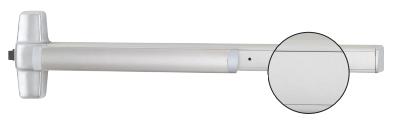

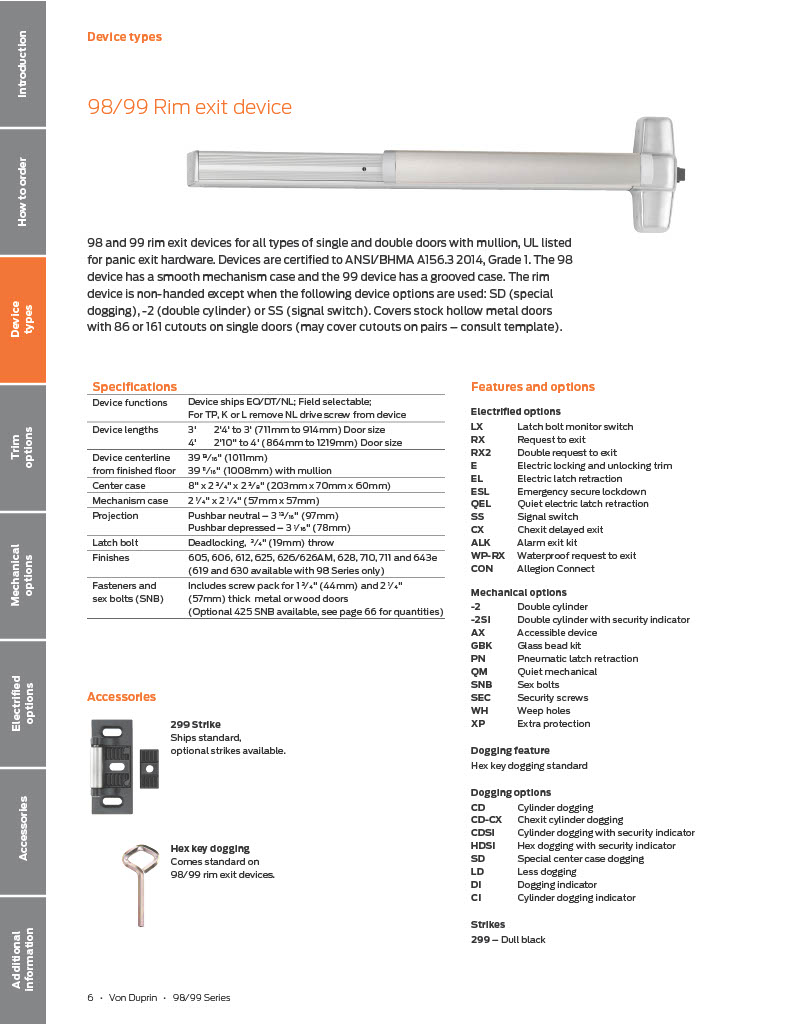

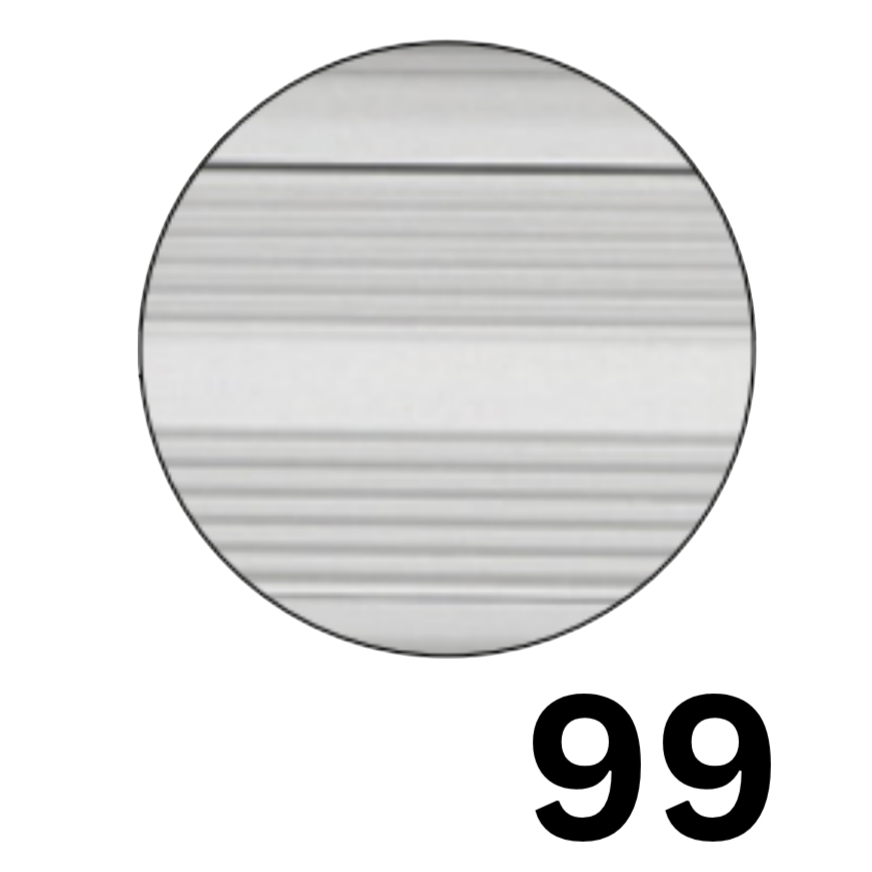

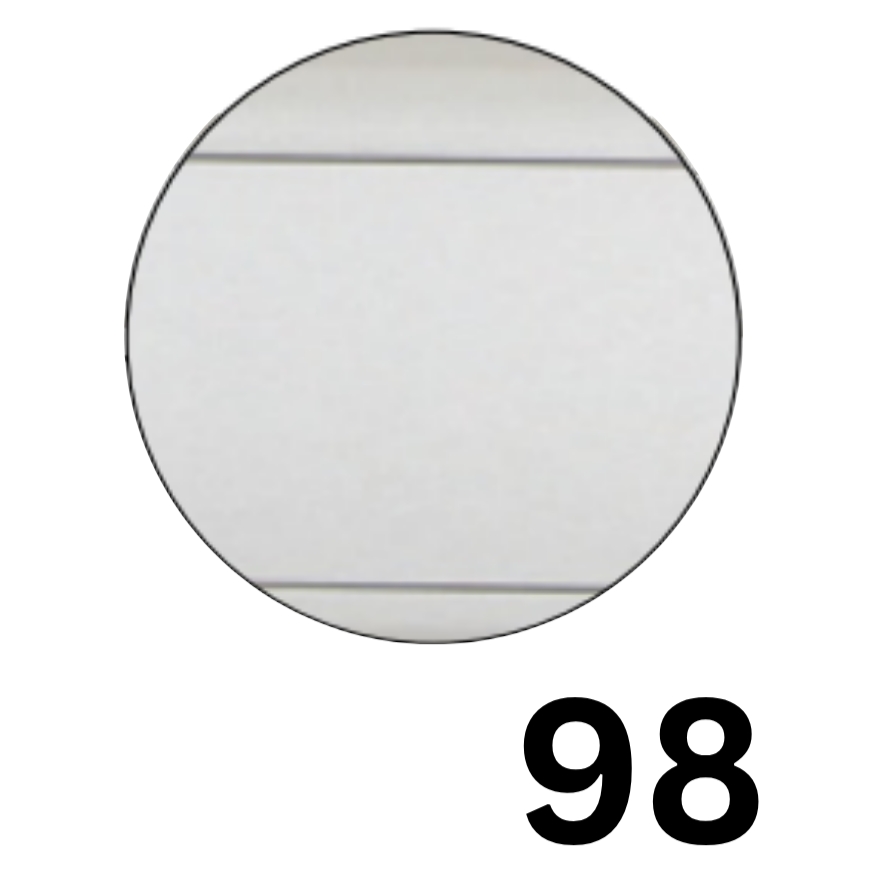

The 98-F device has a smooth mechanism case and the 99-F device has a grooved case.

No Mechanical Dogging

Latch Bolt:3/4" (19mm) throw latch bolt

Strike:Device is furnished with standard 299F strike in dull black finish

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available for metal doors. 425 & 825 SNB required on wood doors without SLM blocking

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel available with 98 Series only.

Dimensions:

Device lengths:3' 2'4' to 3' (711mm to 914 mm) Door Size  -   4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-13/16" (1011 mm)  -  39-11/16" (1008 mm) with Mullion.

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Projection:Pushbar Neutral 3-13/16" (97 mm)  -  Pushbar Depressed 3-1/16" (78 mm).

Model: Von Duprin 98-F, 99-F, 98EO-F, 99EO-F, 98/99-F, 98/99EO-F, 98F, 99F, 98EOF, 99EOF, 98/99F, 98/99EOF, RX98F, RX99F, RX98EOF, RX99EOF, ALK98F, ALK99F, ALK98EOF, ALK99EOF, US3, US4, US10, US10B, US26, US26D, US28, US32D
