Camden CX-EMF-2 Multi-Function Relay

**Camden CX-EMF-2 Multi-Function Relay, 12/24 VDC/AC, Includes (7) Dry/(5) SPDT Relays, 1-30 Second Timer Options, Microprocessor Control, Double-Sided Foam Tape Mounting

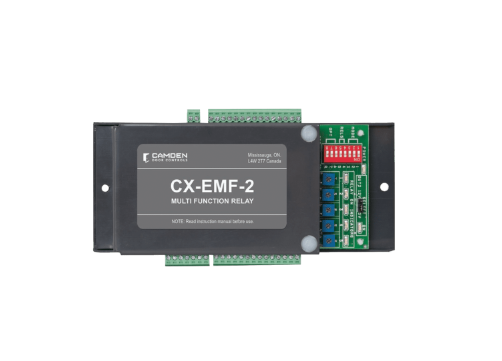

**EMF-2 is Camden's most sophisticated door control relay and is designed to easily and quickly support a variety of specialized door-control applications. A dedicated 12V/5V LED output suitable for an illuminated "Occupied" sign is also provided. Also available in secure lockable metal cabinet versions (EMF-2M or EMF-2ABM) suitable for wall mounting.

Applications: Advanced automatic door and security control including ATM Vestibule Control (Banks), two-door unsecured washroom in shared-use facility, 2 or 3 door Airlock (with auto-crossing), 2 to 5 door Airlock and 2 door Mantrap. Used where 'Assistance Required' input/output required in restroom applications.

This smart new design allows for future development by utilizing expandable technology and reprogrammable IC's. All wiring connections and adjustments are made on the exterior of the plastic case with removable terminals to facilitate installation. Simple yet effective potentiometers enable settings to meet varied requirements. A power LED, 1 status LED, and five relay LEDs aid in set-up and troubleshooting. Also available is the option of a metal cabinet with lighted control switches.

Features

• Microprocessor Control.

• User Selectable Multi-Application Design.

• Plug-in Connectors for Wiring.

• Accepts up to 7 Dry Inputs.

• 5 Form 'C', 3 Amp Relay Outputs.

• 12/24V AC/DC Operation.

• 3 Year Warranty.

SPECIFICATIONS

VOLTAGE:12/24V AC/DC.

CURRENT DRAW:150mA @ nominal 500mA @ maximum.

RESPONSE TIME:0.3 seconds.

MODE SELECTOR:via 3 dipswitches.

INPUTS:7 Dry Contacts, 1 Digital Input.

OUTPUTS:5 SPDT Relays, 1 Digital Output.

FIRMWARE:Version A1-001.

CONTACT RATING:3 Amps @ 20 VDC.

TIME DELAYS:5 pots, adjustable 1 - 30 seconds (depending on mode).

ELECTRICAL LIFE:100,000 operations @ rated or 500,000 operations @ 1/2 rated capacity.

MOUNTING:EMF-2: Double-sided foam tape or (2) #6 screws.

ENCLOSURE:EMF-2: Formed Plastic Housing.

DIMENSIONS:EMF-2: 3" W x 7" H x 7/8" D (76 mm x 178 mm x 22 mm).

CX-EMF2 Camden, Camden CX-EMF2, CamdenCX-EMF2, CX-EMF2, CX-12 PLUS, CXEMF2S, CX-EMF2 Camden,

Camden has combined the industry leading features of our CX-12 Switch Network, including easy system interconnection, and our CX-22 Dual Function Relay, providing bi-directional door sequencing and basic restroom control.

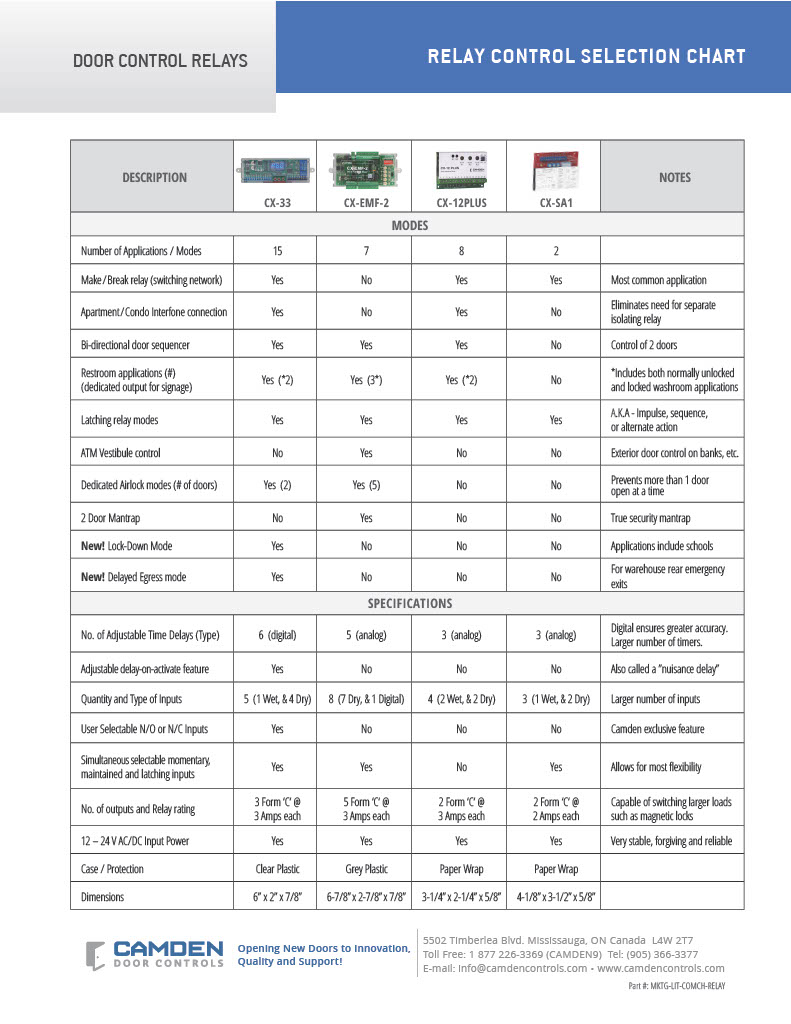

CX-12 Plus Door Interface Relay has 8 programming modes with (3) adjustable time delays, each up to 30 seconds. There are (2) Dry and (2) Wet inputs, with (2) SPDT Form 'C' outputs.

The release of CX-12 Plus Door Interface Relay makes CX-12 and CX-22 model relays obsolete. Please contact Camden customer service for assistance with any questions or concerns you may have.
