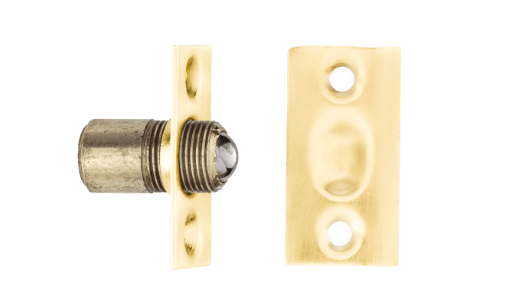

Ives 345 Adjustable Ball Catch

Ives 345 Adjustable Ball Catch

Ideal for cabinets and small interior doors.

Free rolling ball insures smooth, positive and trouble-free action.

Adjustable threaded barrel compensates for various door clearances.

Adjustable spring tension.

Made from wrought brass.

Dimensions

Face Plate: 3/4" Wide x 1-1/2" High

Bore: 1" Deep x 9/16" Diameter

Strike: 25/32" Wide x 1-1/2" High, Lip to center- 13/32"

Finishes: B3 - Brass Material - Bright Brass (605)  B5 - Brass Material - Antique Brass (609)  B10 - Bronze Material - Satin Bronze (612)  B10B - Bronze Material - Oil Rubbed Bronze (613)  B15 - Brass Material - Satin Nickel (619)  B26 - Brass Material - Polished Chrome Plated (625)  B26D - Brass Material - Satin Chrome Plated (626)

Model: 345B3, 345B5, 345B10, 345B10B, 345B15, 345B26, 345B26D
