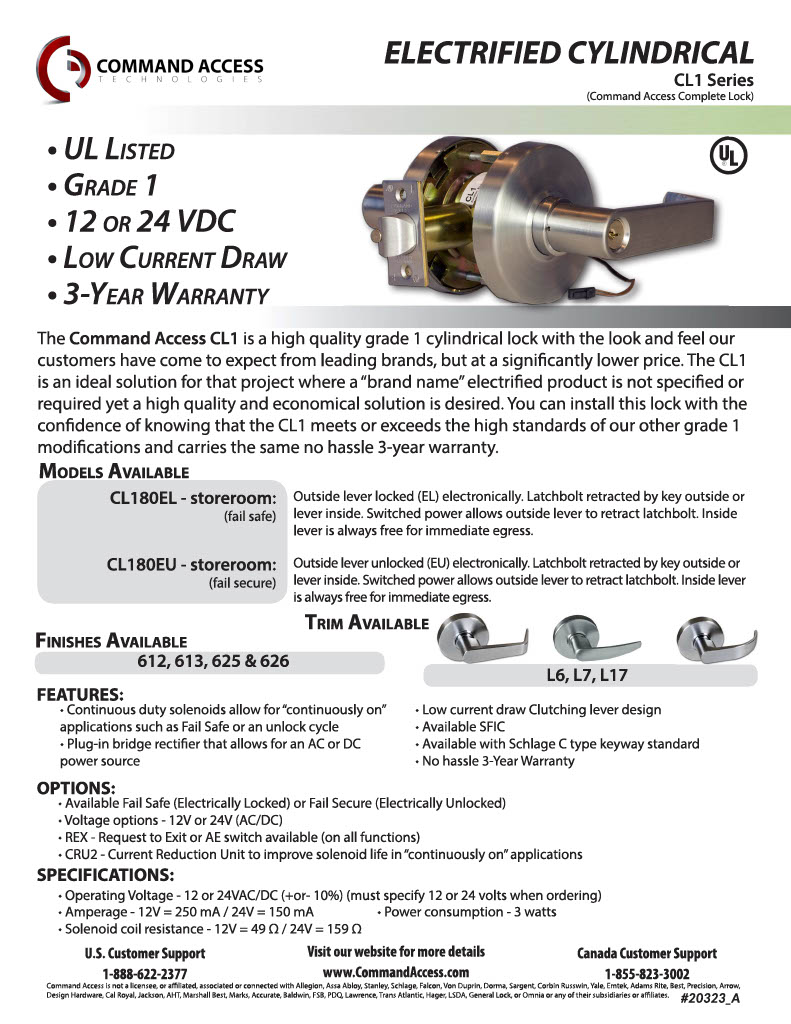

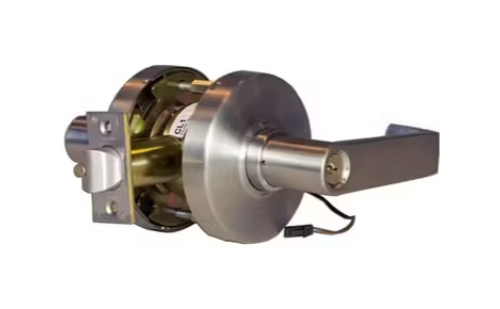

Command Access CL180EL L6 626 Electrified Cylindrical Lock, Fail Safe, L6 Lever, Schlage C Keyway, Satin Chrome

Command Access CL180EL L6 626 Electrified Cylindrical Lock, Fail Safe, L6 Lever, Schlage C Keyway, Satin Chrome

CL93DEU - storeroom: (fail Safe) Outside lever locked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

• UL Listed
• Grade 1
• 12 or 24 VDC
• Low Current Draw
• 3-Year Warranty

FEATURES:

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source

SPECIFICATIONS:

• Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage - 12V = 250 mA / 24V = 150 mA
• Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
• Power consumption - 3 watts
