Command Access CL180LEEL L6 613 Electrified Low Energy Cylindrical Lock, Fail Safe, L6 Lever, Oil Rubbed Bronze

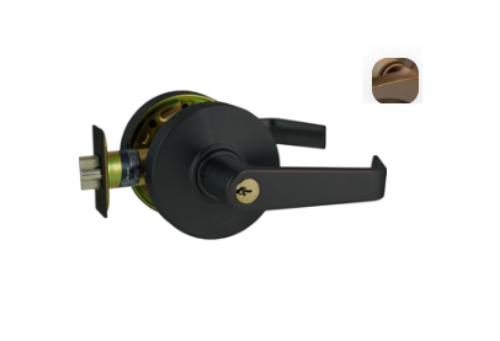

CL180613

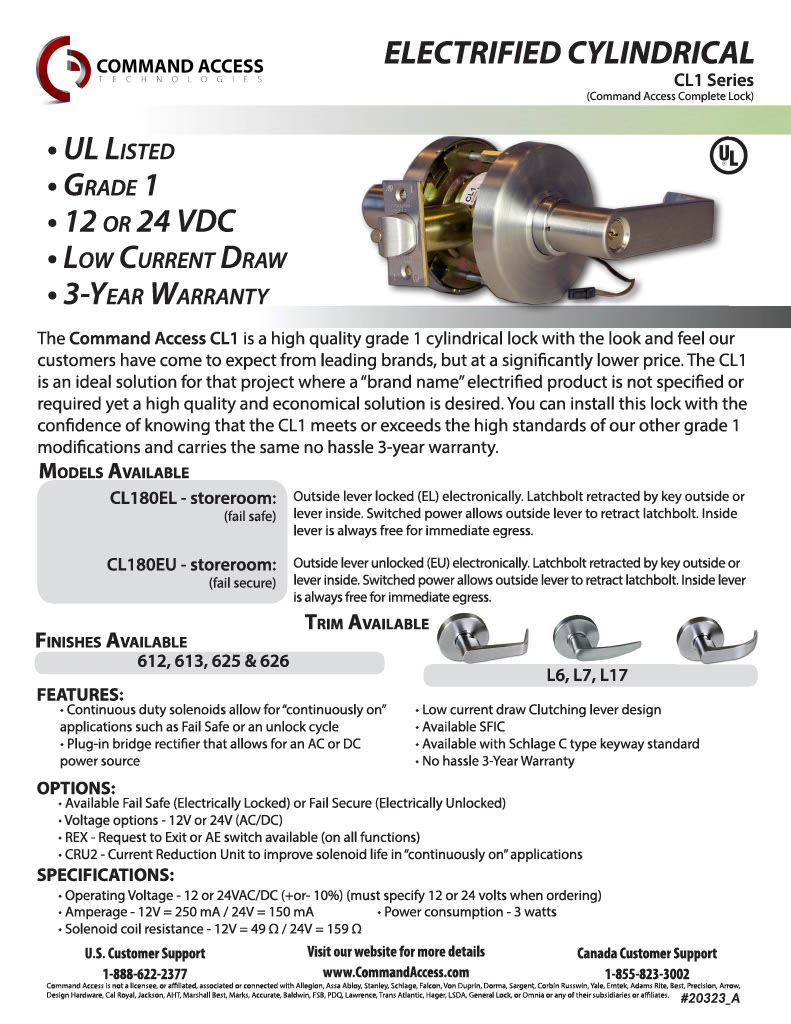

1-Page1-ELECTRIFIED
CL180613
1-Page1-ELECTRIFIED
naxt
prev

Product Details

Command Access CL180LEEL L6 626 Electrified Low Energy *Cylindrical Lock, Fail Safe, L6 Lever, *Oil Rubbed Bronze

CL180LE-EL  - Outside lever locked (EL) electronically.  - Latchbolt retracted by key out-side or lever inside.  - Switched power allows outside lever to retract latchbolt. - Inside lever is always free for immediate egress

SPECIFICATIONS:

Voltage: - Operating Voltage - 11-30 VDC - Surge Current: 400 mA @12V, 200 mA @ 24V - Holding Current: 30 mA - Specify Fail Safe (EL) or Fail Secure (EU)

Accessories:-  2-3/8" backset available

Features:- Low maximum current draw 400 mA (12V): use more locks on a single power supply.  Additonal savings for the owner - Low holding current 30 mA : reliable operation and meets sustainable consideraton - Fail Safe (EL) & Fail Secure (EU) available; not field selectable - Multiple lever styles available - Available SFIC or LFIC (Schlage): Cylinder not included - Available with Schlage C type keyway standard

Command Access CL180LEEL L6 613 Electrified Low Energy Cylindrical Lock, Fail Safe, L6 Lever, Oil Rubbed Bronze

SKU: CL180LLEEL6613

In Stock
Picture for manufacturer Command Access
icon Chat

$305.50

Cylinder *

Voltage *

Backset *

2-3/4" Backset
2-3/4" Backset
2-3/8" Backset
2-3/8" Backset

Strike *

ANSI Strike - 4-7/8"
ANSI Strike - 4-7/8"
T Strike - 2-3/4"
T Strike - 2-3/4"

Keying *

About this item

The Command Access CL180 LE series is a low-energy, cost effective cylindrical lock that is ideal for any continuous duty application or condition requiring low surge and hold current. Its unique electronics allow the CL180LE to function much like a motor-driven lockset without the potental problems inherent in motors. The CL180LE will operate with an input voltage between 11-30 volts, eliminating the need to inventory 12 and 24V models. The CL180LE features a standard Built-in Request to exit (REX/AE) switch.

Resources

Command Access CL180LEEL L6 626 Electrified Low Energy *Cylindrical Lock, Fail Safe, L6 Lever, *Oil Rubbed Bronze

CL180LE-EL  - Outside lever locked (EL) electronically.  - Latchbolt retracted by key out-side or lever inside.  - Switched power allows outside lever to retract latchbolt. - Inside lever is always free for immediate egress

SPECIFICATIONS:

Voltage: - Operating Voltage - 11-30 VDC - Surge Current: 400 mA @12V, 200 mA @ 24V - Holding Current: 30 mA - Specify Fail Safe (EL) or Fail Secure (EU)

Accessories:-  2-3/8" backset available

Features:- Low maximum current draw 400 mA (12V): use more locks on a single power supply.  Additonal savings for the owner - Low holding current 30 mA : reliable operation and meets sustainable consideraton - Fail Safe (EL) & Fail Secure (EU) available; not field selectable - Multiple lever styles available - Available SFIC or LFIC (Schlage): Cylinder not included - Available with Schlage C type keyway standard

CL180613
Command Access CL180LEEL L6 613 Electrified Low Energy Cylindrical Lock, Fail Safe, L6 Lever, Oil Rubbed Bronze

Product code: CL180LLEEL6613

In Stock

$428.00

$305.50

CL180613
Command Access CL180LEEL L6 613 Electrified Low Energy Cylindrical Lock, Fail Safe, L6 Lever, Oil Rubbed Bronze

Product code: CL180LLEEL6613

In Stock

$428.00

$305.50
