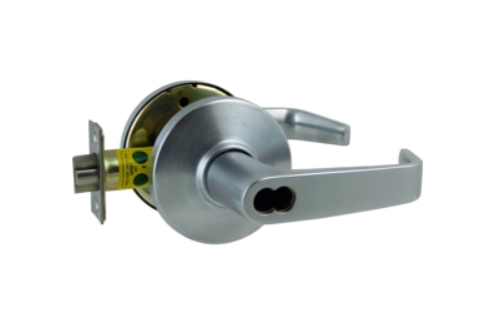

Command Access CL93DEU 15D 626 12V/24V Grade 1 Electric Cylindrical Lock, Fail Secure, 15D Design, SFIC Prep, Satin Chrome

Command Access CL93DEU 15D 626 12V/24V Grade 1 Electric Cylindrical Lock, Electronically Unlocked, Fail Secure, 15D Design, SFIC Prep, Less Core, Satin Chrome

CL93DEU - storeroom: (fail secure) Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

• UL Listed
• Grade 1
• 12 or 24 VDC
• Low Current Draw
• 3-Year Warranty

FEATURES:

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Low current draw

SPECIFICATIONS:

• Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage - 12V = 250 mA / 24V = 150 mA
• Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
• Power consumption - 3 watts
