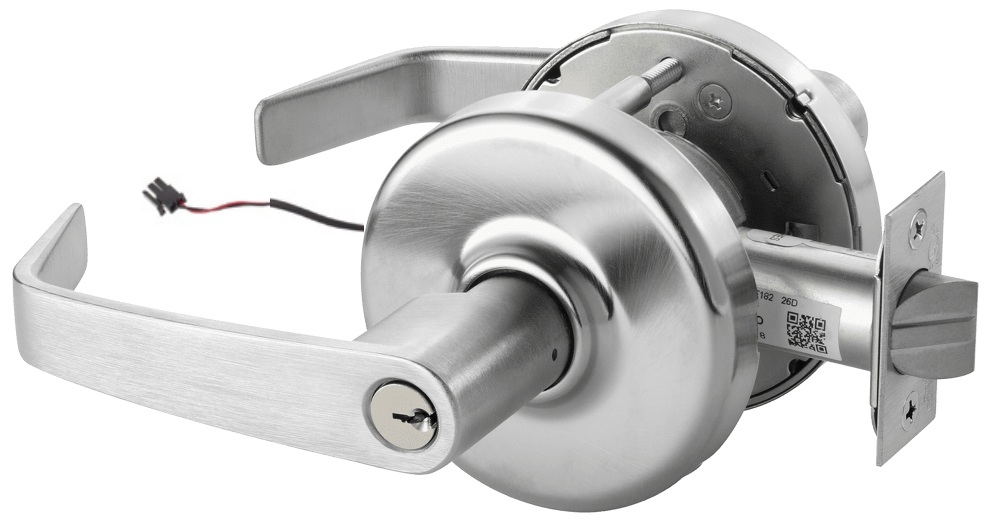

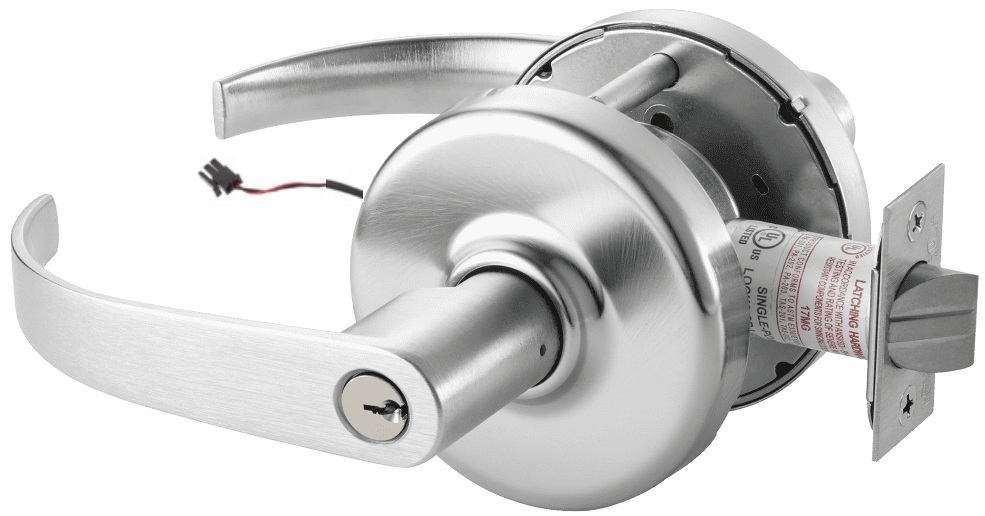

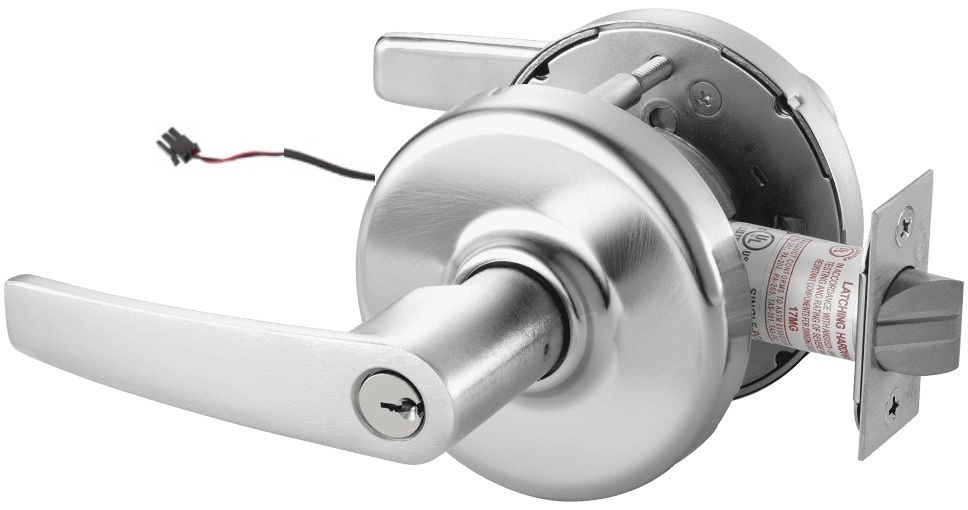

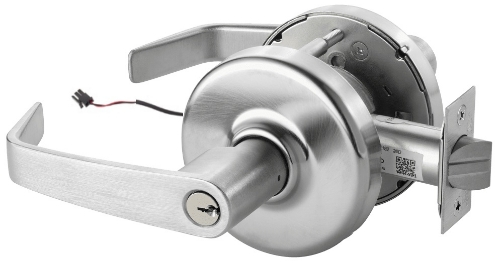

Corbin Russwin CLX33905 Grade 1 Electromechanical Cylindrical Lock, Fail Secure

Corbin Russwin CLX33905 Electrified Lockset - Fail Secure

Selectable voltage output between 12V and 24V with a single switch

Electrified Lockset - Fail Secure

• Deadlocking latchbolt by lever either side except when power off locks outside lever
• Power on/unlocks outside lever
• Inside lever always free
• Latchbolt retracted by key when power is off

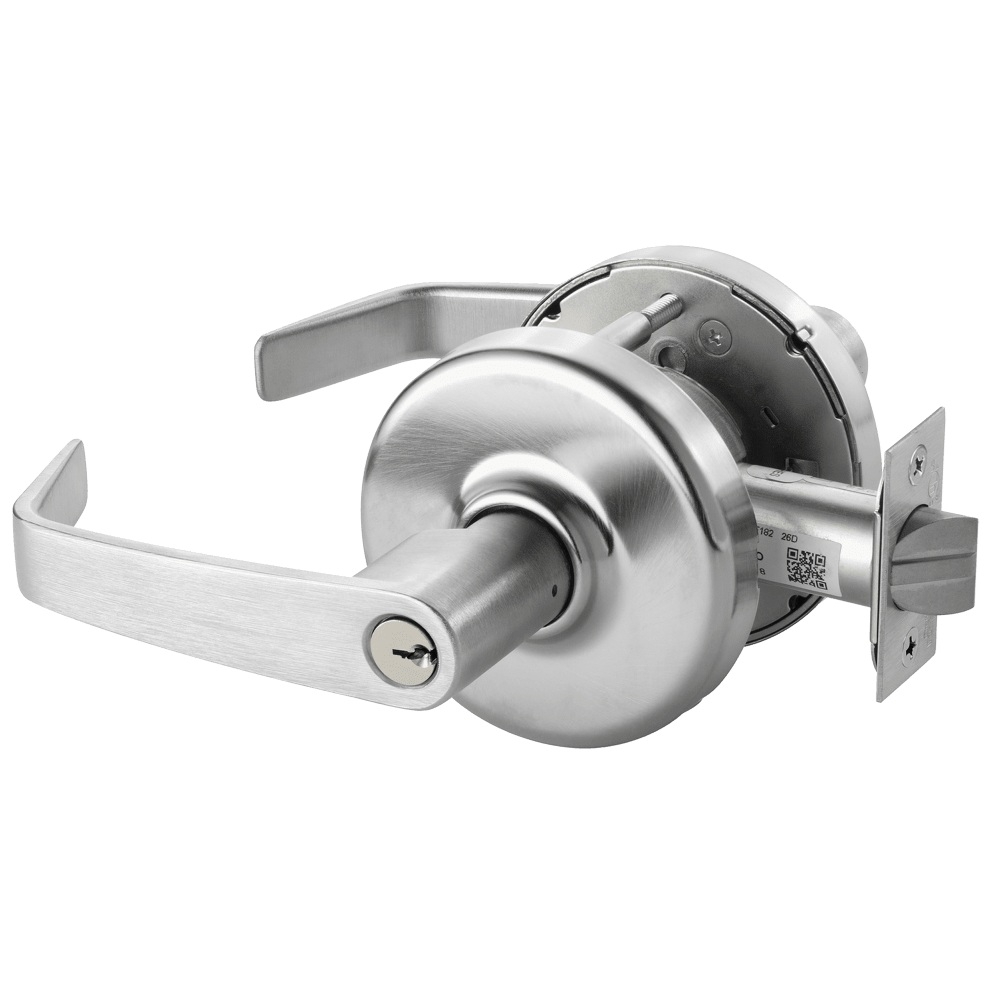

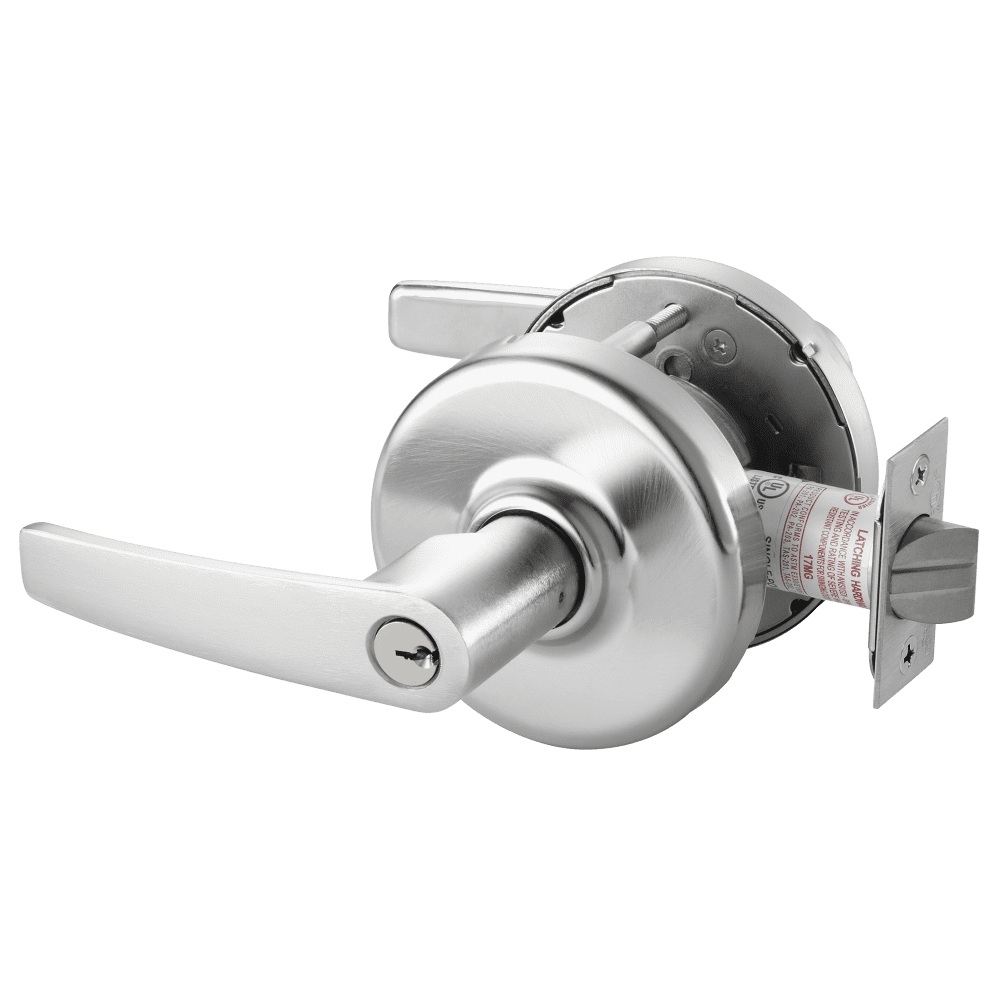

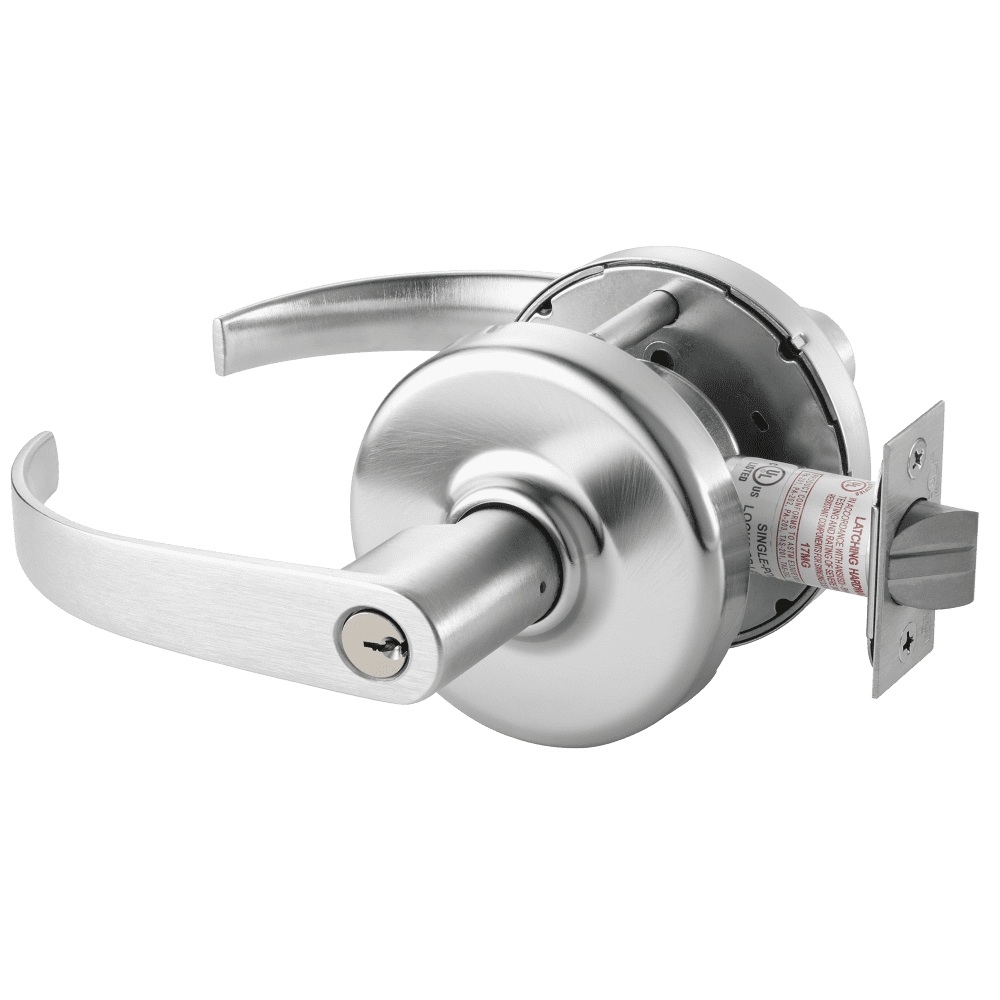

Levers Styles: Armstrong, Newport and Princeton Lever

Door Prep: ANSI/SDI A250.14

Door Thickness: 1-3/4" - 2" (44mm - 51mm)

Minimum Stile: 4-1/2" (114mm)

Handing: Non-handed

Backset: 2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)

Latchbolt: Stainless steel, 1/2" (13mm) throw

Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8" (57mm x 29mm) standard for 2-3/4" (70mm)

Accommodates flat doors and doors beveled 1/8" in 2" (3mm in 51mm)

Strike: Wrought brass or stainless steel, ANSI curved lip standard, 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center

Cylinder: Brass, 6-pin L4 keyway

Keys: Two nickel silver standard

Voltage Accommodates 12VDC or 24VDC (Operating range 10.2VDC to 26.4VDC). Lock is polarity sensitive.

Electrical Specifications
Current draw: 10mA @ 12VDC or 24VDC Continuous
Peak current draw: 500mA @ 12VDC or 24VDC (Maximum of 2 locks per 1A Power Supply)
Monitor switch rating: 500mA Max to 24VDC

Electrical Options: Request to Exit switch for monitoring activation of the inside lever (specify Quick Code M92)

Operating Temperature -13°F (-25°C) to 151°F (66°C)

Operating Humidity 5% to 95% relative humidity non condensing

ElectroLynx® Provided with 8-pin molex connector

Warranty Two-year limited

Features
• Internal Back-Up battery charging circuit
• Regulated and filtered, fuse protected outputs
• Each output can be individually turned on and off via a jumper
• Power status of each output is shown by an LED
• Rugged steel enclosure
• Fire alarm interface included – Dry contacts NO/NC, 9-33VDC,
3-15mA
Electrical Specifications
• Inputs: 120VAC
• Outputs: 12VDC @ 6 Amp or 24VDC @3 Amp
– 8 Total Outputs
Listings
• UL294, UL603, UL1076
• ULC S318, ULC S319
