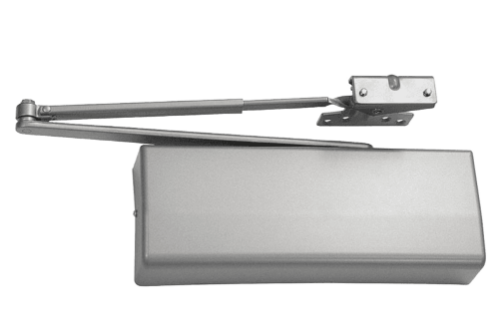

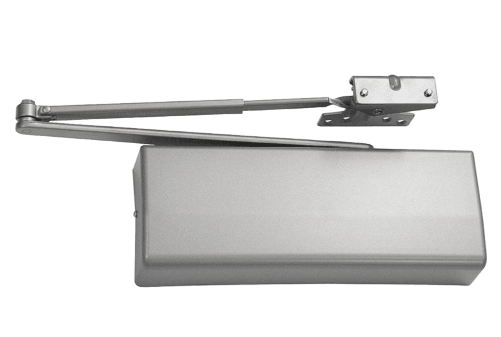

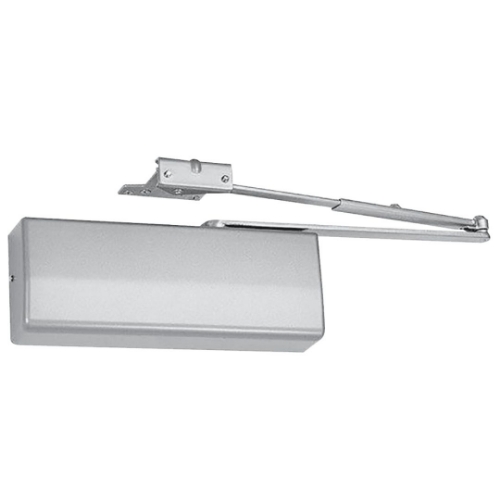

Corbin Russwin DC8210 689 M54 Extra Heavy Duty Closer - Aluminum Finish

Corbin Russwin DC8210 689 M54 Extra Heavy Duty Closer - Aluminum Finish

Universal Quik-Installmounting bracket standard.

Reduces installation time Ensures correct mounting

Bracket is first mounted to door or frame, then closer is attached

Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)

Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

Features

Spring Power: DC8200 closers: multi-sized; fully adjustable sizes 1 through 6.

**Handing:**Non-handed.

**Valves*

*Latching speed valve standard.

Closing speed valve standard.

Backcheck valve standard.

Delayed action valve optional. Delayed action preset for 20 seconds. Between 90 D and 70 D for all mountings. To order specify M71.

**Degree of Opening :**Up to full 180opening standard for regular, top jamb and parallel arm mountings, conditions permitting.

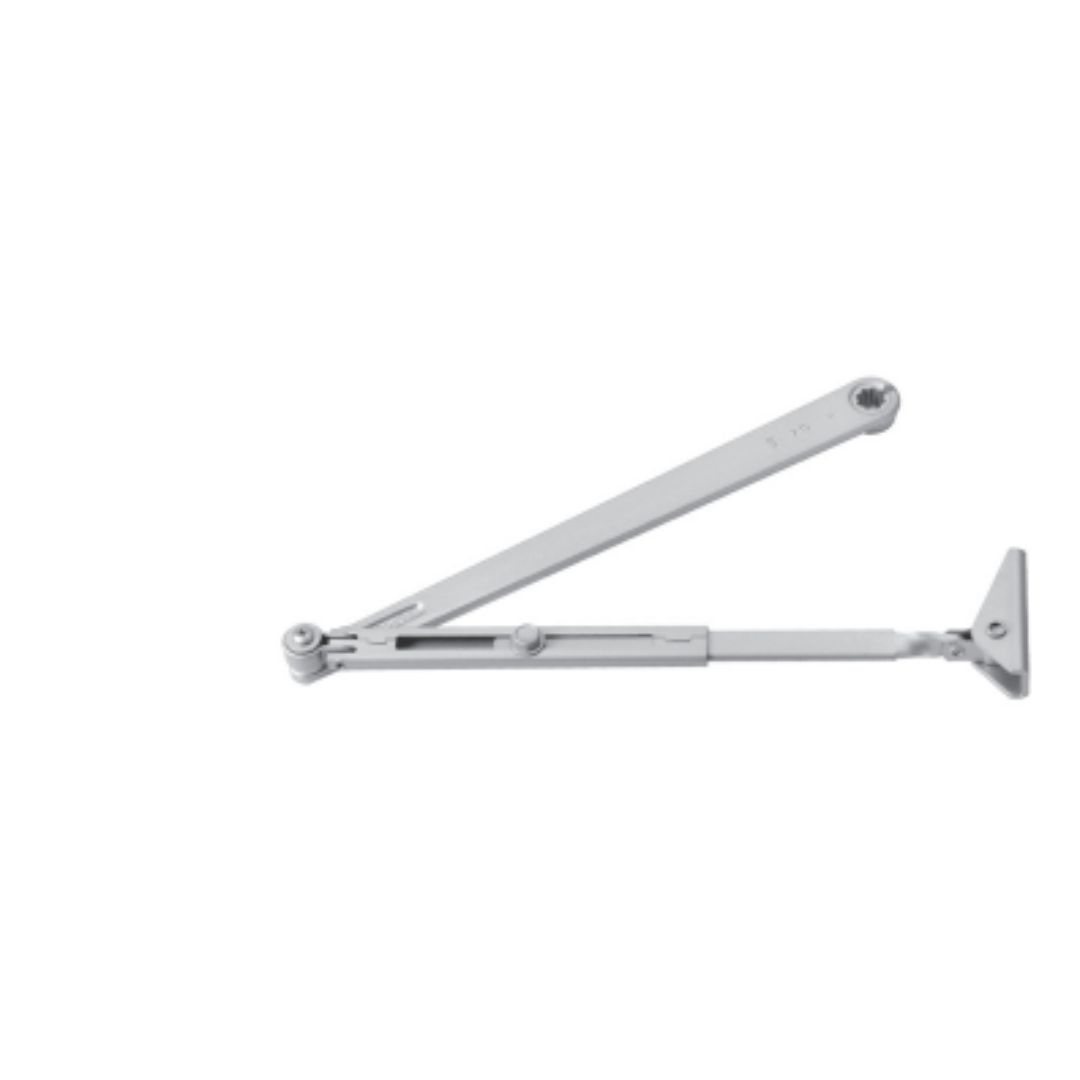

**Power Adjustment Arm Bracket:**15% adjustment standard for regular arm and top jamb (non-hold open only).

**Tri-packedDC8000 comes with screws, brackets andsoffit plates to allow for regular, top jamband parallel arm installations. **Cover :Standard: non-metallic full cover.

**Fasteners:**Self drilling and machine screws, Sex nuts and bolts (SNBs).

Warranty:Ten-year limited warranty.

Body:Cast-iron case with seamless cold headed steel spring tube.**Arm:**Standard: heavy-duty forged steel.

**Spindle:**Cold headed heat-treated steel.

**Piston:**1-1/2" diameter; Precision machined, heat-treated steel.

**Springs:**Chrome silicon wire.

Seals:"O" rings.

**Fluid:**Standard: high lubricity extreme temperature hydraulic fluid.

**Certification/Compliance

Barrier-Free Code

Compliance

**The DC8000 Series Door Closers

listed below conform to the 5 lbf.

maximum door opening force requirement

for non-fire-rated interior hinged doors,

according to:

*Americans with Disabilities Act (ADA)

*Complies with the Accessibility Guidelines

for Buildings and Facilities, Section 4.13.11

*ANSI/BHMA

*Meets A156.4, Grade 1.

Meets A117.1.

These door closers are certified by Corbin

Russwin Architectural Hardware to comply

with the above standards when properly

installed and (if applicable) adjusted, in

regular arm, parallel arm and top jamb

mountings.

*UL /ULC / UL10c

*Listed for fire and cycle requirement
