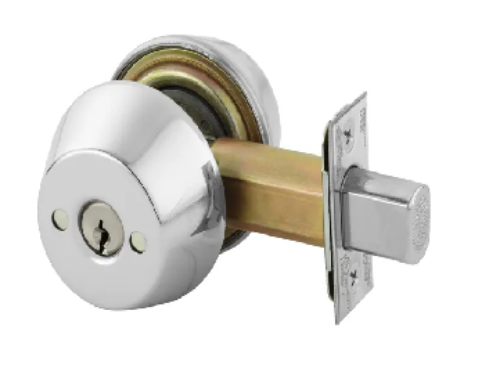

Corbin Russwin DL2217 Classroom Deadlock

Corbin Russwin DL2217 Classroom Deadlock

Classroom Deadlock  -(ANSIE0170 Series)

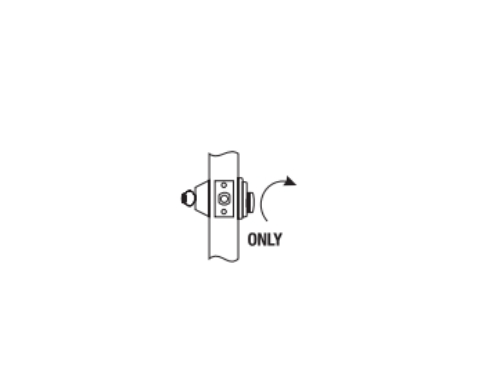

By key outside and by thumbturn inside. - Thumbturn will retract but not project deadbolt.

HandingNon-handed.

*Door Thickness*Standard: 1-3/4" (44mm).

*Backset*2-3/8" (60mm) or 2-3/4" (70mm).

*Front*Standard: wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). .

Deadbolt 1"  (25mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

StrikeStandard: wrought brass or bronze, 2-3/4" (70mm) x 1-1/8" (29mm).

CylinderStandard: brass, 6-pin, L4 keyway.

*Keys*Two nickel silver standard.

*Keying Features Available*Master keying

WarrantyOne-year limited.

**Certification/Compliance

*ANSI*DL2200 - 156.5 Grade 2
