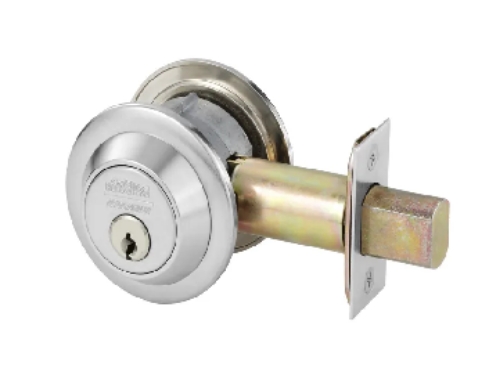

Corbin Russwin DL3012 Double Cylinder Deadlock

**Corbin Russwin DL3012 Double Cylinder Deadlock

Double CylinderDeadlock  -**(ANSIE0140 Series)

By key either side.

Handing:Non-handed.

Door Thickness:Standard: 1-3/4" (44mm) - 2-1/4" (57mm).

Backset:Standard: 2-3/4" (70mm) Optional: 23/8" (60mm)

*Front:*Standard: wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled1/8" (3mm) in 2" (51mm).

*Deadbolt:*Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x3/4" (19mm) high.

*Strike:*Standard: wrought brass or bronze, 2-3/4" (70mm) x 11/8" (29mm).

*Cylinder:*Brass, 6-pin, L4 keyway.

*Keys:*Two nickel silver standard.

*Keying Features Available:*Master keying, Interchangeable core (IC)

*Warranty:*One-year limited.
