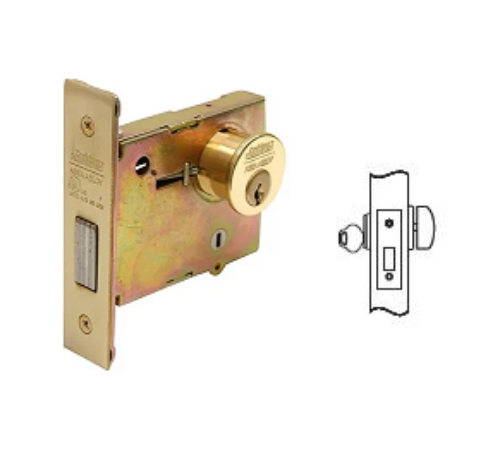

Corbin Russwin DL4117 Classroom Mortise Deadlock

Classroom -(ANSIE6090 Series)

By key outside and by thumbturn inside. - Thumbturn will retract but not project deadbolt.

Handing:Non-handed.

Door Thickness:

Standard: 1-3/4" (44mm).Backset:2-3/4" (70mm).

Lockcase:

Heavy wrought steel; zinc dichromate finish.Front:

Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm).Deadbolt:

Steel with hardened pin; 1" (25mm) throw.Strike:

Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm).Cylinder:6-pin, L4 keyway, 0-bitted.

Keys:Two nickel silver standard.

Keying Features Available:

Master keying, Interchangeable core (IC)Warranty:

One-year limited.

Certification/Compliance

*UL

*Listed for use on fire doors. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
