Corbin Russwin ED4200 Narrow Stile Rim Exit Device, Non-handed

Applications: Designed for applications on narrow stile full glass, aluminum and metal doors in high-use and high-abuse situations, ED4000 Series devices can be teamed with a variety of Corbin Russwin trims to provide desired functions, styles and finishes in new construction and renovations, including: - Schools and universities. - Health care facilities. - Government and municipal buildings. - Factories and warehouses. - Office and retail complexes. - Transportation facilities. - Hotels and conference centers. - Religious facilities. - Theaters and auditoriums.

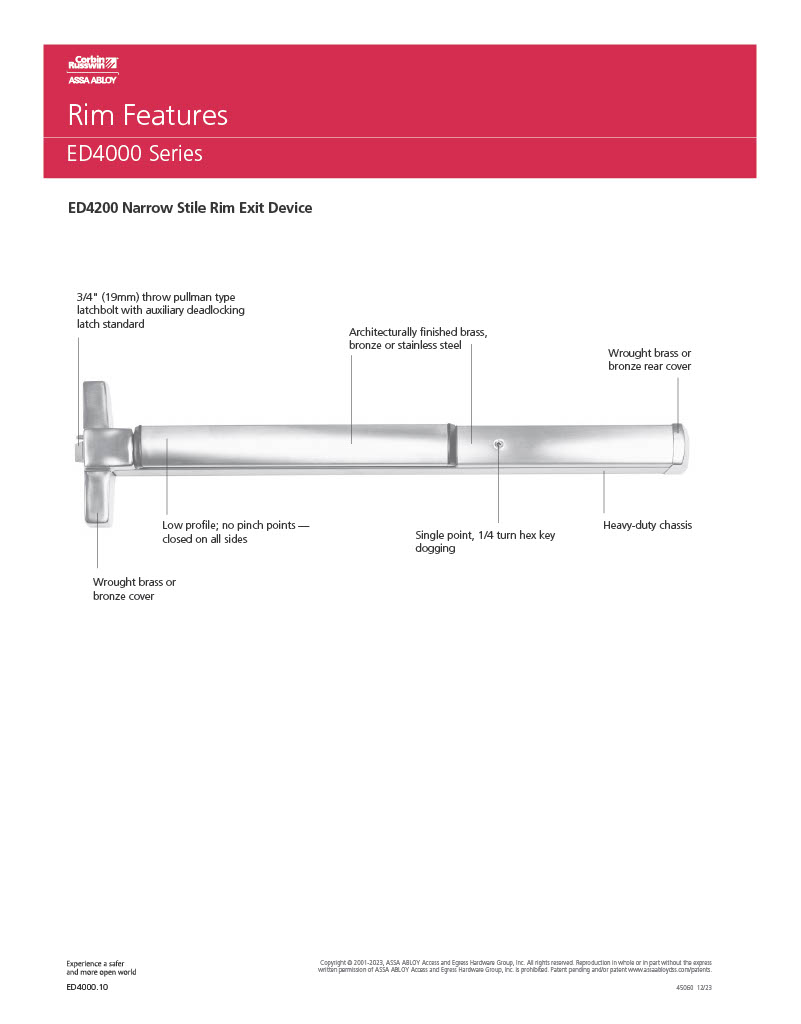

Advantages: - Meets ANSI Grade 1 requirements. - Easy-to-use pushpad for quick egress and ADA compliance. - Low projection for barrier-free code compliance. - Heavy-duty construction. - Quiet operation. - Closed on all sides. - no projecting parts to inhibit egress. - Devices accommodate various function trims for flexibility. - Through-bolted trims for strength, security, durability, smooth operation and easy installation. - Wide range of designs and finishes to match other Corbin Russwin products. - One-point dogging. - Devices satisfy UL/cUL safety requirements.

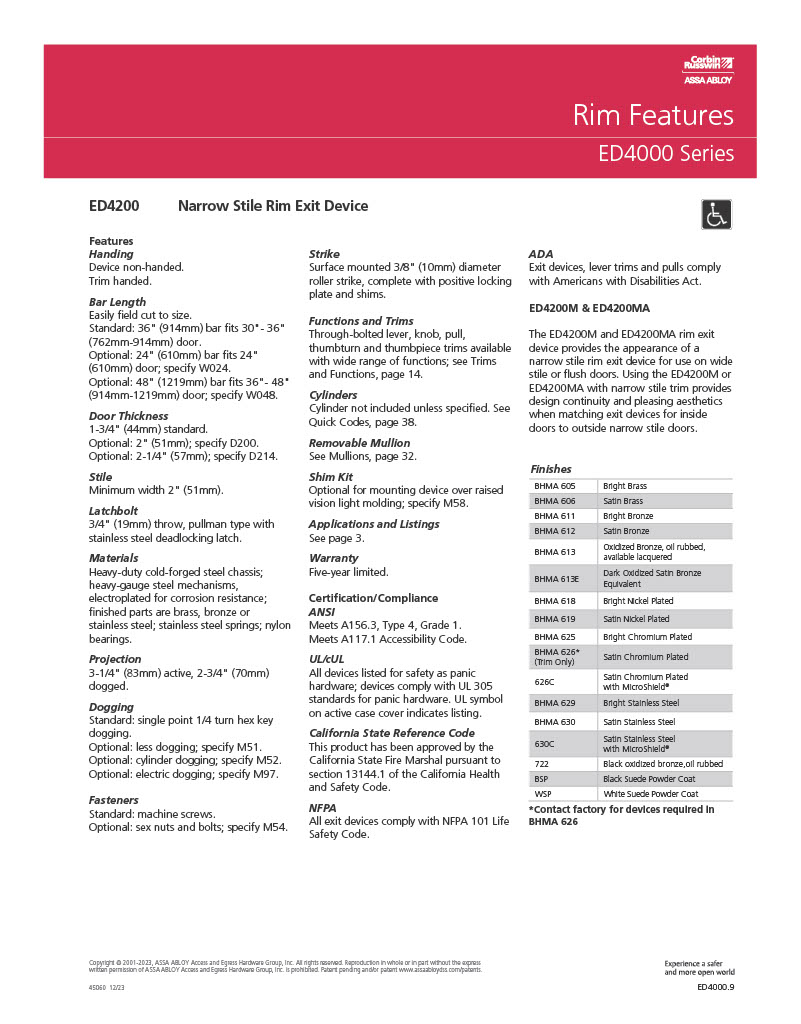

Features: Handing: Device non-handed. Trim handed. Bar Length: Easily field cut to size. Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door. Optional: 24" (610mm) bar fits 24" (610mm) door; specify W024. Optional: 48" (1219mm) bar fits 36"- 48" (914mm-1219mm) door; specify W048. Door Thickness: 1-3/4" (44mm) standard. Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214. Stile: Minimum width 2" (51mm). Latchbolt: 3/4" (19mm) throw, pullman type with stainless steel deadlocking latch. Materials: Heavy-duty cold-forged steel chassis, heavy-gauge steel mechanisms, electroplated for corrosion resistance, finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings. Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged. Dogging: Standard: single point 1/4 turn hex key dogging. Optional: less dogging; specify M51. Optional: cylinder dogging; specify M52. Optional: electric dogging; specify M97. Fasteners: Standard: machine screws. Optional: sex nuts and bolts; specify M54. Strike: Surface mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims. Functions and Trims: Through-bolted lever, knob, pull, thumbturn and thumbpiece trims available with wide range of functions. Cylinders: Cylinder not included unless specified. Shim Kit: Optional for mounting device over raised vision light molding; specify M58. Warranty: Five-year limited. Certification/Compliance: ANSI Meets A156.3, Type 4, Grade 1. Meets A117.1 Accessibility Code. UL/cUL: All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. UL symbol on active case cover indicates listing. California State Reference Code: This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. NFPA: All exit devices comply with NFPA 101 Life Safety Code. ADA: Exit devices, lever trims and pulls comply with Americans with Disabilities Act. ED4200M & ED4200MA: The ED4200M and ED4200MA rim exit device provides the appearance of a narrow stile rim exit device for use on wide stile or flush doors. Using the ED4200M or ED4200MA with narrow stile trim provides design continuity and pleasing aesthetics when matching exit devices for inside doors to outside narrow stile doors.

Corbin Russwin ED4200, ED4200 Corbin Russwin, ED4200, CorbinRusswinED4200, Corbin Russwin ED4200, ED4200 Corbin Russwin, CorbinRusswinED4200, Corbin Russwin Exit Devices

Corbin Russwin ED4200 Narrow Stile Rim Exit Device, Non-handed

Name: Corbin Russwin ED4200 Narrow Stile Rim Exit Device, Non-handed
SKU: ED4200
Price: 1764.95 USD
Availability: InStock

SKU: ED4200

In Stock

Chat

$1,764.95

About this item

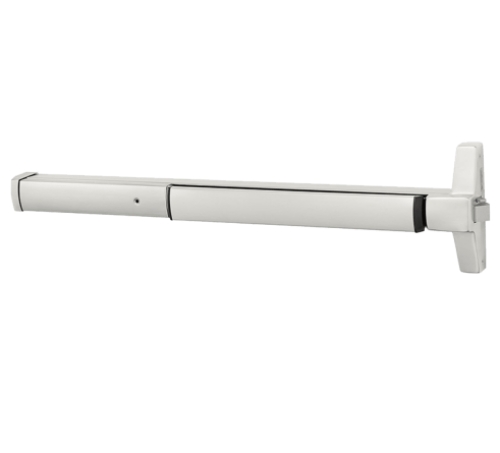

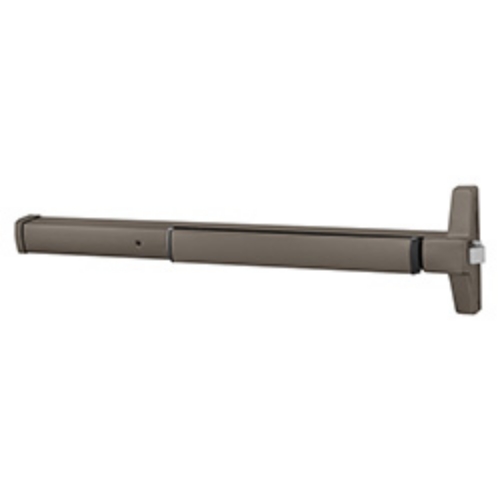

Standard exit devices are built for hollow metal and wood doors with wide stiles, typically 4-1/2" or more. Narrow stile aluminum storefronts, full glass doors, and curtain wall assemblies don't have that kind of frame width. A standard device won't mount properly and won't meet code on those openings. The Corbin Russwin ED4200 is purpose-built for exactly those doors. It's a Grade 1 narrow stile rim exit device that mounts on doors with as little as 2" of stile width, meets ANSI A156.3 Type 4 Grade 1, and carries UL 305 panic hardware listing, California State Fire Marshal approval, and NFPA 101 Life Safety Code compliance. It's the right device for the applications where everything else doesn't fit.

For the full Corbin Russwin ED4000 Series lineup including standard rim, vertical rod, and mortise configurations, visit the Corbin Russwin ED4000 exit devices category. For all commercial panic hardware across every brand, browse our full exit hardware catalog.

What Narrow Stile Means and Why It Matters

The stile is the vertical framing member on the edge of the door where the exit device mounts. On hollow metal and solid wood commercial doors, that stile is typically wide enough for any standard rim or mortise exit device. On aluminum storefront systems, full glass doors, and narrow profile metal frames, the stile can be as narrow as 1-3/4" to 2". A standard exit device would overhang the stile on both sides, can't be fastened securely, and won't pass inspection on a fire-rated opening. The ED4200 is designed around the narrow stile condition. At 2" minimum stile width, it covers the full range of aluminum storefront, full glass, and narrow metal frame applications where standard devices can't go.

Corbin Russwin ED4200 Technical Specifications

Series: ED4000. ANSI standard: A156.3, Type 4, Grade 1. Accessibility: meets ANSI A117.1 ADA requirements. UL/cUL Listed: yes, panic hardware per UL 305. California State Fire Marshal: approved per section 13144.1 of California Health and Safety Code. NFPA: complies with NFPA 101 Life Safety Code. Handing: device non-handed; trim is handed. Minimum stile width: 2" (51mm). Bar length: standard 36" fits doors 30" to 36"; optional 48" bar fits doors 36" to 48", specify W048; optional 24" bar for 24" doors, specify W024. Bar is cut to size. Door thickness: standard 1-3/4" (44mm); optional 2" specify D200; optional 2-1/4" specify D214. Latchbolt: 3/4" (19mm) throw, pullman type with stainless steel deadlocking latch. Material: high-grade, heat-treated, corrosion-resistant nickel steel alloy. Dogging: hex key dogging, non-fire rated applications only.

Bar Length and Field Cutting

The standard 36" bar is shipped at full length and field cut to match your door width. For a 32" door, you cut the bar on site to fit. No special tools beyond a hacksaw and the included template. The 48" optional bar covers wider openings in a single device. If your door schedule includes both 36" and 48" openings, order the correct bar length for each. Do not attempt to extend a bar beyond its rated size.

Available Trims for the ED4200

The ED4200 ships exit-only. The outside trim determines the entry function. Compatible ED4000 Series trims include Armstrong, Citation, Lustra, Newport, and Princeton lever styles, all available in passage (810ET), classroom (855ET), and storeroom (859ET) functions. A nightlatch escutcheon pull trim (P1057ET) is available for pull-only outside access without a lever. Electrified motor latch retraction is available on the ED4200 MELR configuration for access control integration. For all compatible outside trims, browse Corbin Russwin exit device trims.
