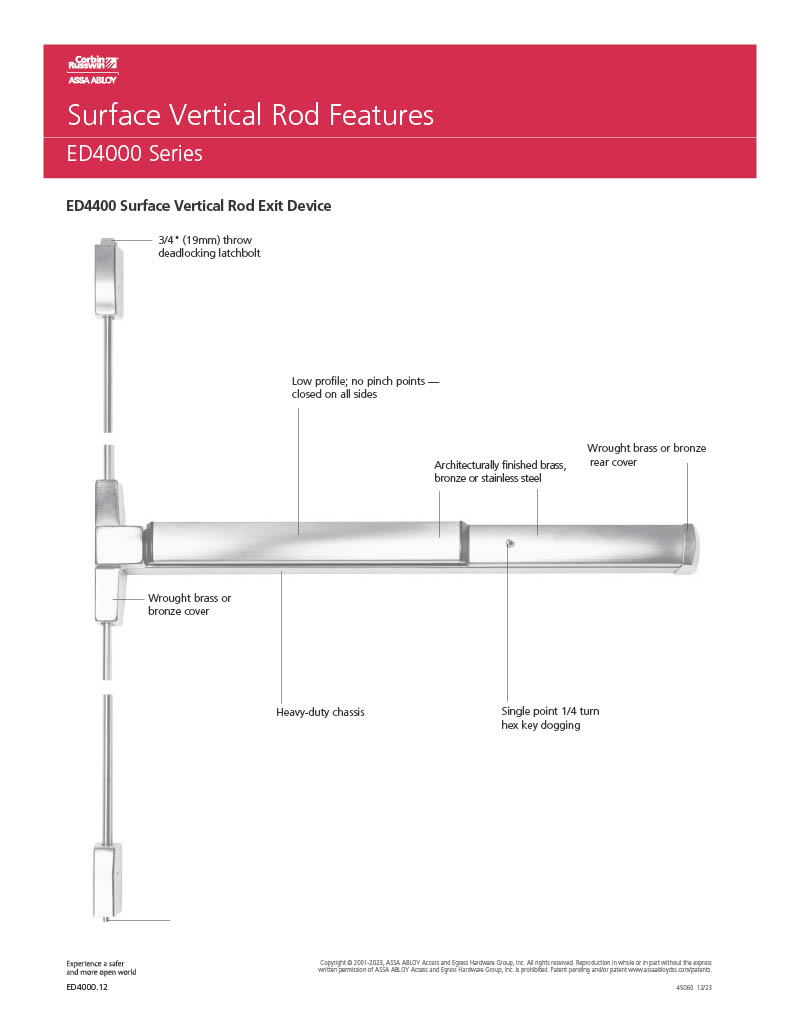

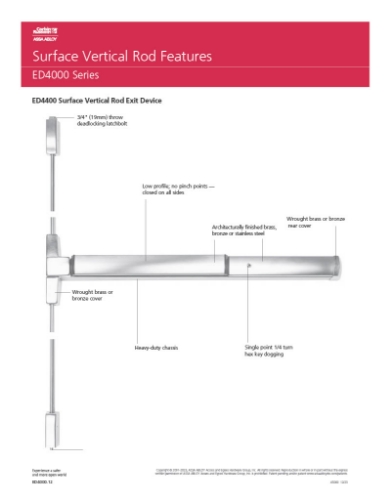

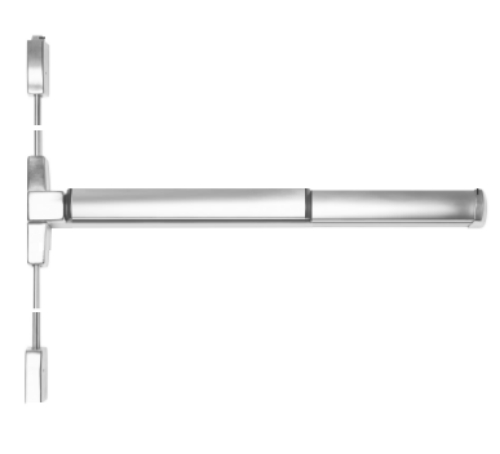

Corbin Russwin ED4400 Narrow Stile Pushpad, Surface Vertical Rod Panic Exit Device, Non-handed
Product Details
**Corbin Russwin ED4400 Narrow Stile Pushpad, Surface Vertical Rod Panic Exit Device, Non-handed
Applications:**
Designed for applications on narrow stile full glass, aluminum and metal doors in high-use and high-abuse situations, ED4000 Series devices can be teamed with a variety of Corbin Russwin trims to provide desired functions, styles and finishes in new construction and renovations, including:
- Schools and universities.
- Health care facilities.
- Government and municipal buildings.
- Factories and warehouses.
- Office and retail complexes.
- Transportation facilities.
- Hotels and conference centers.
- Religious facilities.
- Theaters and auditoriums.
Advantages:
- Meets ANSI Grade 1 requirements.
- Easy-to-use pushpad for quick egress and ADA compliance.
- Low projection for barrier-free code compliance.
- Heavy-duty construction.
- Quiet operation.
- Closed on all sides.
- no projecting parts to inhibit egress.
- Devices accommodate various function trims for flexibility.
- Through-bolted trims for strength, security, durability, smooth operation and easy installation.
- Wide range of designs and finishes to match other Corbin Russwin products.
- One-point dogging.
- Devices satisfy UL/cUL safety requirements.

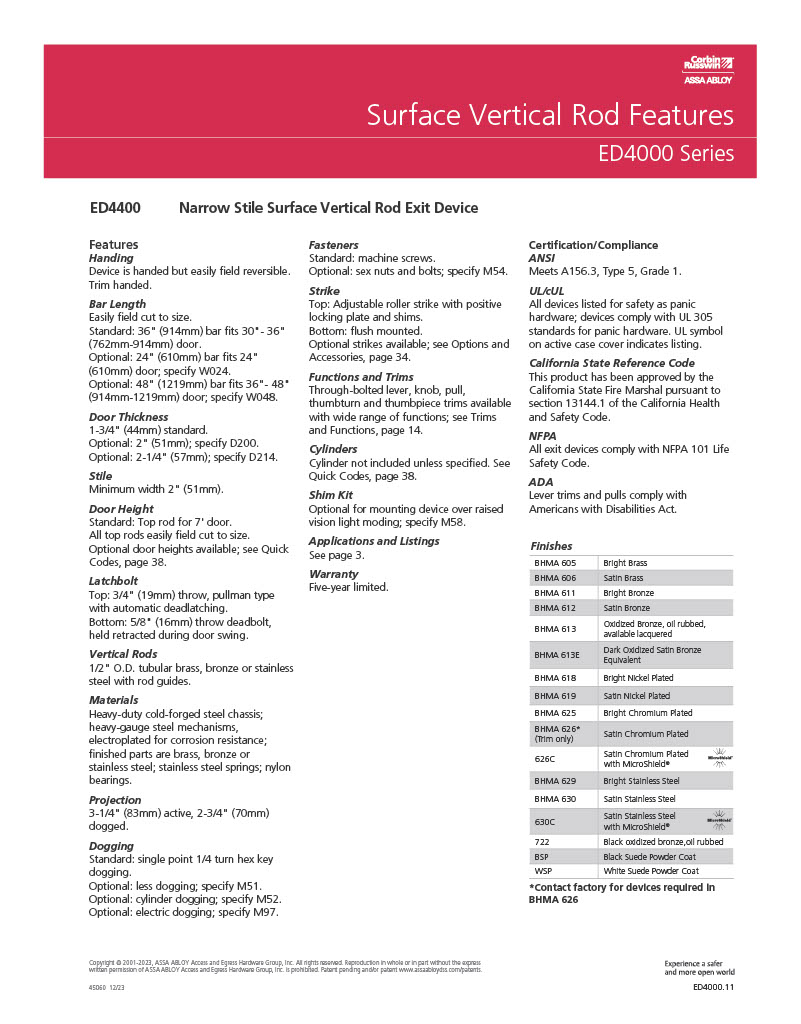

Features:
Handing:
Device non-handed.
Trim handed.
Bar Length:
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm) door; specify W024.
Optional: 48" (1219mm) bar fits 36"- 48" (914mm-1219mm) door; specify W048.
Door Thickness:
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile:
Minimum width 2" (51mm).
Latchbolt:
3/4" (19mm) throw, pullman type with stainless steel deadlocking latch.
Materials:
Heavy-duty cold-forged steel chassis, heavy-gauge steel mechanisms, electroplated for corrosion resistance, finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.
Projection:
3-1/4" (83mm) active, 2-3/4" (70mm) dogged.
Dogging:
Standard: single point 1/4 turn hex key dogging.
Optional: less dogging; specify M51.
Optional: cylinder dogging; specify M52.
Optional: electric dogging; specify M97.
Fasteners:
Standard: machine screws.
Optional: sex nuts and bolts; specify M54.
Strike:
Surface mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims.
Functions and Trims:
Through-bolted lever, knob, pull, thumbturn and thumbpiece trims available with wide range of functions.
Cylinders:
Cylinder not included unless specified.
Shim Kit:
Optional for mounting device over raised vision light molding; specify M58.
Warranty:
Five-year limited.
Certification/Compliance:
ANSI
Meets A156.3, Type 4, Grade 1.
Meets A117.1 Accessibility Code.
UL/cUL:
All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. UL symbol on active case cover indicates listing.
California State Reference Code:
This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.
NFPA:
All exit devices comply with NFPA 101 Life Safety Code.
ADA:
Exit devices, lever trims and pulls comply with Americans with Disabilities Act.
ED4200M & ED4200MA:
The ED4200M and ED4200MA rim exit device provides the appearance of a narrow stile rim exit device for use on wide stile or flush doors. Using the ED4200M or
ED4200MA with narrow stile trim provides design continuity and pleasing aesthetics when matching exit devices for inside doors to outside narrow stile doors.
