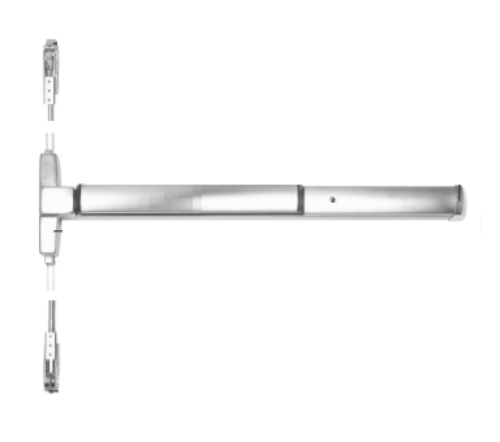

Corbin Russwin ED4800 Narrow Stile Pushpad, Concealed Vertical Rod Panic Exit Device, Non-handed

A rim exit device latches at one point, the top. That's fine for most single doors, but on taller aluminum or glass doors where top and bottom engagement is required by the door manufacturer or local code, a rim device isn't the specification. The Corbin Russwin ED4800 is. It's a Grade 1 narrow stile concealed vertical rod (CVR) panic exit device that latches at both the top and bottom of the door simultaneously when closed, using internal vertical rods concealed inside the door stile. No exposed rods on the face. No projecting hardware to catch on clothing or obstruct egress. Two secure latch points, a 2" minimum stile requirement, and full ANSI A156.3 Type 6 Grade 1 certification.

This is the device specified on narrow stile aluminum storefront doors, full glass entry systems, and metal doors in hotels, theaters, office towers, government buildings, and retail complexes where a clean appearance and dual-point security are both required. For the complete Corbin Russwin ED4000 Series in rim, surface vertical rod, and CVR configurations, browse Corbin Russwin ED4000 exit devices. For all commercial panic hardware across every brand, view our full exit hardware catalog.

ED4800 vs. ED4200: How CVR Differs from Rim

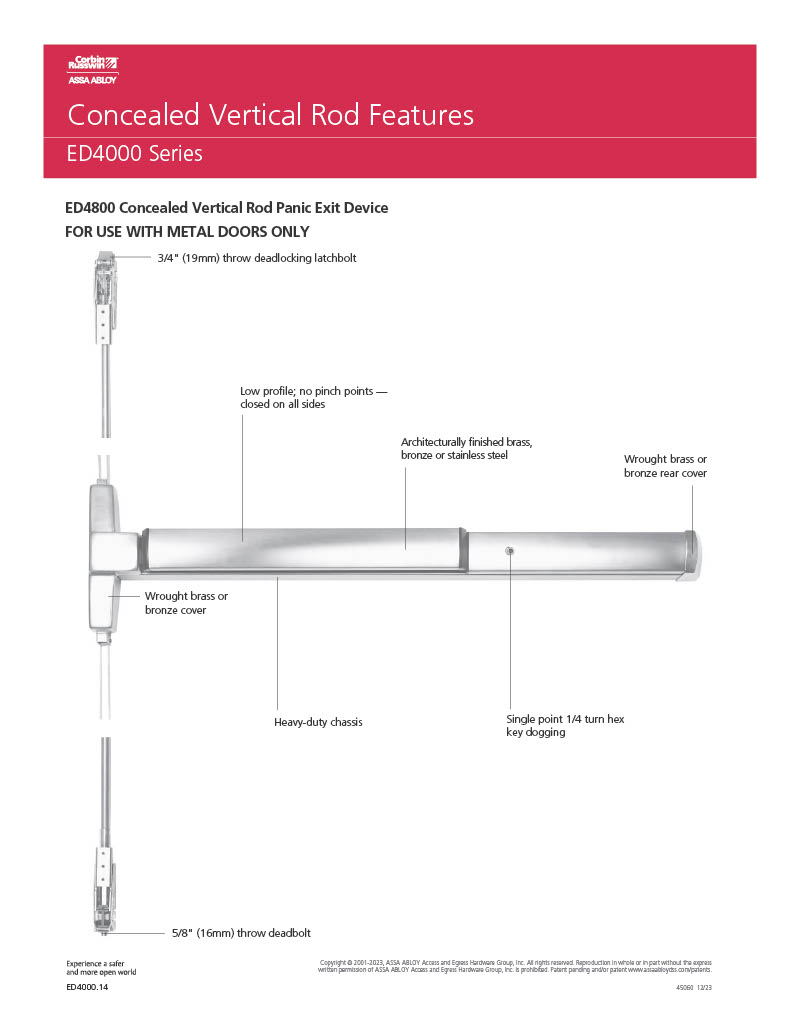

Both the ED4200 and ED4800 are narrow stile devices for aluminum and metal doors. The difference is the latching method. The ED4200 is a rim device: it latches only at the top, using a rim latch that engages a rim strike on the door frame. The ED4800 is concealed vertical rod: it latches at the top with a 3/4" pullman deadlatch AND at the bottom with a 5/8" deadbolt, both activated by a single push of the touchpad. The bottom rod retracts fully during the door swing so nothing drags on the floor. When the door closes, both points re-engage automatically.

The CVR design is required when the door manufacturer's warranty or the door's fire label requires multi-point latching, or when the opening's security specification calls for top-and-bottom engagement. It's also the preferred specification for taller doors (7' to 8') where a single rim latch provides insufficient holding force against the door's natural tendency to bow or flex.

Corbin Russwin ED4800 Technical Specifications

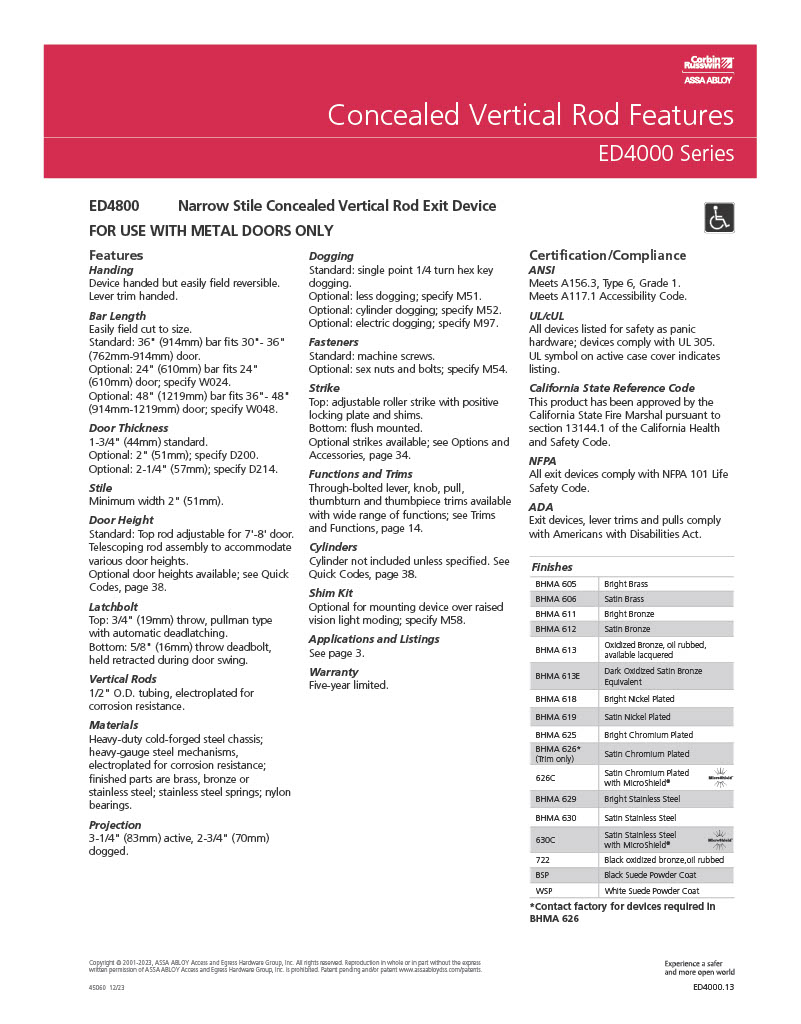

Series: ED4000. ANSI standard: A156.3, Type 6, Grade 1. Accessibility: meets ANSI A117.1 ADA requirements. UL/cUL Listed: yes, panic hardware per UL 305. California State Fire Marshal: approved per section 13144.1 of California Health and Safety Code. NFPA: complies with NFPA 101 Life Safety Code. For use with metal doors only. Handing: device is handed, easily field reversible. Trim: handed. Minimum stile width: 2" (51mm). Bar length: standard 36" bar fits doors 30" to 36"; optional 48" bar fits doors 36" to 48", specify W048. Field cut to size. Door thickness: standard 1-3/4" (44mm). Door height: standard top rod adjustable for 7' to 8' doors; telescoping rod assembly accommodates various door heights; optional door heights available. Top latchbolt: 3/4" (19mm) throw, pullman type with automatic deadlatching. Bottom latchbolt: 5/8" (16mm) throw deadbolt, held retracted during door swing. Vertical rods: 1/2" O.D. tubular brass, bronze, or stainless steel with rod guides. Chassis: heavy-duty cold-forged steel. Mechanisms: heavy-gauge steel, electroplated for corrosion resistance. Springs: stainless steel. Bearings: nylon. Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged. Dogging: one-point hex key.

Pushpad Design and ADA Compliance

The ED4800 uses a pushpad rather than a traditional cross-bar or touchbar. The pushpad is closed on all sides with no projecting parts that could snag clothing, bags, or equipment during emergency egress. The low projection profile meets barrier-free code requirements, and the pushpad design satisfies ADA egress requirements per ANSI A117.1. Through-bolted outside trims provide additional strength and security across all function configurations.

Available Trims and Electric Options

The ED4800 ships exit-only. Outside trim determines entry function. Compatible ED4000 Series lever trims in Armstrong, Citation, Lustra, Newport, and Princeton styles are available in passage, classroom, and storeroom functions. Motor Latch Retraction (MELR) and Electric Latch Pullback (M94) versions are available for access control integration. For all compatible outside trims, visit Corbin Russwin exit device trims.
