Corbin Russwin UT5251 Entrance Function

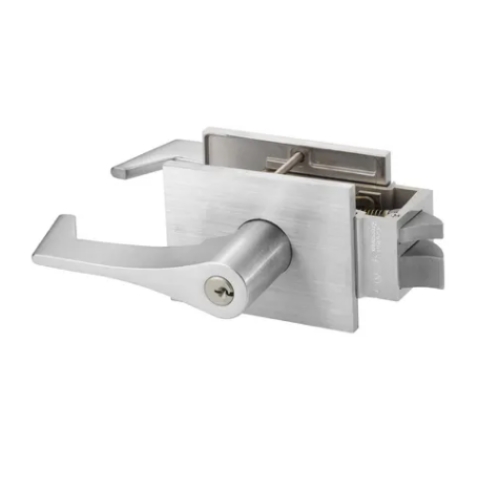

Corbin Russwin UT5251 ESE 626 Entrance Unit Lock - Satin Chrome

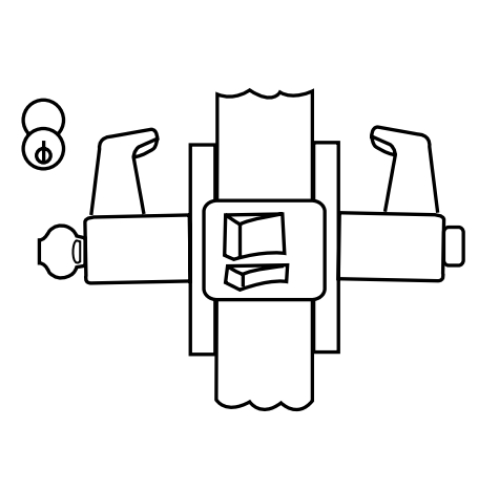

Entrance - ANSI F40

Deadlocking latchbolt by grip either side, except when turn button locks outside grip. Key outside retracts latchbolt. Outside grip unlocked by turn button. Inside grip always free.

Pre-Assembled Unit Locksets

Handing:Specify hand. All functions are handed.

Door Thickness:1-3/4" (44mm) only.

Backset:2-3/4" (70mm) only.

Lock Chassis:One-piece investment cast frame. Machined internal parts of steel, bronze and stainless steel. Zinc dichromated for corrosion resistance.

Front:Beveled 1/8" (3mm) in 2" (51mm).

Latchbolt:Brass, chrome plated, 3/4" (19mm) throw pivoted, swinging type.

Auxiliary Latch:Deadlocks latchbolt, preventing manipulation when door is closed.

Strike:Wrought brass or bronze, ANSI strike with nylon adjusting screw, standard. 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes and lip lengths available.

Cylinder:Brass, 6-pin, L4 keyway standard.

Keys:Two nickel silver standard.

Keying Features Available:Master keying, Interchangeable core (IC).

Warranty:One-year limited.

Model:Corbin Russwin, UT5251ESE626CL6, UT5251ESE626RHCL6, UT5251ESE626RHRCL6, UT5251ESE626LHCL6, UT5251ESE626LHRCL6, UT5251ESE626, UT5251ESE626RH, UT5251ESE626RHR, UT5251ESE626LH, UT5251ESE626LHR, UT5251ESE626C6, UT5251ESE626RHC6, UT5251ESE626RHRC6, UT5251ESE626LHC6, UT5251ESE626LHRC6**

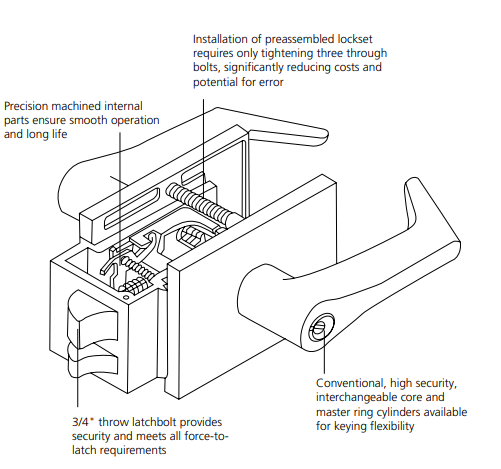

*Advantages: *Factory pre-assembled for quick, economical, one-piece installation: no job site assembly required 3/4" radius latchbolt, designed to wedge more tightly into the strike when tampered with, while meeting all ADA force-to-latch requirements.

Certification/Compliance

ANSI:* *Meets A156.2 Series 2000. Meets A117.1 Accessibility Code (lever design only).

Federal:* *Meets FF-H-106C.

*California State Reference Code(Formerly Title 19, California State Fire Marshal Standard)*All levers with return comply; levers return to within 1/2" (13mm) of door face.

UL /ULC* *All locks listed for A label and lesser class doors, single or pair, maximum door size 3'8" (111.7cm) x 7'2"(218.4cm) All locksets also listed for B label doors, single or pair, maximum door size 4' x 8'. Letter F and UL symbol on lock frame indicate listing.
