Product Details

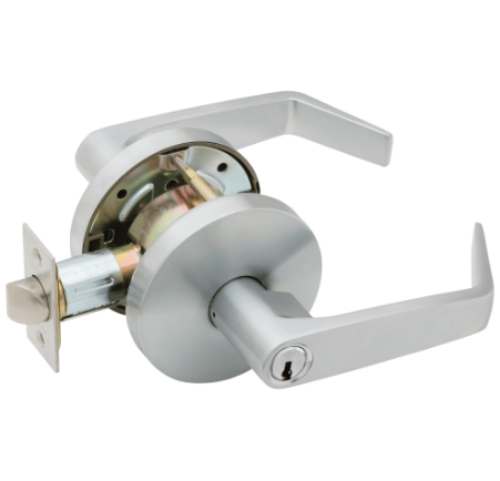

Falcon W571 - Grade 2 Corridor Lock -*ANSI F84*

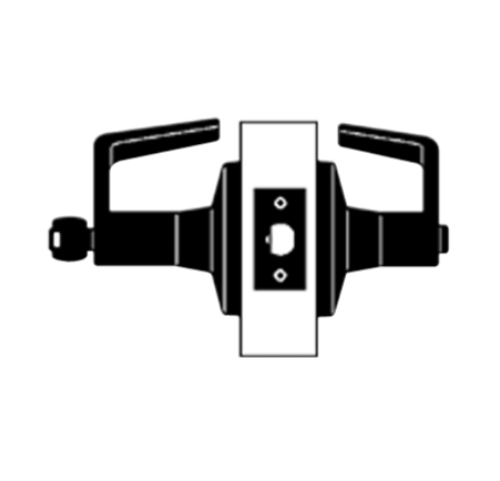

Latch bolt operated by levers/knobs except when locked by push button from inside. Key in outside lever/knob locks or unlocks lever/knob and releases button. Closing door releases push button. Inside always free for immediate egress.
Function note: This lock will unlock when the door is closed. If you want your door to remain locked when it closes, please purchase the 501 function.
Lever:D - Dane, Q - Quantum
Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626
Door Thickness:1-3/8" to to 1-3/4" standard.
Backset:2-3/4" standard; 2-3/8" also available.
Handing:Locks are non-handed.
Cylinders:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
Keyways:G keyway standard on Falcon standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways. SchlageCkeyway also available on standard cylinders.
Trim:Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
Latches:1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.
Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
UL:3 hour A label.
Model:Falcon, W581, W581PD, W581PDD, W581PDQ, W581PDDAN, W581PDQUA, W581SD626, W581PDQ626, W581PDDAN626, W581PDQUA626, W581PDD625, W581PDQ625, W581PDDAN625, W581PDQUA625, W581PDD605, W581PDQ605, W581PDDAN605, W581PDQUA605, W581PDD606, W581PDQ606, W581PDDAN606, W581PDQUA606, W581PDD613, W581PDQ613, W581PDDAN613, W581PDQUA613, W581BD, W581BDD, W581BDQ, W581BDDAN, W581BDQUA, 101SD626, W581BDQ626, W581BDDAN626, W581BDQUA626, W581BDD625, W581BDQ625, W581BDDAN625, W581BDQUA625, W581BDD605, W581BDQ605, W581BDDAN605, W581BDQUA605, W581BDD606, W581BDQ606, W581BDDAN606, W581BDQUA606, W581BDD613, W581BDQ613, W581BDDAN613, W581BDQUA613
