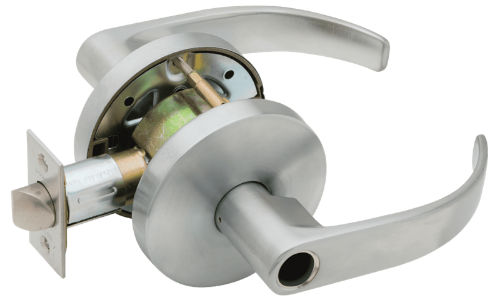

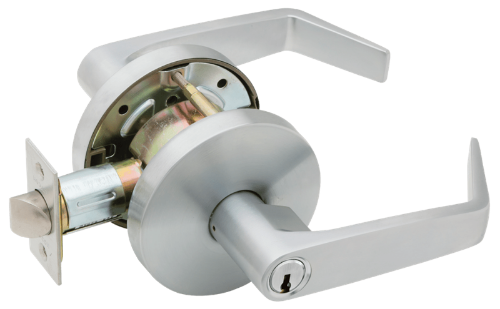

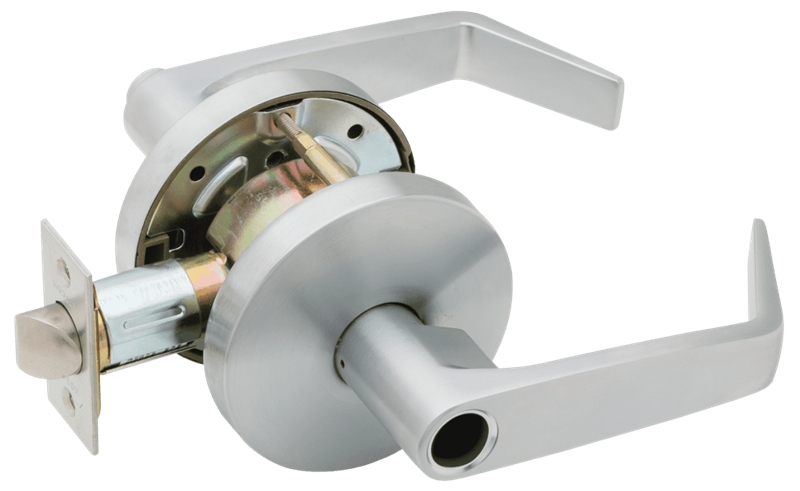

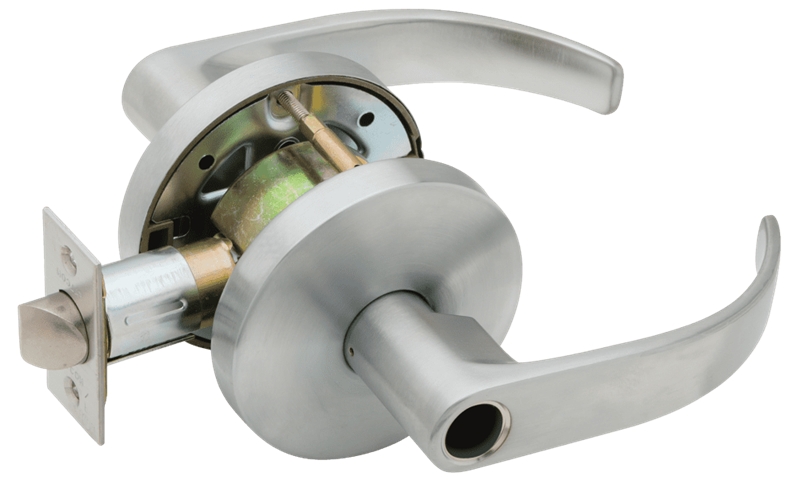

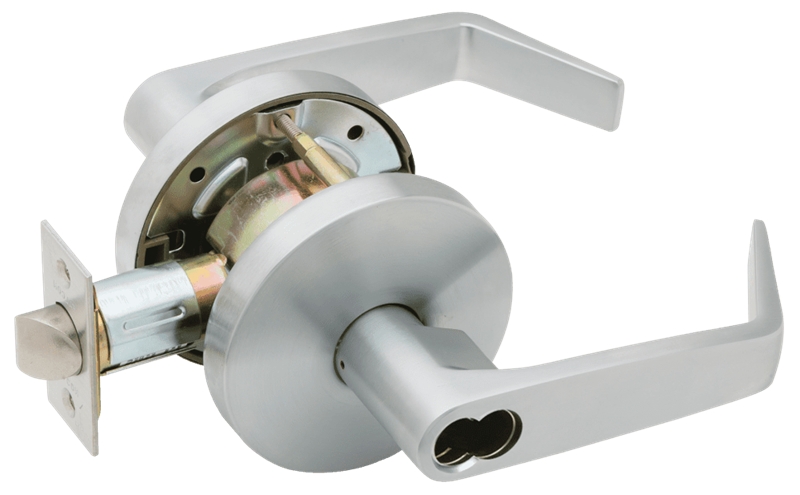

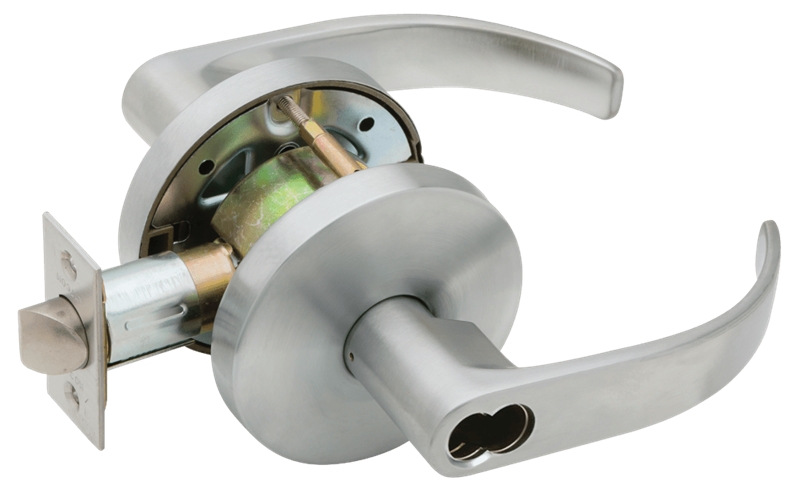

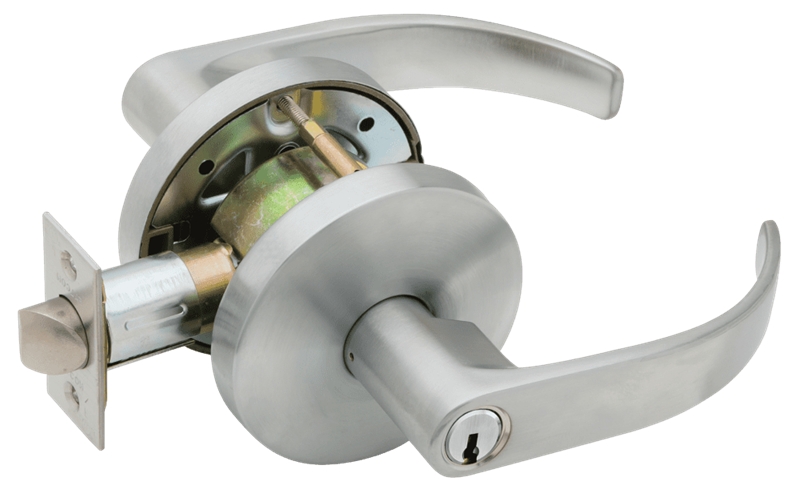

Falcon W501 - Grade 2 Entry Lock

Falcon W501 - Grade 2 Entry Lock -*ANSI F82*

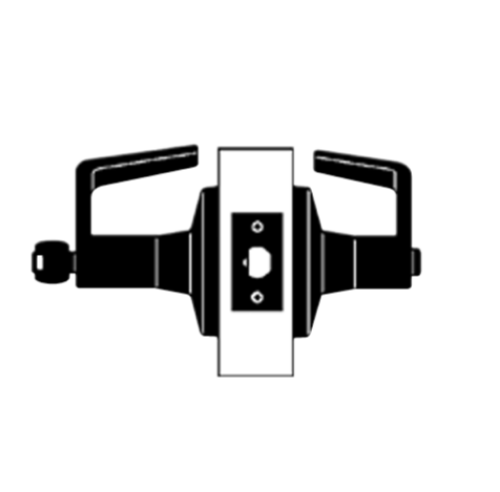

Push button locking. Button on inside locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlock latchbolt.

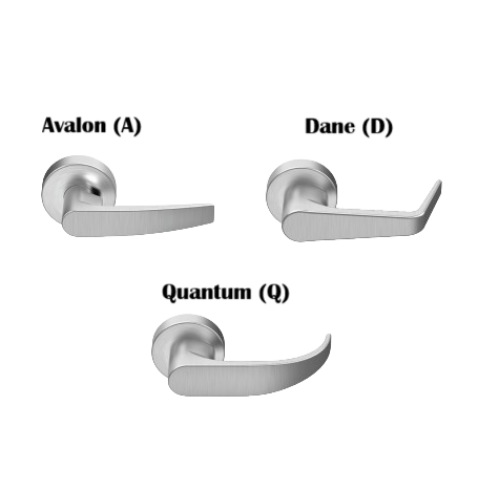

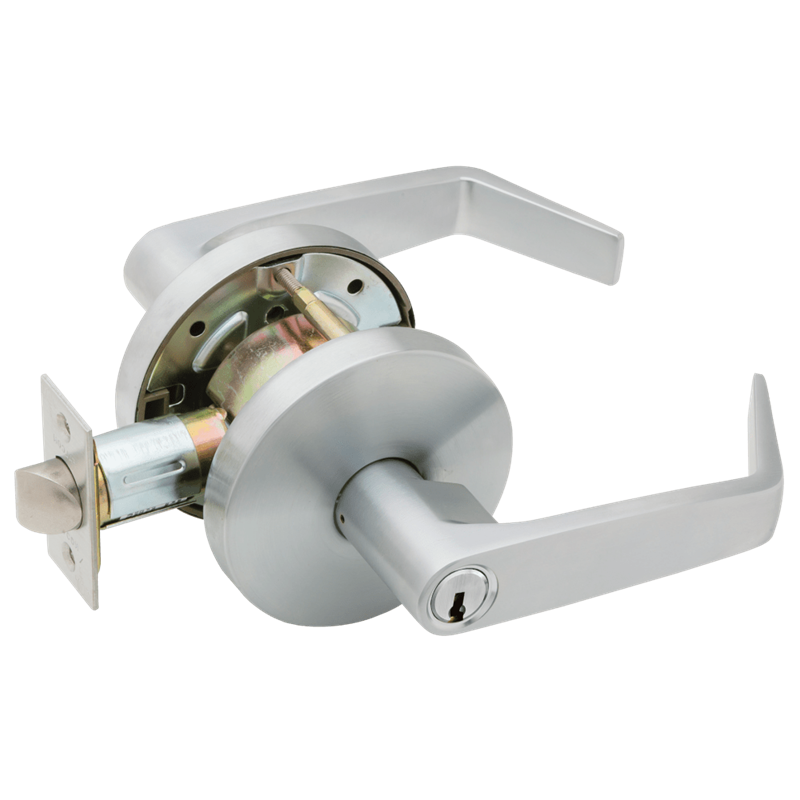

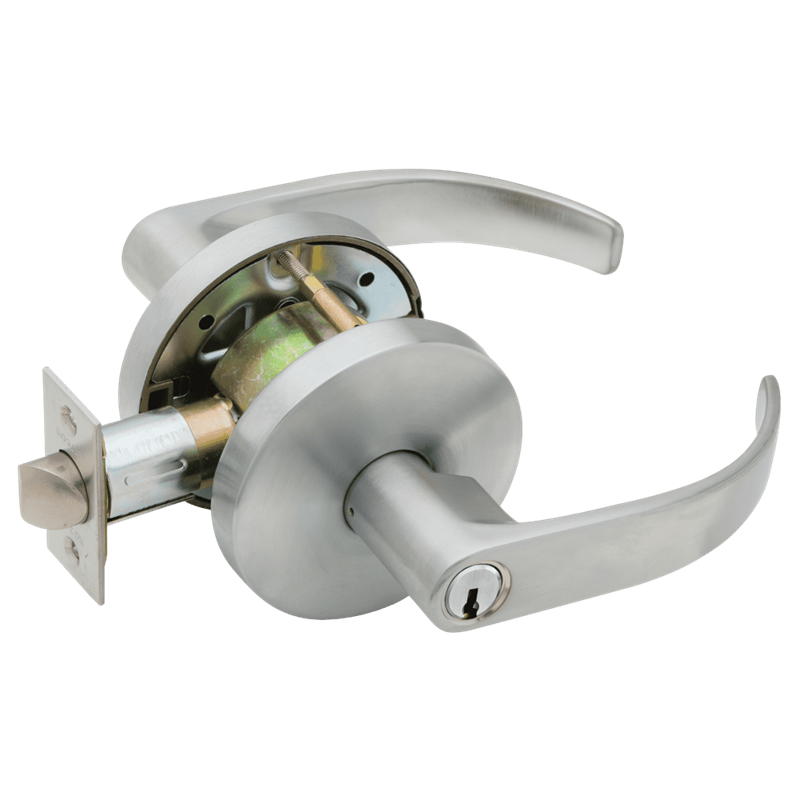

Lever:D - Dane, Q - Quantum

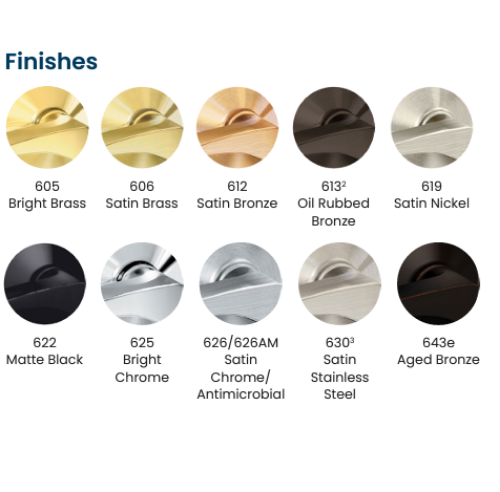

Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness:1-3/8" to to 1-3/4" standard.

Backset:2-3/4" standard; 2-3/8" also available.

Handing:Locks are non-handed.

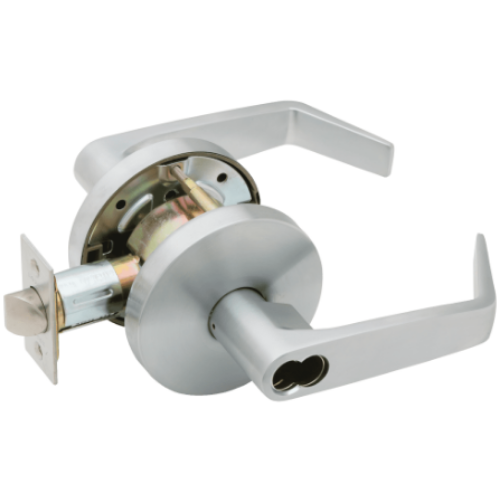

Cylinders:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.

Keyways:G keyway standard on Falcon standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage C keyway also available on standard cylinders.

Trim:Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches:1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:3 hour A label.

Model:Falcon, W501, W501PD, W501PDD, W501PDQ, W501PDDAN, W501PDQUA,  W501SD626, W501PDQ626, W501PDDAN626, W501PDQUA626, W501PDD625, W501PDQ625, W501PDDAN625, W501PDQUA625, W501PDD605, W501PDQ605, W501PDDAN605, W501PDQUA605, W501PDD606, W501PDQ606, W501PDDAN606, W501PDQUA606, W501PDD613, W501PDQ613, W501PDDAN613, W501PDQUA613, W501BD, W501BDD, W501BDQ, W501BDDAN, W501BDQUA,  101SD626, W501BDQ626, W501BDDAN626, W501BDQUA626, W501BDD625, W501BDQ625, W501BDDAN625, W501BDQUA625, W501BDD605, W501BDQ605, W501BDDAN605, W501BDQUA605, W501BDD606, W501BDQ606, W501BDDAN606, W501BDQUA606, W501BDD613, W501BDQ613, W501BDDAN613, W501BDQUA613

Mechanism:Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws:Furnished with combination screws for use in wood or metal doors and frames.
