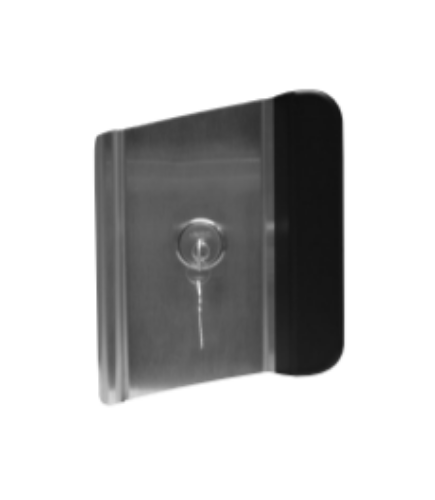

Corbin Russwin VT950ET 630 Pull Escutcheon Trim, Stamped or Formed Stainless Steel, Satin Stainless Steel

The VT950ET is the pull escutcheon trim for that situation: a VT9 pull plate in stamped or formed stainless steel construction, finish 630 Satin Stainless Steel, providing a clean outside pull handle with no cylinder, no lever, and no key operation of any kind. It's the trim you specify when outside entry control isn't needed for the specific opening, or when outside entry is managed by a separate keyed door and this exit device opening is secondary.

Finish 630 is Satin Stainless Steel (BHMA US32D equivalent), the most specified stainless steel finish in commercial hardware for its corrosion resistance, clean appearance, and compatibility with 304 and 316 stainless adjacent hardware. For all Corbin Russwin ED5000 exit devices and compatible trims, browse our Corbin Russwin ED5000 exit devices catalog. For all commercial exit hardware, view our exit hardware catalog.

VT950ET Function: Dummy Pull, No Outside Operation

The "950" in VT950ET is the function code: dummy trim, pull only. No cylinder position, no lever connection to the exit device latch mechanism. The pull handle provides a grip surface from the outside for pushing or pulling the door when the device is dogged. It does not retract any latch, does not provide key access, and does not interact with the exit device mechanism from outside in any way. This is the correct specification when:

The opening is a secondary exit with no outside re-entry needed. The outside pull is needed for aesthetic and ergonomic reasons when dogged but no secured outside entry is required. Outside access is handled through an adjacent door and this opening needs only egress function.

If the opening requires outside key entry, cylinder dogging, or lever operation, the VT950ET is the wrong trim. The 955ET (storeroom: key entry, cylinder over-ride), 957ET (classroom: key locks/unlocks lever), or 959ET (storeroom: key retracts latch every entry) are the correct trim specifications for controlled outside entry on ED5000 devices.

Corbin Russwin VT950ET 630 Technical Specifications

SKU: VT950ET 630. Compatible exit devices: Corbin Russwin ED5000 Series (ED5000, ED5200, ED5400, ED5600, ED5800). Pull design: VT9 Pull Plate. Function: 950, Dummy Pull Only. No cylinder. No lever. No outside latch operation. Construction: Stamped or Formed Stainless Steel escutcheon. Finish: 630 Satin Stainless Steel (US32D). Handing: LHR (Left Hand Reverse) or RHR (Right Hand Reverse); specify at time of order. Cylinder: None (dummy function). Escutcheon type: Vertical trim plate. Application: Outside pull when exit device is dogged or when no outside entry control is required.

630 Satin Stainless Steel Finish

Finish 630 is Satin Stainless Steel, manufactured from Type 304 stainless steel with a brushed satin surface treatment. It's the same 630 finish standard across Corbin Russwin, Von Duprin, Sargent, and Schlage commercial hardware, meaning the VT950ET 630 can be specified alongside any major brand's 630-finish exit devices, push bars, trim sets, and adjacent hardware without visible finish mismatch. For coastal, exterior-adjacent, or humid environments where corrosion resistance matters, specifying 316 alloy stainless is available on custom orders.
