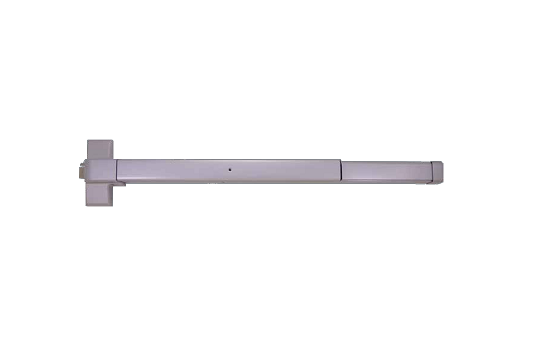

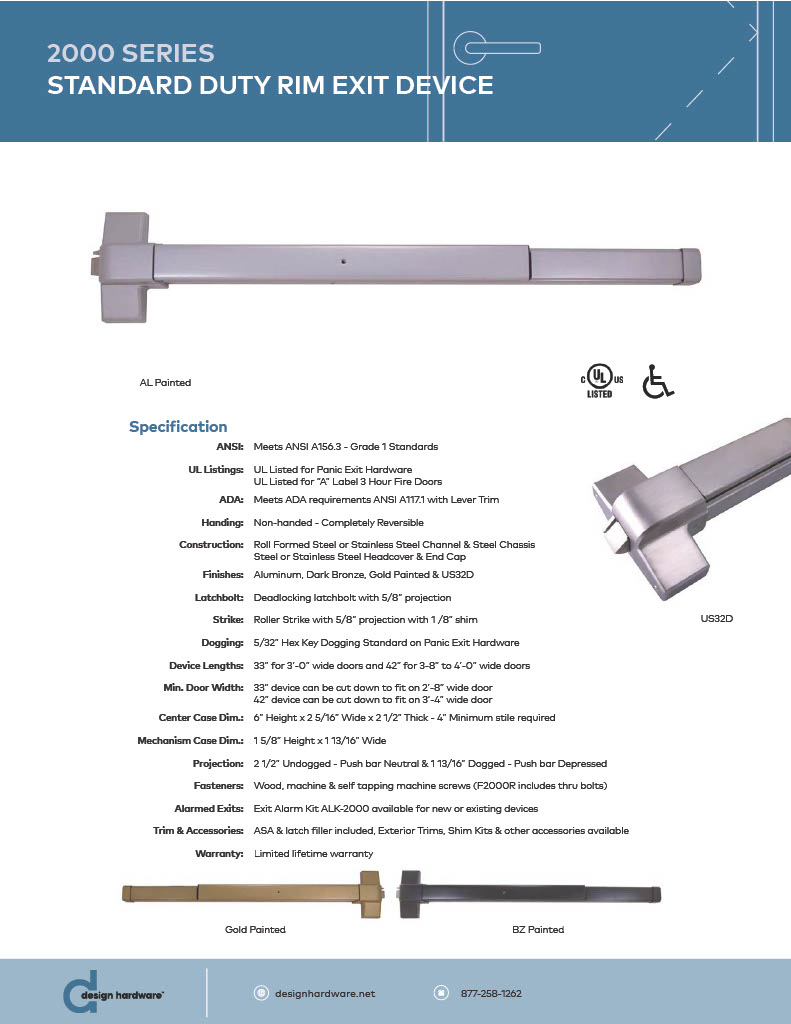

Design Hardware DH-2000R Grade 1 Rim Exit Device Grade 1, Standard Duty

Specification:

ANSI:Meets ANSI A156.3 - Grade 1 StandardsUL Listings:UL Listed for Panic Exit HardwareUL Listed for "A" Label 3 Hour Fire DoorsADA:Meets ADA requirements ANSI A117.1 with Lever TrimHanding:Non-handed - Completely ReversibleConstruction:Roll Formed Steel or Stainless Steel Channel & Steel ChassisSteel or Stainless Steel Headcover & End CapFinishes:Aluminum, Dark Bronze, Gold Painted & US32DLatchbolt:Deadlocking latchbolt with 5/8" projectionStrike:Roller Strike with 5/8" projection with 1 /8" shimDogging:5/32" Hex Key Dogging Standard on Panic Exit HardwareDevice Lengths:33" for 3'-0" wide doors and 42" for 3-8" to 4'-0" wide doorsMin. Door Width: 33" device can be cut down to fit on 2-8 wide door42 device can be cut down to fit on 3'-4" wide doorCenter Case Dim.:6" Height x 2 5/16" Wide x 2 1/2" Thick - 4" Minimum stile requiredMechanism Case Dim.:1 5/8" Height x 1 13/16" WideProjection:2 1/2" Undogged - Push bar Neutral & 1 13/16" Dogged - Push bar DepressedFasteners:Wood, machine & self tapping machine screws (F2000R includes thru bolts)Alarmed Exits:Exit Alarm Kit ALK-2000 available for new or existing devicesTrim & Accessories:ASA & latch filler included, Exterior Trims, Shim Kits & other accessories availableWarranty:Limited lifetime warranty
