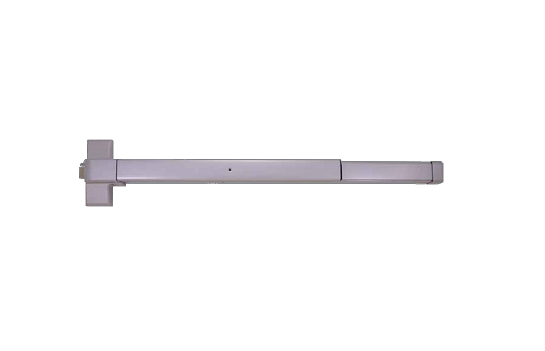

Design Hardware DH-2000V-33-32D Grade 1 Surface Vertical Rod Exit Device Grade 1, Standard Duty

Design Hardware DH-2000V-33-32D Grade 1 Surface Vertical Rod Exit Device Grade 1, Standard Duty* Specification: * **ANSI:Meets ANSI A156.3 - Grade 1 StandardsUL Listings:UL Listed for Panic Exit Hardware3 Hour Fire Doors to 8'-0" x 10'-0" & LBR up to 8'-0" x 8'-0"ADA: Meets ADA requirements ANSI A117.1 with Lever TrimHanding:Easily Re- handed in the field - Shipped as RHRConstruction:Roll Formed Steel or Stainless Steel Channel & Steel ChassisSteel or Stainless Steel Head Cover & End CapFinishes:Aluminum, Dark Bronze, Gold Painted & US32DTop Latch:U Shaped Top Latch for Secure Engagement with strikeBottom Latch:Drop Bolt Style Bottom Latch Secures into flat strike & hole in the floorDogging: 5/32" Hex Key Dogging Standard on Panic Exit HardwareDevice Lengths:33" for 3'-0" wide doors and 42" for 3-8" to 4'-0" wide doorsMin. Door Width:33" device can be cut down to fit on 2'-8" wide door42" device can be cut down to fit on 3'-4" wide doorDoor Heights:7"-0" Standard - Extended Top Rods available for up to 10'-0" tall doorsCenter Case Dim.:6" Height x 2 5/16" Wide x 2 1/2" Thick - 4" Minimum stile requiredMechanism Case Dim.:1 5/8" Height x 1 13/16" WideProjection:2 1/2" Undogged - Push bar Neutral & 1 13/16" Dogged - Push bar DepressedFasteners:Wood, machine & self tapping machine screws (F2000V includes thru bolts)Alarmed Exits:Exit Alarm Kit ALK-2000 available for new or existing devicesTrim & Accessories:Latch filler included, Exterior Trims, Shim Kits & other accessories availableUnder Cut:1/4" door under cut recommended for 1/4" threshold or no threshold openingsWarranty:Limited lifetime warranty
