Product Details

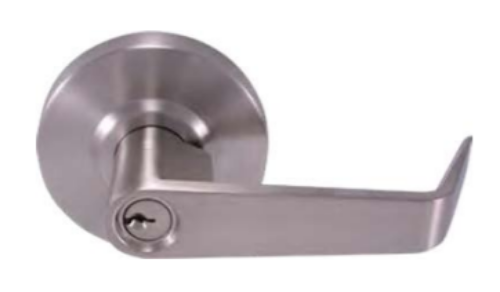

Design Hardware DH-KIL-Storeroom Entry Function Exit Trim
ANSI:ANSI A156.3, Grade 1
ADA:Meets ADA requirements ANSI A117.1
Construction:Steel, Zinc Dichromated Chassis - Stainless Steel Exterior Housing
Application:Standard Duty lever trim option for 1000R & 2000R (Not recommended for SVR devices, Heavy Duty LE trim recommended)
Door Prep:Installs in 2 1/8" 161 door prep
Actuator:Cross shaped stainless steel
Lever:5" Solid Zinc Diecast lever - 2 7/8" total projection
Rose::3 3/8" wrought brass roses
Handing:Non-handed Completely Reversible
Door Thickness:1 3/4" standard - available for 2" thick doors, specify when ordering

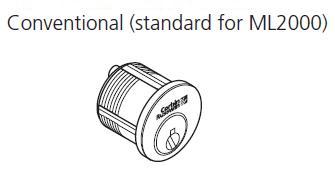

Cylinders Options:6 Pin Brass, C Kwy, with 2 Keys std., Prepared for Small format IC core (less core)
Warranty:Limited lifetime warranty
