Product Details

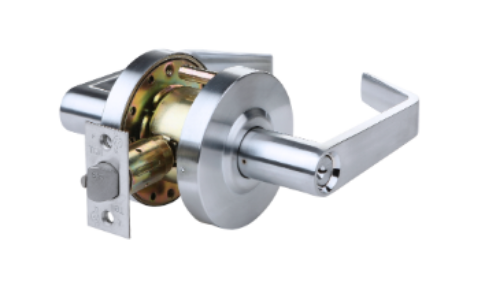

Tell LC2682 CTL Grade 2 Entry Lock
Deadlocking latch bolt operated by lever from either side except when outside lever is locked by push button or other locking device on inside. When outside lever is locked, operating key in outside lever or operating inside lever unlocks push button or other locking device and retracts latch bolt. Closing door does not release push button or other locking device.
Lever:Non-handed
Latch:1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel)
Thru-bolts:Thru-bolts standard. Removable available.
Backset:2-3/8" or 2-3/4
Strike:Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. T Strike (1-1/8" x 2-3/4"), and F Strike (full lip) available
Door Range: 1-1/2" to 2"
Door Preparation:2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep.
Cylinder:Schlage (SCC), Schlage C 6-pin keyway standard. (SC5) 5-pin, Schlage E (SCE), Arrow A (ARA), Corbin 60 (C06), Corbin 59A1 (C059A1), Corbin Russwin L4 (CL4), Russwin D1 (RD1), Sargent LA (SAL), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA) available
Keying:Available Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), 0-bitted (0BIT)
Keys:Two nickel silver per lock
Warranty: 1 year limited
