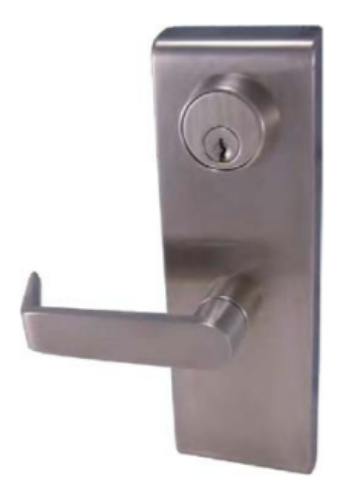

Design Hardware DH-LE-08 Entry Function Exit Trim

Product Details

Design Hardware DH-LE-08 Heavy Duty Entry Function Exit Trim

ANSI:ANSI A156.3, Grade 1

ADA:Meets ADA requirements ANSI A117.1

Construction:Steel, Zinc Dichromated Chassis - Stainless Steel Exterior Housing

Application:Heavy Duty trim option for use with all 1000 & 2000 series exit devices

Mounting:Thru bolted design thru bolts to head of exit device

Spindle:5/16" Square, Steel - Machined & Heat Treated

Lever:5" Solid Stainless Steel lever - 2 7/8" total projection

Escutcheon:3" Wide x 9" Height x 3/4" Projection -Will cover 161 door prep

Handing:Non-Handed, Field selected at the time of installation

Door Thickness:1 3/4" standard-Thick door kits available for 2" thick doors

Fasteners:Includes thru bolt posts and 1/4"-20 machine screws for installation

Standard Cylinder:1 1/8" Mortise cylinder with std. cam (included) - 6 Pin Brass, C Kwy, with 2 Keys

Warranty:Limited lifetime warranty

Design Hardware DH-LE-08 Entry Function Exit Trim

SKU: DH-LE-08

In Stock

Finish *

32D - Satin Stainless - Steel
32D - Satin Stainless - Steel
US10B - Oil Rubbed Bronze [+$6.75]
US10B - Oil Rubbed Bronze [+$6.75]

$159.21

$251.55

You saved $92.34

0

About this item

Design Hardware DH-LE-08 Heavy Duty Entry Function Exit Trim

ANSI: ANSI A156.3, Grade 1

ADA: Meets ADA requirements ANSI A117.1

Construction: Steel, Zinc Dichromated Chassis - Stainless Steel Exterior Housing

Application: Heavy Duty trim option for use with all 1000 & 2000 series exit devices

Mounting: Thru bolted design thru bolts to head of exit device

Spindle: 5/16" Square, Steel - Machined & Heat Treated

Lever: 5" Solid Stainless Steel lever - 2 7/8" total projection

Escutcheon: 3" Wide x 9" Height x 3/4" Projection -Will cover 161 door prep

Handing: Non-Handed, Field selected at the time of installation

Door Thickness: 1 3/4" standard-Thick door kits available for 2" thick doors

Fasteners: Includes thru bolt posts and 1/4"-20 machine screws for installation

Standard Cylinder: 1 1/8" Mortise cylinder with std. cam (included) - 6 Pin Brass, C Kwy, with 2 Keys

Warranty: Limited lifetime warranty


Design Hardware DH-LE-08 Heavy Duty Entry Function Exit Trim

ANSI:ANSI A156.3, Grade 1

ADA:Meets ADA requirements ANSI A117.1

Construction:Steel, Zinc Dichromated Chassis - Stainless Steel Exterior Housing

Application:Heavy Duty trim option for use with all 1000 & 2000 series exit devices

Mounting:Thru bolted design thru bolts to head of exit device

Spindle:5/16" Square, Steel - Machined & Heat Treated

Lever:5" Solid Stainless Steel lever - 2 7/8" total projection

Escutcheon:3" Wide x 9" Height x 3/4" Projection -Will cover 161 door prep

Handing:Non-Handed, Field selected at the time of installation

Door Thickness:1 3/4" standard-Thick door kits available for 2" thick doors

Fasteners:Includes thru bolt posts and 1/4"-20 machine screws for installation

Standard Cylinder:1 1/8" Mortise cylinder with std. cam (included) - 6 Pin Brass, C Kwy, with 2 Keys

Warranty:Limited lifetime warranty
