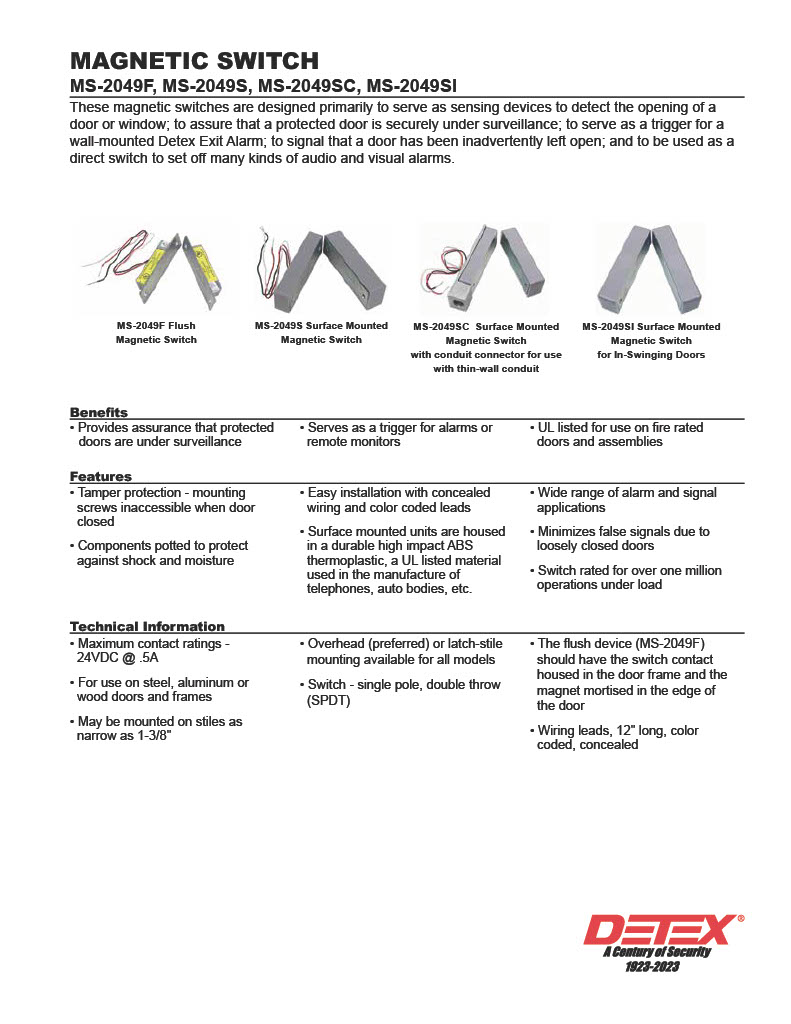

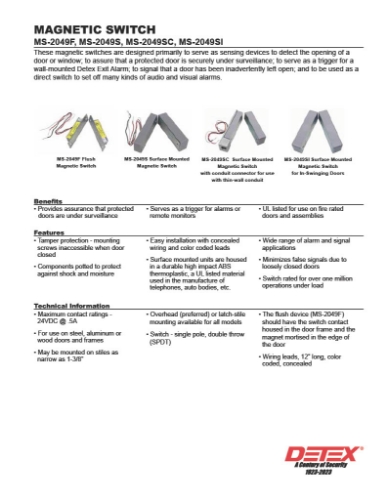

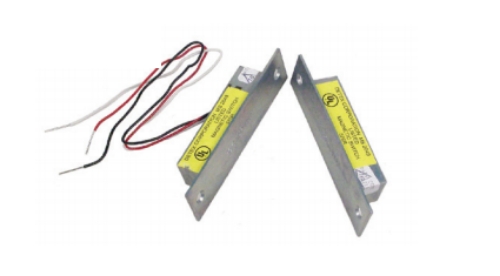

Detex MS-2049F Heavy Duty Flush Magnetic Switch

Detex MS-2049F Heavy Duty*Flush Magnetic Switch*

Benefits

? Provides assurance that protected doors are under surveillance

? Serves as a trigger for alarms or remote monitors

? UL listed for use on fire rated doors and assemblies

Features

? Tamper protection - mounting screws inaccessible when door closed

? Components potted to protect against shock and moisture

? Easy installation with concealed wiring and color coded leads

? Wide range of alarm and signal applications

? Minimizes false signals due to loosely closed doors

? Switch rated for over one million operations under load

Technical Information

? Maximum contact ratings - 24VDC @ .5A

? For use on steel, aluminum or wood doors and frames

? May be mounted on stiles as narrow as 1-3/8"

? Overhead (preferred) or latch-stile mounting available for all models

? Switch - single pole, double throw (SPDT)

? The flush device (MS-2049F) should have the switch contact housed in the door frame and the magnet mortised in the edge of the door

? Wiring leads, 12" long, color coded, concealed

Detex Limited Warranty 3 Year Limited Nanufacturers Warranty

Model: Detex MS-2049F, MS2049F, MS 2049F

**
