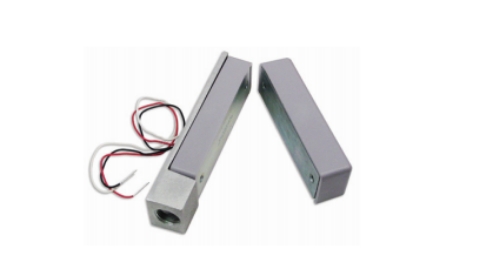

Detex MS-2049SC H.D. Surface Mounted Magnetic Switch With Conduit Connector

Detex MS-2049SC H.D. Surface Mounted Magnetic Switch With Conduit Connector *for use with thin-wall conduit*

Benefits

? Provides assurance that protected doors are under surveillance

? Serves as a trigger for alarms or remote monitors

? UL listed for use on fire rated doors and assemblies

Features

? Tamper protection - mounting screws inaccessible when door closed

? Components potted to protect against shock and moisture

? Easy installation with concealed wiring and color coded leads

? Wide range of alarm and signal applications

? Surface mounted units are housed in a durable high impact ABS thermoplastic, a UL listed material used in the manufacture of telephones, auto bodies, etc.

? Minimizes false signals due to loosely closed doors

? Switch rated for over one million operations under load

Technical Information

? Maximum contact ratings - 24VDC @ .5A

? For use on steel, aluminum or wood doors and frames

? May be mounted on stiles as narrow as 1-3/8"

? Overhead (preferred) or latch-stile mounting available for all models

? Switch - single pole, double throw (SPDT)

? Wiring leads, 12" long, color coded, concealed

Detex Limited Warranty 3 Year Limited Nanufacturers Warranty

Model: Detex MS-2049SC, MS2049SC, MS 2049SC

**
