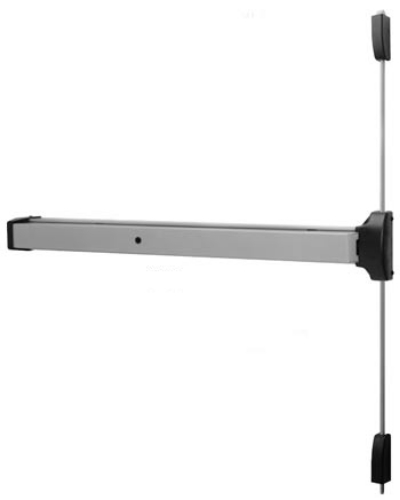

Dormakaba 8400 689 Grade 1 Surface Vertical rod Panic Exit Device - Exit Only - Silver Aluminum Painted

Dormakaba *8400 689 Grade 1 Surface Vertical rod Panic Exit Device - Exit Only - Silver Aluminum Painted*

Applications:

8000 Series exit devices minimize forced entry while offering a low-cost solution to life safety requirements

Door Height up to 7'

Devices fit standard 1-3/4"- 2-1/4" thick doors

4 1⁄2" minimum stile width

Hex Key Dogging (non-listed units only)

Device handed but field-reversible

Standard Strike No. 426/439

Warranty:

5 year mechanical

Model:Dormakaba 8400, 8400B, 8400B689,

Listings & Approvals:

Certified/listed to ANSI/BHMA 156.3, Grade 1 forexit devices. - U.L. and C.U.L. listed under their continuing reinspection programs and conforms to standards U.L. 10C positive pressure testing. - Complies with NFPA 101 life safety code. Fire rated devices comply with NFPA 80 fire doors and windows. - Devices, trim, pulls, and levers comply with the Americans for Disabilities Act,   1994, and ICC A117.1 for accessible and usable buildings and facilities. - Contributes to U.S. Green Building Council, LEED MR Credits 2.1, 4.1, 4.2, and 5.1. - Listed with the California Department of Forestry and Fire Protection, Office of the State Fire Marshal. - Hurricane code approved to Miami-Dade County Florida acceptance No. 06-912.04.
