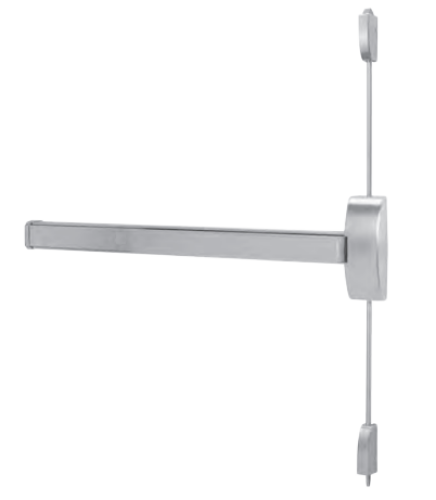

DormakabaF9400B 630 Fire Rated Surface Vertical Rod Exit Device - Satin Stainless Steel

Dormakaba *F9400B 630 Grade 1 Fire Rated Surface Vertical Rod Exit Device - Satin Stainless Steel*

Applications:

The 9400 and F9400 provide heavy-duty, secure, two-point mlatching at the top and bottom of the opening.

Both the 9400 and F9400 Series feature a patented latch design for reliable, secure operation.

This premium exit device is built for high impact applications such as schools, universities and other institutional or commercial buildings.

Door Height up to 7'

Devices fit standard 1-3/4"- 2-1/4" thick doors

4 1⁄2" minimum stile width

The F9400 devices are U.L.-listed for three-hour steel fire door applications.

Device is Handed but Field Reversible

Standard Strike No. 426/439

Warranty:

10 year mechanical

Model:Dormakaba F9400, F9400B, F9400B630

Listings & Approvals:

? Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices. ? UL and CUL listed under their continuing reinspection programs and conforms to standards UL 10B & 10C positive pressure testing. ? Complies with NFPA 101 life safety code. Fire rated devices comply with NFPA 80 fire doors and windows. ? CSFM approved, California State Reference Code 1989 (title 19). ? Devices, trim, pulls, and levers comply with the Americans for Disabilities Act, 1994, and ANSI 117.1-2003 for accessible and usable buildings and facilities. ? Contributes to U.S. Green Building Council, LEED MR Credits 2.1, 4.1, 4.2 and 5.1.
