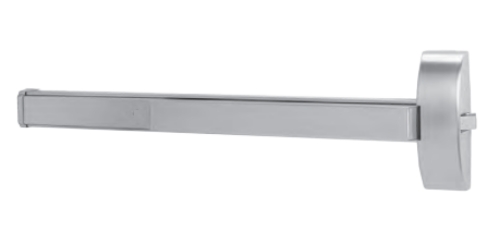

Dormakaba F9300A Fire Rated Rim Panic Exit Device - 48" Length - Exit Only

Dormakaba *F9300A Grade 1 Fire Rated Rim Panic Exit Device - 48" Length - Exit Only*

Applications:

The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards.

U.L. Listed for Labeled Fire Doors:The F9300 Series devices carry an “A" label for three-hour steel fire door applications.

This premium exit device is built for high impact applications such as schools, universities and other institutional or commercial buildings.

Devices fit standard 1-3/4"- 2-1/4" thick doors

4 1⁄2" minimum stile width

Rim devices and trim are non-handed

Standard Strike No. 463

Warranty:

10 year mechanical

Model:Dormakaba F9300, F9300B, F9300A, F9300A689, F9300B689, F9300A630, F9300B630

Listings & Approvals:

- Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices. - UL and CUL listed under their continuing reinspection programs and conforms to standards UL 10B & 10C positive pressure testing. - Complies with NFPA 101 life safety code. Fire rated devices comply with NFPA 80 fire doors and windows. - CSFM approved, California State Reference Code 1989 (title 19). - Devices, trim, pulls, and levers comply with the Americans for Disabilities Act, 1994, and ANSI 117.1-2003 for accessible and usable buildings and facilities. - Contributes to U.S. Green Building Council, LEED MR Credits 2.1, 4.1, 4.2 and 5.1.
