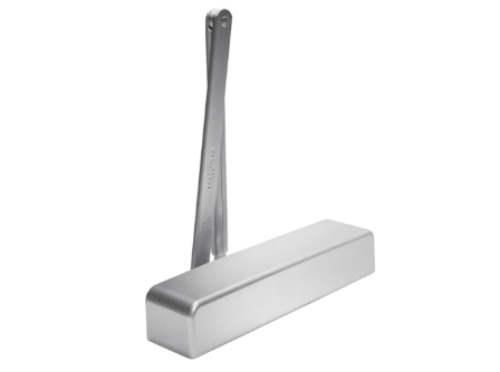

Dormakaba 8916 FHP Door Closer w/ Friction Hold Open Arm

Dormakaba 8916 FHP Door Closer with Friction Hold Open Arm (SNB1)

Non-handed for regular, top jamb and parallel arm applications.

8916 - Closers for interior and exterior barrier-free requirements (adjustable size 1-6).

Backcheck feature prevents uncontrolled opening of the door by providing an intensity adjustable hydraulic cushioning.

Backcheck positioning valve to maintain effective backcheck range on parallel arm applications.

Optional delayed action adjustable with a separate independent valve. Extends the closing cycle to allow unobstructed passage through the opening.

Designed to minimize change in closing speed during severe temperature changes.

Tamper-resistant valve adjustments, including backcheckpositioning, accessible with the closer installed.

Cover: Impact resistant, full plastic cover standard.

Heavy-duty, aesthetically pleasing, and easy to adjust steel arm assembly.

The 8900 Series is certified to the requirements of ANSI A156.4 Grade 1.

U.L. & C.U.L. listed.

In addition to all of these superior features, the 8900 Series is backed by DORMAs unprecedented 25-year warranty.

SNB1: SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard.

Model: Dormakaba,8916 FHP**689, 8916 FHP 695, 8916FHP689, 8916FHP695
