Dormakaba 8900 Series Door Closer

The dormakaba 8900 Series is the heavy-duty Grade 1 hydraulic surface-applied door closer line from dormakaba, formerly marketed as the Dorma 8900 Series under the Dorma brand before the Dorma and Kaba merger in 2015. These are the standard specification closers for institutional, commercial, and high-traffic applications including schools, hospitals, government buildings, and office complexes where a door closer must survive years of continuous operation without service.

If you've been searching for "dorma 8900 closer," "dorma 8900," "8916 closer," "dormakaba 8916," "dorma closers," "8916 dorma closer," or "dorma 8916," this is the correct category at American Locksets, trusted since 2001.

What Makes the Dormakaba 8900 Series Different

The 8900 Series is independently certified to 10 million door closing cycles, which is the standard that separates institutional closers from standard commercial Grade 1 closers. Most Grade 1 closers are certified to 2 million cycles. The 8900 carries 5 times that cycle certification, which reflects the actual service expectation of a closer on a busy school corridor door or hospital wing. The housing is corrosion-resistant aluminum. The pinion and piston are hardened steel. The arm hub is forged steel, not cast. These are not cosmetic details. They're the reason the 8900 carries a 25-year warranty.

Spring power is fully adjustable from Size 1 to Size 6 in the field without removing the closer from the door. Size 1 produces 5 lbs of opening force and meets ANSI A117.1 and ADA interior barrier-free accessibility requirements. Size 6 handles the heaviest door weights. Two independent non-critical adjustment valves control sweep and latch closing speeds separately. A backcheck positioning valve maintains consistent backcheck function across parallel arm installations. The 8900 is UL and CUL listed, meets UL10C for positive pressure, ANSI/BHMA A156.4 Grade 1, and is California State Fire Marshal (CSFM) approved.

8916 vs 8956: What Is the Difference?

The 8916 and 8956 are two sub-models within the 8900 Series that differ in door size capacity. The 8916 is sized for doors up to 48 inches wide on the interior and 42 inches wide on exterior applications, with a maximum door weight of 180 lbs. The 8956 is specified for larger, heavier doors. Both share the same body, hydraulic technology, arm compatibility, and spring power range. The choice between them is made by the door dimensions and weight listed on the door schedule.

Both the 8916 and 8956 are available across the same full arm option lineup.

Dormakaba 8900 Series Arm Options: Which One to Specify

The arm configuration is the most consequential selection in the 8900 Series catalog. Getting the arm wrong creates a functional problem that requires returning the entire closer package.

Flat Arm (AF89P)

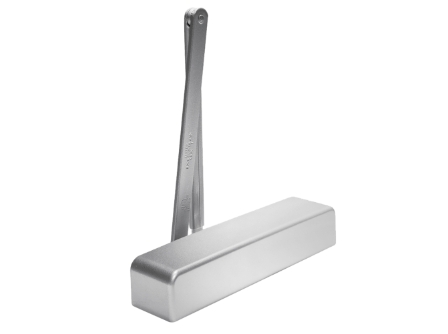

The 8916 AF89P and 8956 AF89P are specified for top jamb installations where the closer body mounts on the door frame header and the arm connects to the door face. The flat arm profile keeps a low projection into the opening. The AF89P arm covers a 4" to 8" reveal range.

Super Parallel Arm (SPA and SPAT)

The 8916 SPA and 8956 SPA mount the closer body on the push side of the door with the arm running parallel to the door face. Parallel arm mounting protects the closer body from vandalism and impact by keeping it on the secure side of the opening. The SPA arm is non-hold-open; the door closes fully every time.

The 8916 SPAT and 8956 SPAT add a thumb turn hold-open mechanism to the SPA configuration, allowing the door to be locked open at 90 or 125 degrees. Units can be configured for a maximum opening of 100 or 180 degrees.

Door Saver Arm (DS and DST)

The 8916 DS and 8956 DS are heavy-duty parallel arms with an integral cushioned opening function that slows the door before it reaches the stop, preventing wall and door frame damage on high-traffic openings where users push the door hard. The DS arm is non-hold-open with stop positions at 85, 90, 100, and 110 degrees. The 8916 DST and 8956 DST add thumb turn hold-open to the Door Saver arm.

Friction Hold Open Arm (FHP)

The 8916 FHP and 8956 FHP provide a hold-open function between approximately 90 and 180 degrees of door opening. Hold-open is released by pushing the door. Reveal range is 0" to 4". The arm is non-handed. Specified for loading docks, storerooms, and service corridor doors where the door needs to stay open for extended periods during deliveries or equipment movement.

Plunger Hold Open Arm (PH)

The 8916 PH and 8956 PH provide hold-open at a selected point within a range of approximately 30 to 150 degrees. Reveal range is 0" to 1-1/2". Ideal for doors that are regularly placed in and out of the hold-open position throughout the day, such as classroom corridor doors or clinic room doors.

Cushion IS Arm (IS)

The 8916 IS and 8956 IS are the Integra Cushion arm configuration, providing a cushioned opening function for regular and top jamb applications at 85, 90, 95, 100, 105, and 110 degrees. Reveal range is 0" to 3-1/2". The IS arm is specified on hospital room doors, pharmacy doors, and other openings where consistent controlled opening is required to prevent impact damage.

Track Arm (T)

The 8916 T and 8956 T are pull-side mount track arm closers, where the closer body mounts on the pull face of the door and the arm slides in a track mounted on the frame header. Track arm mounting is used on exterior vestibule doors, mall entrances, and storefront applications where the push side of the door is glass or narrow aluminum stile.

Browse the complete dormakaba 8900 Series door closer catalog at American Locksets. For S.Parker and other closer brands, see the full door closers category. For dormakaba lever locks and exit devices, see the commercial locks catalog.

Frequently Asked Questions About the Dormakaba 8900 Series Door Closer

Q: What is the difference between the Dorma 8900 and dormakaba 8900?

Same product, different brand name. Dorma and Kaba merged in 2015 to form dormakaba. The 8900 Series model numbers and specifications are unchanged. "Dorma 8900 closer" and "dormakaba 8900" refer to the same closer line.

Q: What is the difference between the 8916 and 8956?

The 8916 handles doors up to 48" wide interior and 180 lbs. The 8956 is specified for larger, heavier doors. Both use the same body, hydraulics, and arm options.

Q: What arm configuration should I order?

Arm depends on mounting position and function:

• SPA/SPAT: Push side parallel arm, protected installation
• DS/DST: Parallel arm with cushioned opening protection
• FHP: Friction hold open, 90-180 degree range
• PH: Plunger hold open, 30-150 degree selectable
• T: Track arm for pull side mount applications

Q: Is the dormakaba 8916 ADA compliant?

Yes. At Size 1 (5 lbs opening force), the 8916 meets ANSI A117.1 and ADA interior barrier-free accessibility requirements. Spring power is field adjustable from Size 1 to Size 6 without door removal.

Q: How many cycles is the dormakaba 8900 Series certified for?

Independently certified to 10 million door closing cycles. The 8900 Series carries a 25-year manufacturer warranty.
