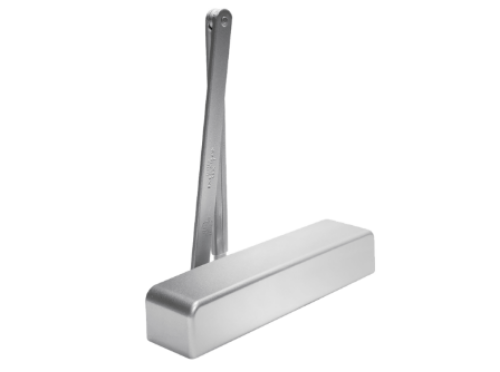

Dormakaba 8916 IS Door Closer w/ Cushion IS Arm

Dormakaba *8916 IS Door Closer with*Cushion IS Arm(SNB1)

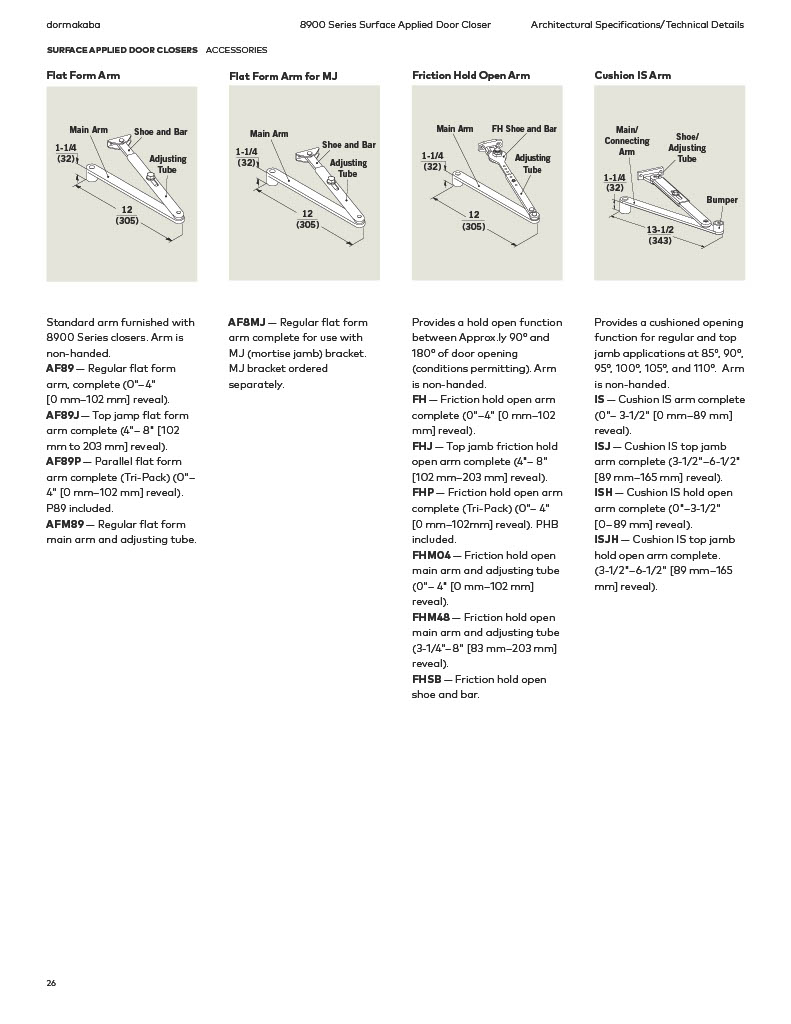

Provides a cushioned opening function for regular and top jamb applications at 85, 90, 95, 100, 105, and 110. Arm is non-handed.

ISCushion IS arm complete (0" - 3-1/2" [0 mm 9 mm] reveal).

8916- Closers for interior and exterior barrier-free requirements (adjustable size 1-6).

Backcheckfeature prevents uncontrolled opening of the door by providing an intensity adjustable hydraulic cushioning.

Backcheck positioning valve to maintain effective backcheck range on parallel arm applications.

Optional delayed actionadjustable with a separate independent valve. Extends the closing cycle to allow unobstructed passage through the opening.

Designed to minimize change in closing speed during severe temperature changes.

Tamper-resistant valve adjustments, including backcheckpositioning, accessible with the closer installed.

Cover:Impact resistant, full plastic cover standard.

Heavy-duty, aesthetically pleasing, and easy to adjust steel arm assembly.

The 8900 Series is certified to the requirements of ANSI A156.4Grade 1.

U.L. & C.U.L. listed.

In addition to all of these superior features, the 8900 Series is backed by DORMAs unprecedented 25-year warranty.

SNB1:SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard.

Model:Dormakaba,8916IS**689, 8916IS 695, 8916IS689, 8916IS695
