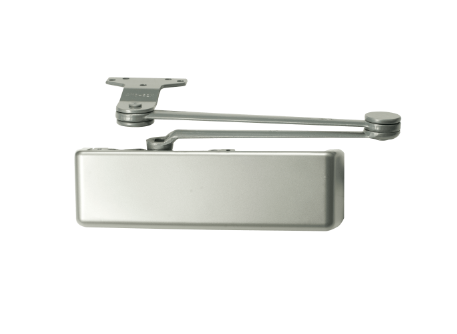

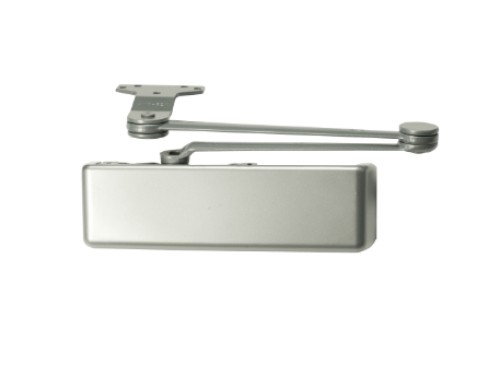

LCN 4111-AVB Door Closer - Mounting Parallel Arm (Push Side) - w/ Extra Duty Arm (EDA)

LCN 4111-AVB Heavy Duty Door Closer - w/ Extra Duty Arm (EDA).

AVB - Advanced Variable Backcheck**cylinder starts backcheck at approximately 4 5 instead of the normal 7 5.

Finish: Powder Coat

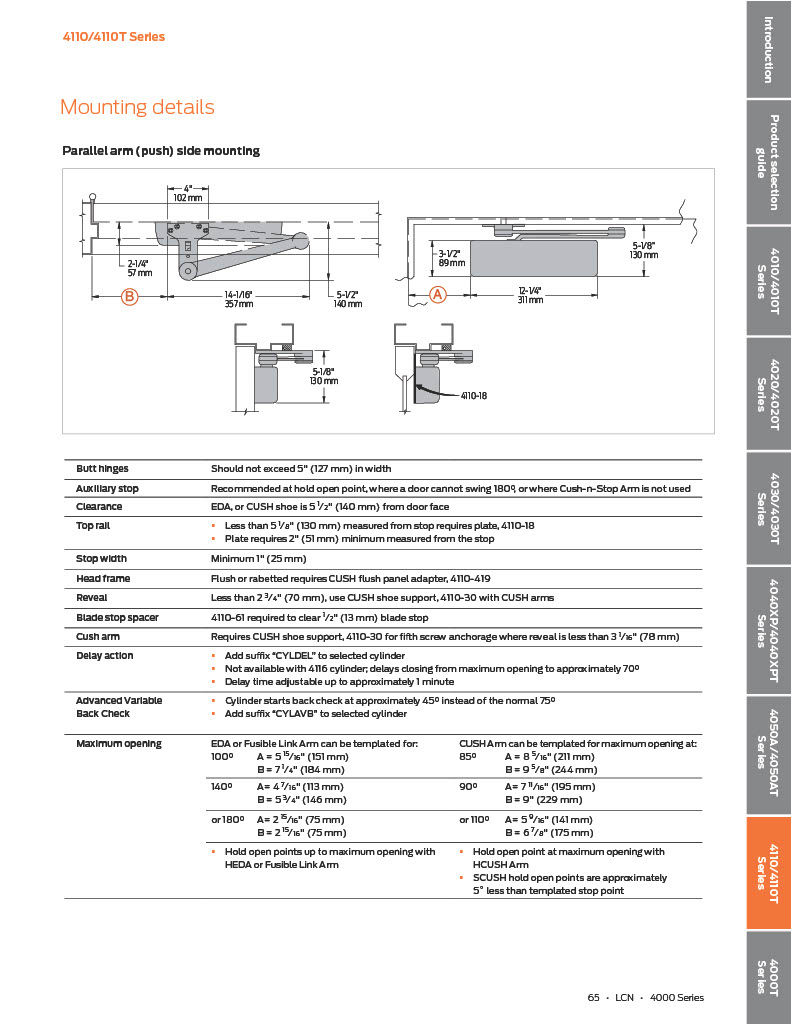

Closer Mounting: Closer mounts parallel arm(Push Side) only.

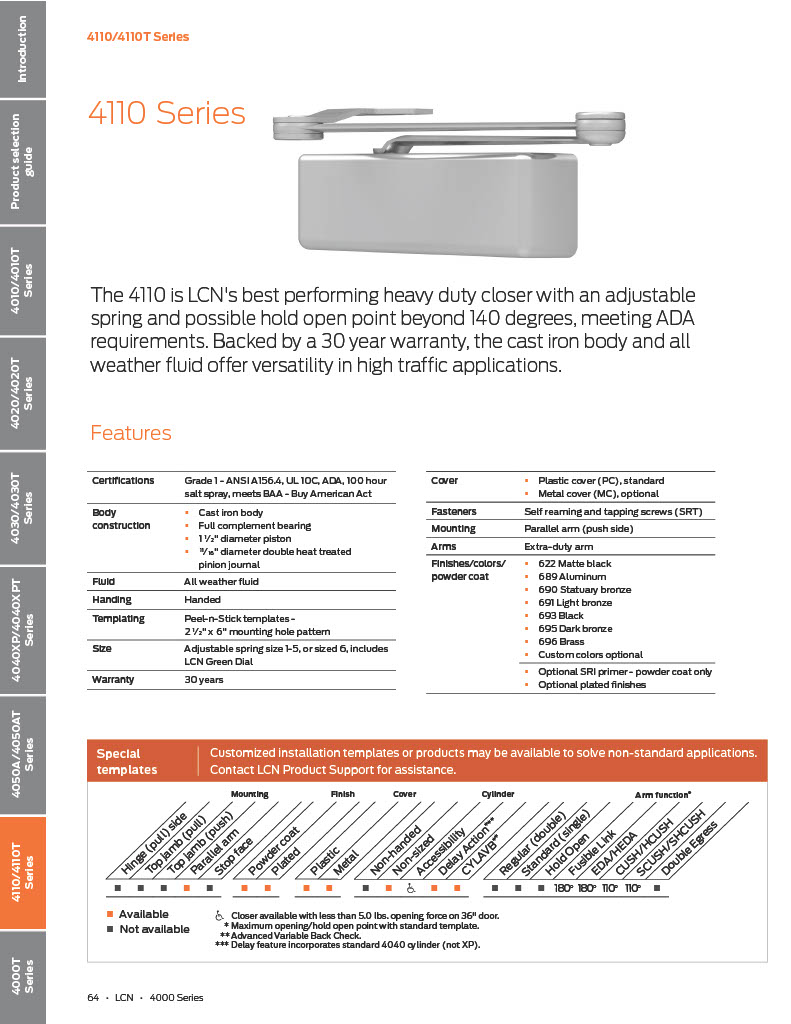

LCN 4110 Series: Cast Iron  - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCN Fast Power Adjust - Fast & Accurate Installation.

Power size: Non-sized cylinder (4111) adjustable for interior doors to 4'6" and exterior doors to 3'6" .

Handing: Handed; specify right or left swinging door

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

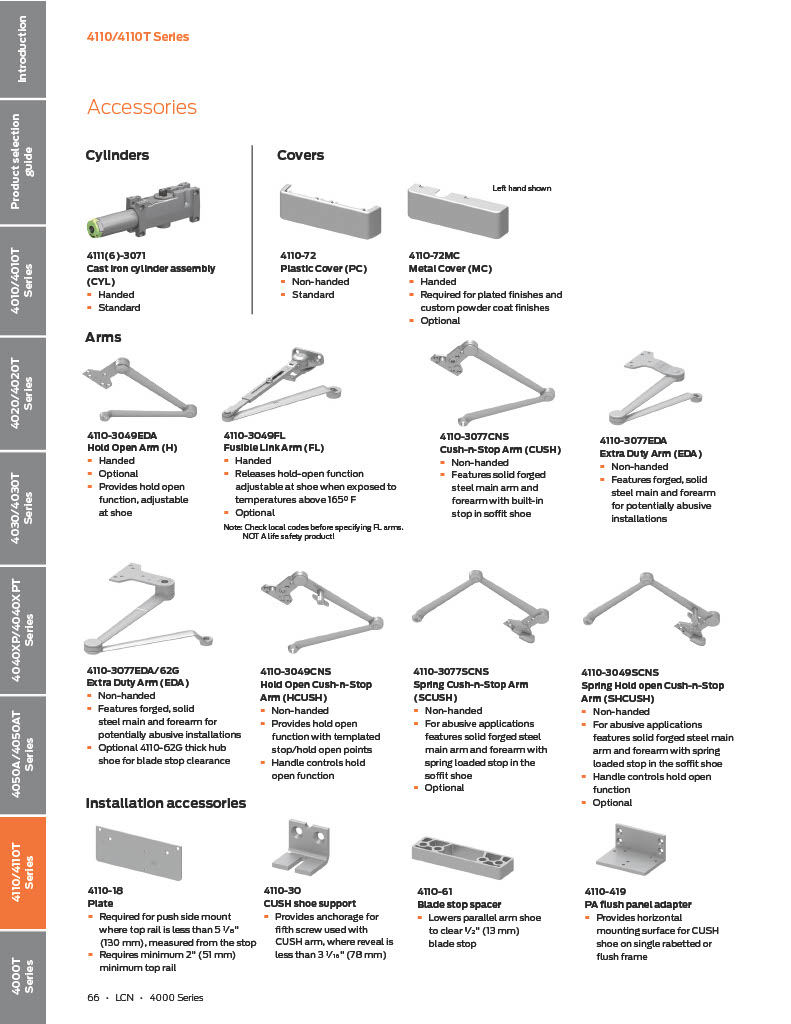

Arm: Extra Duty Arm, 4110-3077EDA, Non-handed parallel arm features forged, solid steel main and forearm for potentially abusive installations.

Cover: 4110-72 Standard, non-handed plastic cover.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695

Model: LCN, 4111-AVB, 4111-AVB-EDA, 4111AVB, 4111AVBALUM, 4111DAVBKBRZ, RH, LH, 4111AVBRHALUM, 4111AVBLHALUM, Right Hand, Left Hand, Delayed Action (DEL).
