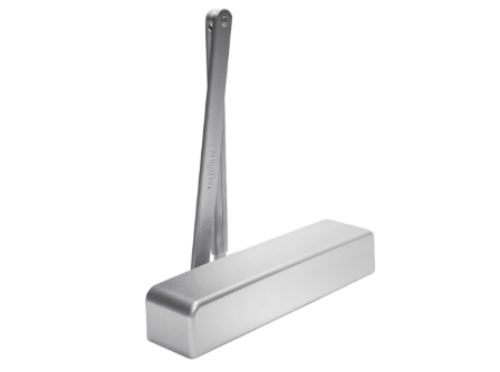

Dormakaba 8956 PH Door Closer w/ Plunger Hold Open Arm

Dormakaba 8956 PH Door Closer with Plunger Hold Open Arm (SNB1)

Provides a hold open function at a selected point within a range from approximately 30 Degree 150 Degree(conditions and installation applications permitting). Ideal for doors frequently placed in and out of hold open. Arm is non handed.

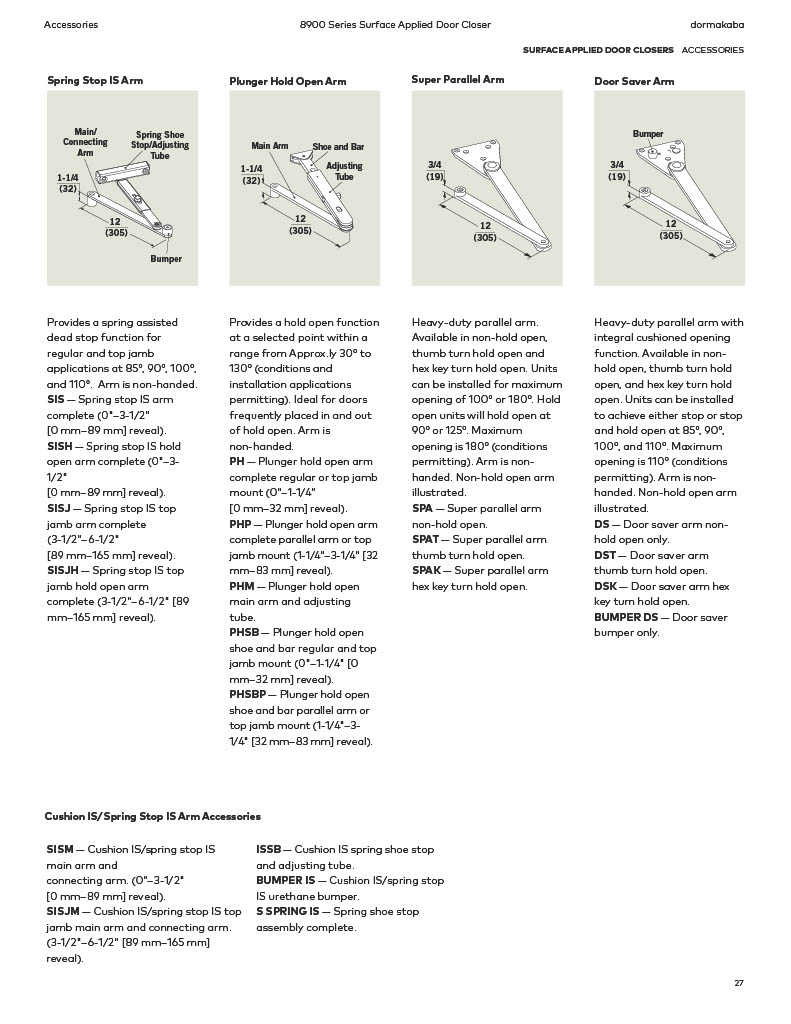

PH Plunger hold open arm complete regular or top jamb mount (0" 1-1/2" [0 mm38 mm] reveal).Non-handed for regular, top jamb and parallel arm applications.

8956 - Closers for exceptionally wide, tall, or heavy doors (adjustable size 5 to 6 +50% adjustment).

Backcheck feature prevents uncontrolled opening of the door by providing an intensity adjustable hydraulic cushioning.

Backcheck positioning valve to maintain effective backcheck range on parallel arm applications.

Optional delayed action adjustable with a separate independent valve. Extends the closing cycle to allow unobstructed passage through the opening.

Designed to minimize change in closing speed during severe temperature changes.

Tamper-resistant valve adjustments, including backcheckpositioning, accessible with the closer installed.

Cover: Impact resistant, full plastic cover standard.

Heavy-duty, aesthetically pleasing, and easy to adjust steel arm assembly.

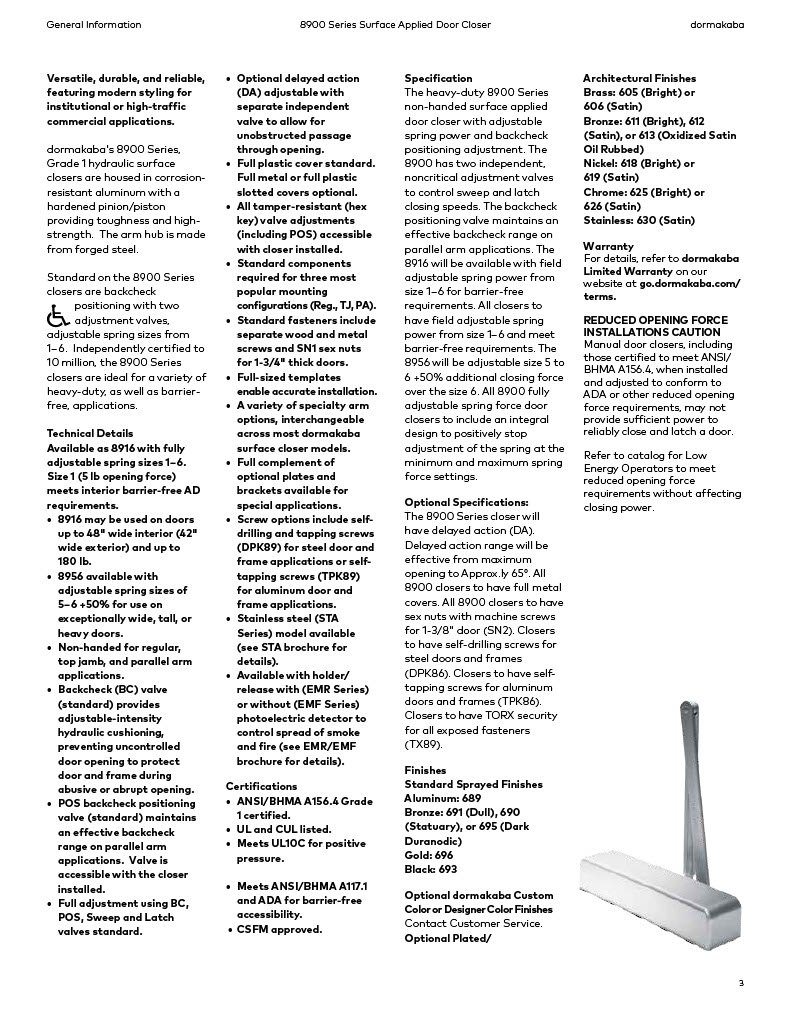

The 8900 Series is certified to the requirements of ANSI A156.4 Grade 1.

U.L. & C.U.L. listed.

In addition to all of these superior features, the 8900 Series is backed by DORMAs unprecedented 25-year warranty.

SNB1: SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard.

Model: Dormakaba,8956 PH 689, 8956 PH 695, 8956PH689, 8956PH695
