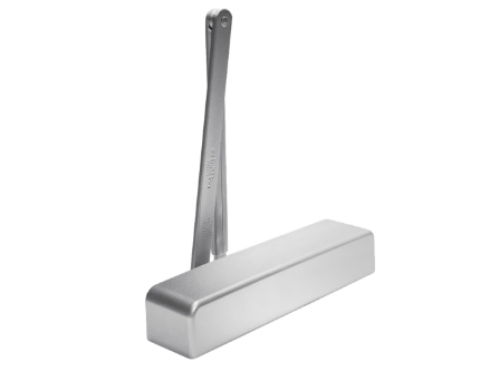

Dormakaba 8956 SPAT Door Closer w/ Super parallel arm thumb turn hold open

Dormakaba 8656 SPAT Door Closer with Super parallel arm thumb turn hold open (SNB1)

Units can be installed for maximum opening of 100 Degree or 180 Degree. Hold open units will hold open at 90 Degree or 125 Degree. Maximum opening is 180 Degree (conditions permitting). Arm is nonhanded.

Non-hold open arm illustrated.

SPAT - Super parallel arm thumb turn hold open.

8956 - for exceptionally wide, tall, or heavy doors (adjustable size 5 to 6 +50% adjustment).

Backcheck feature prevents uncontrolled opening of the door by providing an intensity adjustable hydraulic cushioning.

Backcheck positioning valve to maintain effective backcheck range on parallel arm applications.

Optional delayed action adjustable with a separate independent valve. Extends the closing cycle to allow unobstructed passage through the opening.

Designed to minimize change in closing speed during severe temperature changes.

Tamper-resistant valve adjustments, including backcheckpositioning, accessible with the closer installed.

Cover: Impact resistant, full plastic cover standard.

Heavy-duty, aesthetically pleasing, and easy to adjust steel arm assembly.

The 8900 Series is certified to the requirements of ANSI A156.4 Grade 1.

U.L. & C.U.L. listed.

In addition to all of these superior features, the 8900 Series is backed by DORMAs unprecedented 25-year warranty.

SNB1: SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard.

Model: Dormakaba,8956SPAT 689, 8956SPAT 695, 8956SPAT689, 8956SPAT695
