Dormakaba 9300B Rim Panic Exit Device - 36" Length - Exit Only

About this item

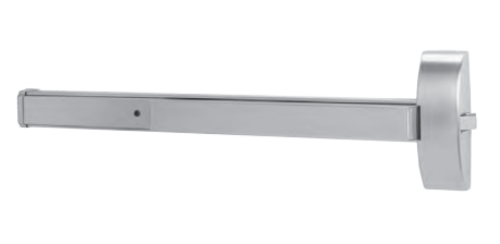

The dormakaba 9300B is a Grade 1 heavy-duty wide stile rim panic exit device from the dormakaba 9000 Series, 36-inch length, exit only function. Also referenced in the field as the DORMA 9300B from the legacy DORMA brand name before the Dorma and Kaba merger. The B designation identifies Size B, designed for doors 28 inches to 36 inches wide, with a touchpad length of 18-5/8 inches. Outside exit device trim is sold separately. American Locksets is an authorized dormakaba dealer stocking the 9300B with same-day shipping and free shipping on orders over $300.

dormakaba DORMA 9300B: 9000 Series Heavy Duty Construction

The 9000 Series is dormakaba's premium exit device platform, specified for high-impact applications in schools, universities, healthcare facilities, government buildings, and institutional commercial properties. The 9300B carries the same cast chassis and construction as the rest of the 9000 Series line, with a heavy-duty cast mechanism case providing superior durability against repeated high-traffic use and abuse.

The smooth, reduced-projection touchbar assembly on the 9300B minimizes catch hazards on the door face. The partial-length touchpad design accommodates field installation of options including cylinder dogging kits and exit alarm accessories without returning the device to the factory or replacing the main assembly. Wide stile touchbar, rail, latch bolt covers, and end cap are fabricated and finished in true base metal for true architectural finishes, not plating over dissimilar materials.

dormakaba 9300B Specifications

• SKU: 9300B

• Series: dormakaba DORMA 9000 Series, 9300/F9300 Rim Exit Devices

• Size: B, for doors 28 inch to 36 inch width. Touchpad length 18-5/8 inch

• Device Length: 36 inch

• Function: Exit only. Outside trim sold separately

• Door Thickness: Standard 1-3/4 inch to 2-1/4 inch

• Strike: No. 463 standard, 4-1/2 inch x 1-5/8 inch. Maximum door opening 4 feet x 8 feet

• Chassis: Heavy-duty cast construction

• Dogging: Hex key dogging standard (non-labeled devices). Mortise cylinder dogging available, specify CD

• Certifications: ANSI/BHMA A156.3 Grade 1. UL and CUL listed. Conforms to UL 10C positive pressure testing. Complies with NFPA 101 Life Safety Code

• Fire Rated Version: F9300B (carries A label for 3-hour steel fire door applications). Complies with NFPA 80 for fire doors and windows

• ADA: Devices, trim, pulls, and levers comply with ADA 1994 and ICC A117.1 for accessible and usable buildings

• Hurricane: Hurricane code approved to Miami-Dade County Florida Acceptance No. 06-912.05. Florida State Building Code listed

• LEED: Contributes to LEED MR Credits 2.1, 4.1, 4.2, and 5.1

• Warranty: 10-year mechanical, 2-year electronic integral components and accessories

9300B vs. F9300B: Panic vs. Fire-Rated

The 9300B is the panic hardware version, UL listed for panic applications only. The F9300B is the fire exit hardware version, carrying an A label for 3-hour steel fire door applications and complying with NFPA 80. Both are ANSI Grade 1, UL 10C positive pressure listed. On openings with a fire door label, the F9300B is the required specification. On non-fire-rated egress openings, the 9300B is correct.

Available Electric Options on the 9300 Series

The 9300 platform supports a full range of electromechanical options available at the factory or as field-installable kits. These include ES (electric latch retraction for remote access), MLR (motorized latch retraction), alarm exit kits, latch bolt monitors, and cylinder dogging. Electric latch retraction must be powered by a PS-501 power supply and use the ES-105 power transfer.
