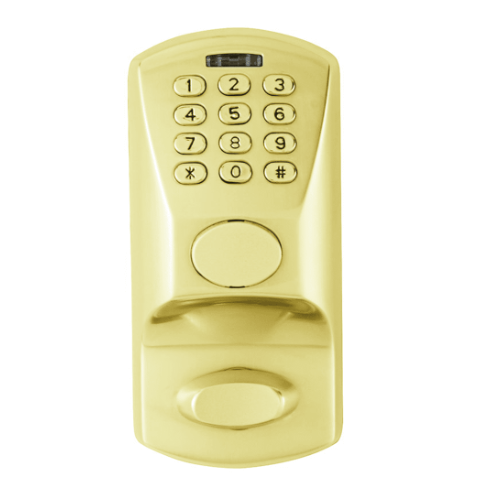

Dormakaba E1502 605 41 Electronic Pushbutton Deadbolt Lock W/ Key Override, Bright Brass

Dormakaba* E1502 605 Electronic Pushbutton Deadbolt Lock W/ Key Override, *Bright Brass

Access Control:Small, sleek keyless electronic pushbutton deadbolt lock replaces existing deadbolt and eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by PIN code, while allowing free egress.

No Wires:Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks

Locking Device Options:Mechanical 1" throw deadbolt

Number of Codes:Multiple Users—100 Codes

Audit Trail:The most recent 1,000 lock Events are recorded in memory, including the use of mechanical key override. Software is required to view audit Events.

 Programming:Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software

Key Override:Kaba 1539 6-pin cylinder; Schlage "C" Keyway

Operation Modes:  PIN access  Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours  Lockout

Authority Levels (5):Authority levels allow who has access to specific lock operations, including:

 Master  Manager Service User (one-time access or "come-and-go" access for 1 to 24 hours)  Access User  Maintenance Unit User

User Parameters:

Code length–adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds

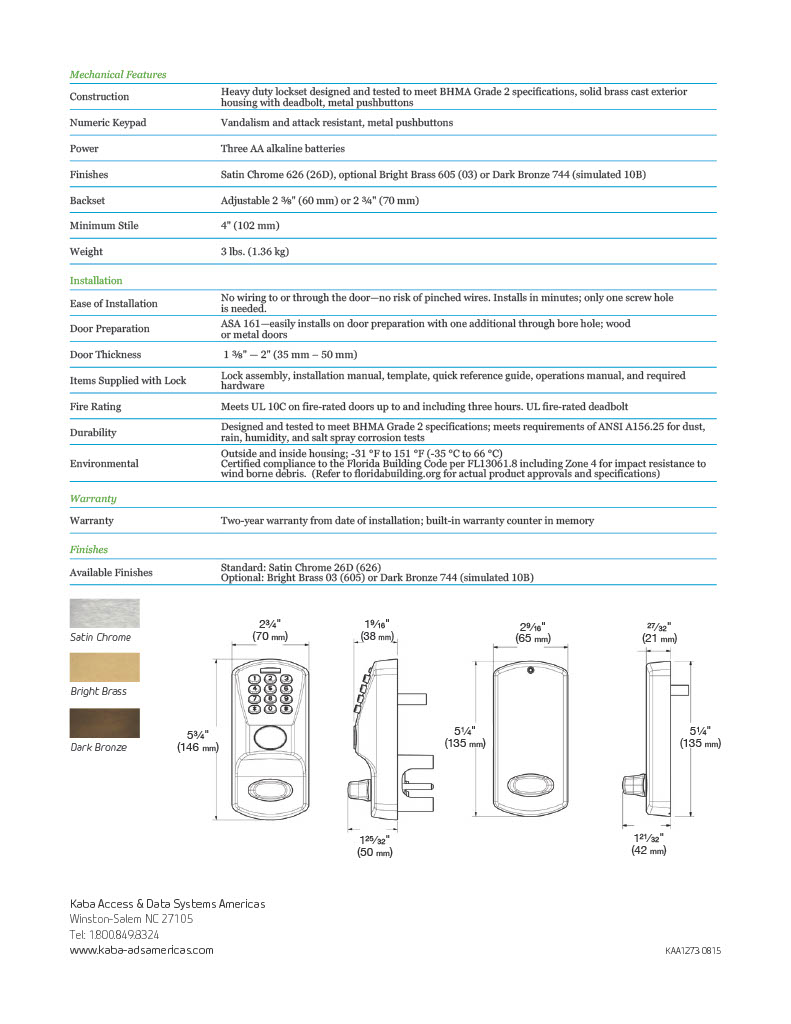

Mechanical Features

Construction:Heavy-duty Grade 2 lockset, solid brass cast exterior housing with deadbolt, metal pushbuttons

Numeric Keypad:Vandalism and attack resistant, solid metal pushbuttons

Power:Three AA Alkaline batteries

Finishes:Satin Chrome 626 (26D), optional Bright Brass 605 (03),

Backset: Adjustable 2⅜" (60 mm) or 2¾" (70 mm)

Minimum Stile:4" (102 mm)

Ease of Installation:No wiring to or through the door—no risk of pinched wires. Installs in minutes; only one screwhole is needed.

Door Preparation:ASA 161—easily installs on door preparation with one additional through bore hole; wood or metal doors**

Door Thickness:1⅜" (35 mm) to 2" (50 mm)

Items Supplied Include:Lock assembly, installation manual, template, quick reference guide, operations manual, and required hardware

Fire Rating:Meets UL 10C on fire-rated doors up to and including three hours UL fire-rated deadbolt

Durability: BHMA 156.36, Grade 2; meets requirements of ANSI A156.25 for dust, rain, humidity, and salt spray corrosion tests

Environmental:Outside and inside housing; -31 Degree F to 151 Degree F (-35 Degree C to 66 Degree C)

Warranty:2-year warranty from date of installation; built-in warranty counter in memory

Model: Dormakaba E-1502, E1502, E 1502,
