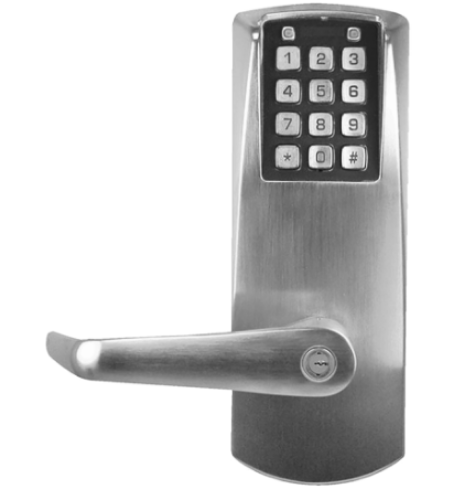

DormaKaba P2031XSLL-626-41 PowerPlex Cylindrical Lock, 2-3/4" Backset, 1/2" Throw, KIL, Schlage C Keyway, Satin Chrome Finish

About this item

The DormaKaba P2031XSLL-626-41 is the Kaba PowerPlex 2000 cylindrical keypad lock with a Schlage C keyway key-in-lever cylinder, 2-3/4" backset, satin chrome 626 finish, and ADA-compliant lever. It's the specific PowerPlex 2000 configuration for facilities that need both PIN code access and a keyed mechanical backup in the same unit, keyed to an existing Schlage C masterkey system, in a satin chrome finish that matches standard commercial hardware schedules.

Self-Powered: No Batteries, No Wiring

The P2031XSLL-626-41 runs on dormakaba's patented PowerStar technology. Every turn of the lever generates and stores energy in built-in super capacitors. There are no batteries to replace, no wiring to run through the door or frame, and no power supply to install. The lock powers itself. Pressing the first digit of a valid code wakes the lock; the rest of the code is entered and the lever retracts the latch bolt. The capacitors hold a full charge for up to 10 weeks with no activity at the lock, making this Kaba PowerPlex 2000 unit the correct specification for low-traffic access points, remote locations, and facilities where battery replacement maintenance is a real cost.

Key-In-Lever Cylinder: Schlage C Keyway, Included

The XSLL suffix confirms this model ships with the key-in-lever cylinder installed. The cylinder is a Kaba 6-pin Schlage "C" keyway cylinder included in the box. This is what separates the XSLL variant from the LL (no key override) and BLL (SFIC prep, less core) configurations. For facilities already running a Schlage C masterkey system, the P2031XSLL-626-41 keys directly into the existing system. No separate cylinder purchase, no compatibility issues. The mechanical key override allows entry if the user forgets their PIN or if the lock is in lockout mode.

100 Access Codes and Five Authority Levels

The dormakaba PowerPlex 2000 stores up to 100 user codes, with code length adjustable from 4 to 8 digits. Five authority levels manage who can do what: Master (full programming), Manager (common programming tasks), Access User (PIN entry), Service (single-event or single-day codes), and Maintenance (data transfer only, no physical access). The lock has three operation modes: PIN access, Passage, and Lockout. Lockout deactivates all regular user codes while keeping Master and Manager codes active, giving facilities immediate control over a compromised entry point.

The audit trail records the 1,000 most recent lock events, including mechanical key override use. Viewing the audit trail requires the optional dormakaba Excel-based management software.

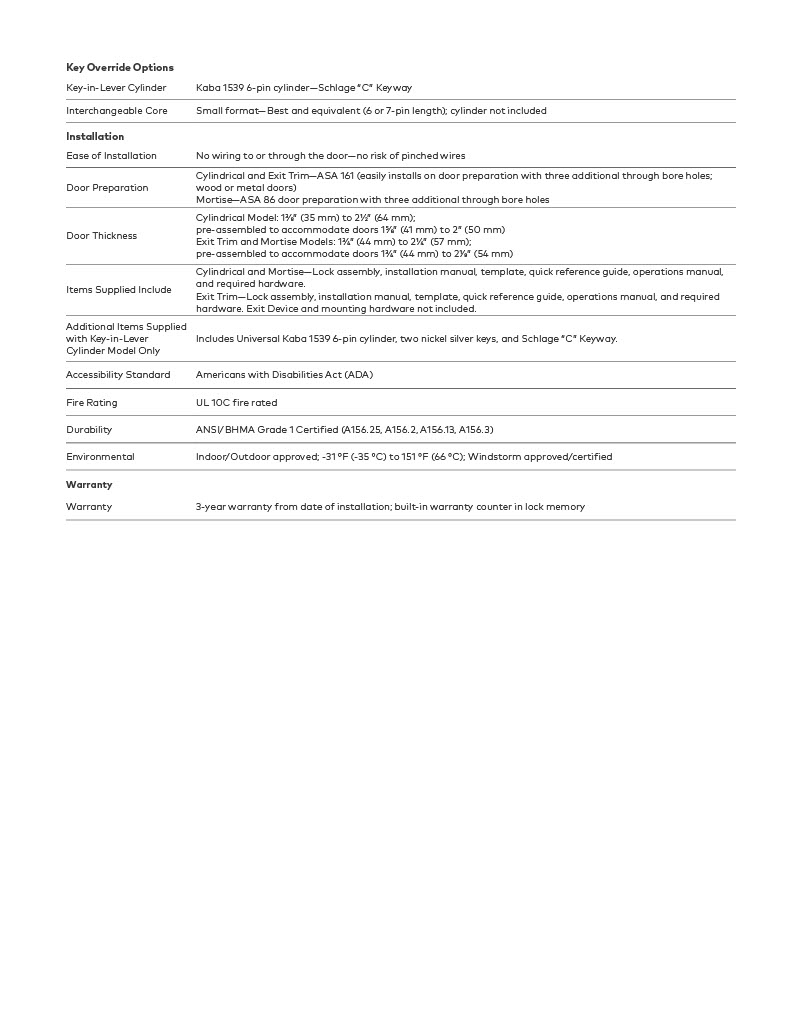

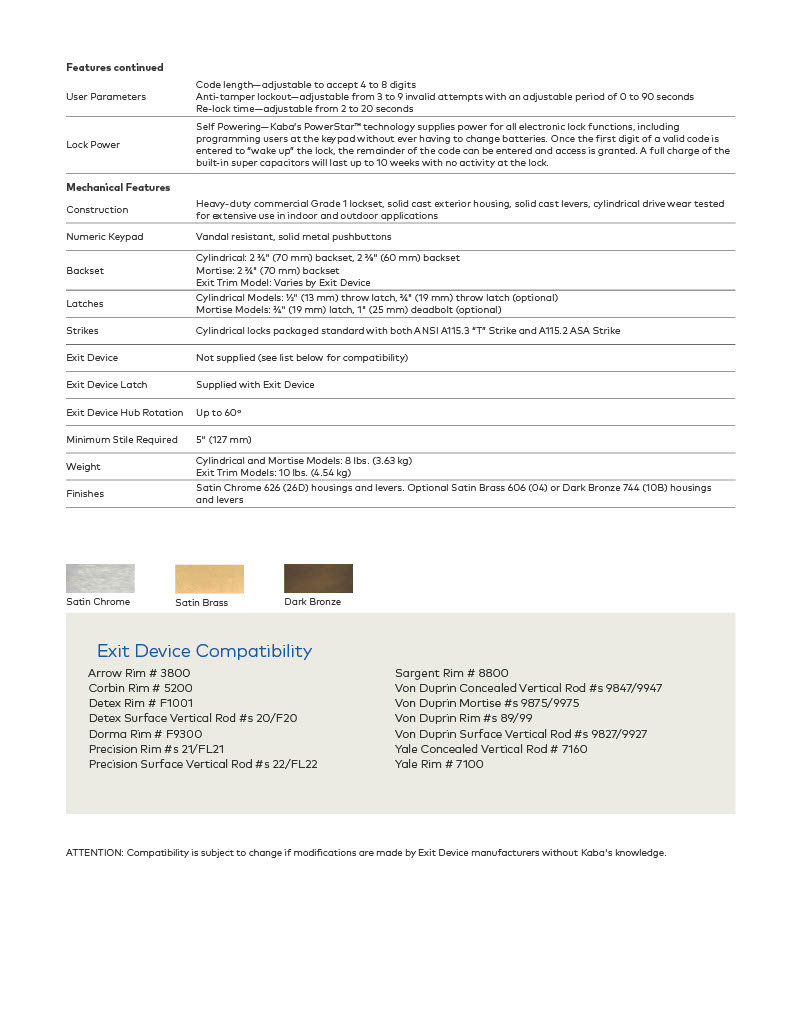

Specifications

• Model: P2031XSLL-626-41

• Series: dormakaba PowerPlex 2000 / Kaba PowerPlex / Power Plex 2000

• Cylinder: Kaba 6-pin, Schlage C keyway, included

• Backset: 2-3/4" standard

• Latch throw: 1/2"

• Finish: 626 Satin Chrome

• Grade: Heavy Duty Commercial Grade 1, ADA compliant lever

• Handing: Non-handed; installs on left or right hand doors

• Door thickness: 1-3/8" to 2-1/2"

• Minimum stile: 5"

• Latch fire rating: 3-hour UL/ULC

• Use: Indoor and outdoor approved

• Warranty: Two years from date of installation

• Codes: 100 user codes, 4 to 8 digits

The P2031XSLL-626-41 installs in a standard cylindrical door prep without modification and programs via the keypad without removing the lock from the door. Compatible model references: P2031XSLL626, P2031XSLL26D, P2031XSLL62641, Eplex P2000PowerStar.
