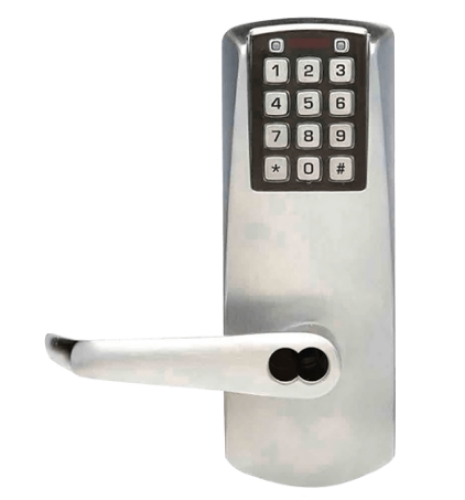

DormaKaba E201VBLL-626-41 E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Von Duprin 98/9975 Mortise Devices, 6/7-Pin SFIC Prep, Less Core, Satin Chrome

Dormakaba* E201V-B-LL-626-41 Electronic Panic Device Trim Satin Chrome - Exit TrimFor:Panic Device*

Used only for:

Von Duprin Concealed Vertical Rod #s 9847/9947 Von Duprin Mortise #s 9875/9975

( Exit Device Is Not Included )

Key Override: Small Format-Best or equivalent (6 or 7 Pin) Interchangeable Core, Core not included.

**Heavy Duty Commercial Grade 1 Lockset with ADA Lever

Users- Multiple User-100 Codes

3 Operation Modes - PIN access, Passage, Lockout.

Lock is easily programmed via keypad or with optional Eplex Software

Audit Trail - Most recent 1000 lock events are recorded, software is required to view events.

Non-handed, works for Right Hand and Left Hand Doors

5" Minimum Stile

1¾" (44 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

Indoor/Outdoor Approved

Two Year Warranty from date of installation

**Model: Dormakaba E201V, E201VBLL, E201VBLL626, E201VBLL26D, E201VBLL62641, Eplex 2000
