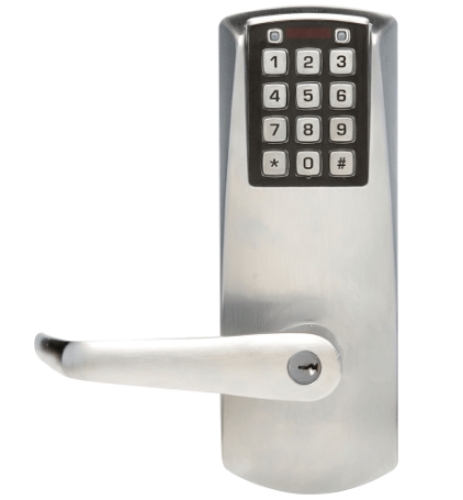

DormaKaba E201YXSLL-626-41 E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Yale 7100, Corbin ED5200 Rim Devices, KIL, Schlage C Keyway, Satin Chrome

Dormakaba* E201Y-XS-LL-626-41 Electronic Panic Device Trim Satin Chrome - Exit Trim*For: Panic Device

Exit Trim Used only for:

Yale Concealed Vertical Rod # 7160 Yale Rim # 7100 Corbin Rim # 5200

( Exit Device Is Not Included )

Key Override Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

Heavy Duty Commercial Grade 1 Lockset with ADA Lever

**Users- Multiple User-100 Codes

3 Operation Modes - PIN access, Passage, Lockout.

Lock is easily programmed via keypad or with optional Eplex Software

Audit Trail - Most recent 1000 lock events are recorded, software is required to view events.

Non-handed, works for Right Hand and Left Hand Doors

5" Minimum Stile

1¾" (44 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

Indoor/Outdoor Approved

Two Year Warranty from date of installation

**Model: Dormakaba E201Y, E201YXSLL, E201YXSLL626, E201YXSLL26D, E201YXSLL62641, Eplex 2000
