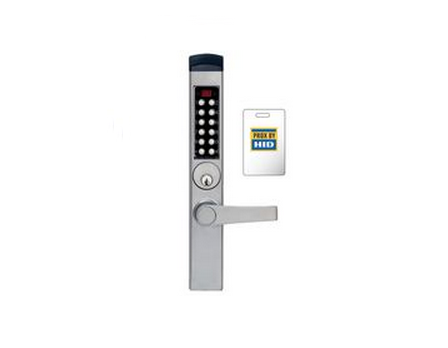

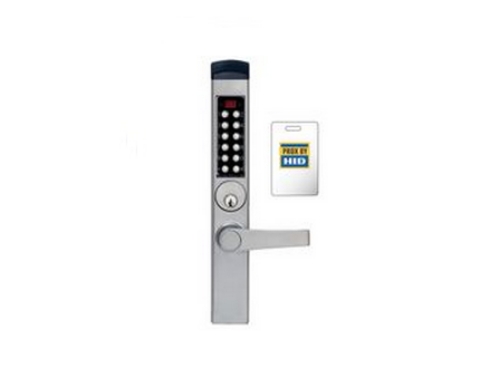

Dormakaba E3765MSNL626-41 Narrow Stile Lever Trim For Mortise Dead Latch - Prox

Dormakaba* E3765-MS-NL-626-41 Narrow Stile Lever Trim With Pin/Prox Access For Mortise Dead Latch - Lever - Satin Chrome*

Locking Device:  Mortise Dead Latch for Adams Rite 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, and 4920AN. Also fits 8400 Mortise Exit.

( Locking Device Not Included )

Key Override Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

Access Control:

Electronic PIN/PROX lock for narrow stile aluminum glass doors—with dual credential capability—PIN and/or PROX card (HID,125 kHz, 26 to 84-bit format). Lock is scheduled to require credentials based on security and convenience requirements.  PIN only  PROX card only  PIN + PROX card

Minimum Stile Recommended:2" (51 mm)

Number of Codes:Multiple Users—3,000 Users; (300 using LearnLok feature)

Audit Trail:30,000 Events with optional software

Programming:Locks are programmed with required Enterprise Software—simplifies management of doors and users for larger facilities as number of users and access points grow

Operation Modes:  PIN access  Lockout  Passage—PIN or key enabled, can be pre-programmed to re-lock after a certainnumber of hours (from 1 to 24)

Authority Levels:Six different levels allow who has access to specific lock functions, including: Service Codes from single event up to four-day access, programmable in advance, and super user with 24-7 PIN access

User Parameters: Code length: adjustable to accept 4 to 8 digits Anti-tamper lockout: adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time: adjustable from 2 to 20 seconds           Battery Operation:Batteries located in tamper-proof base of outside housing. Four AA Alkaline batteries provide up to 120,000 cycles. Lock data is maintained if batteries fail. Warning light notifies low battery.            Ease of Installation:   No wire installation—eliminates wiring to or through the door—no risk of pinched wires

Construction:Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications

Numeric Keypad:Vandal resistant, solid metal pushbuttons

Handing: Non-handed, easily changed in the field           Standard Finish:Satin Chrome 626 (26D) housing and lever

Backset:31⁄32" (25 mm) minimum

Key Override:

Mortise Cylinder: Mortise Cylinder in Schlage "C" Keyway

Interchangeable Cores: Optional Mortise Shell accommodates small format—Best and equivalent (6-pin length)

Installation

Ease of Installation:No wire installation—eliminates wiring to or through the door—no risk of pinched wires

Door Preparation:Easily installs on narrow stile doors with four mounting screws

Door Thickness:1¾" (44 mm)

Items Supplied Include:Lock assembly, installation manual, quick reference guide, operations manual, installation template, cylinder, mounting hardware, and batteries

Certification and Testing

Accessibility Standard:American with Disabilities Act (ADA)

Durability:Designed and fully tested to meet rigid life cycle test and operating reliability per

BHMA Grade 1 requirements

Environmental: Indoor/Outdoor Approved Front Housing : -31 Degree F (-35  Degree C) to 151 Degree F (66 Degree C)

Warranty:3-year warranty from date of installation; built-in warranty counter in lock memory

model: DormakabaE3765MSNL626-41, E3765MSNL-626-41,  E3765MSNL62641, E3765-MS-NL-626-41, E3765MS-NL-626-41, E-37-6-5-B-NL-626-41
