Keypad/Prox Locks
Electronic Keypad/Proximity Lock
Dormakaba Electric Keypad/Proximity Locks
Dormakaba Eplex 5000 Series
Dormakaba E5010RWL-626, Electronic Keypad Exit Trim, IC for Sargent

Dormakaba E5010RWL-626, Electronic Keypad Exit Trim, IC for Sargent

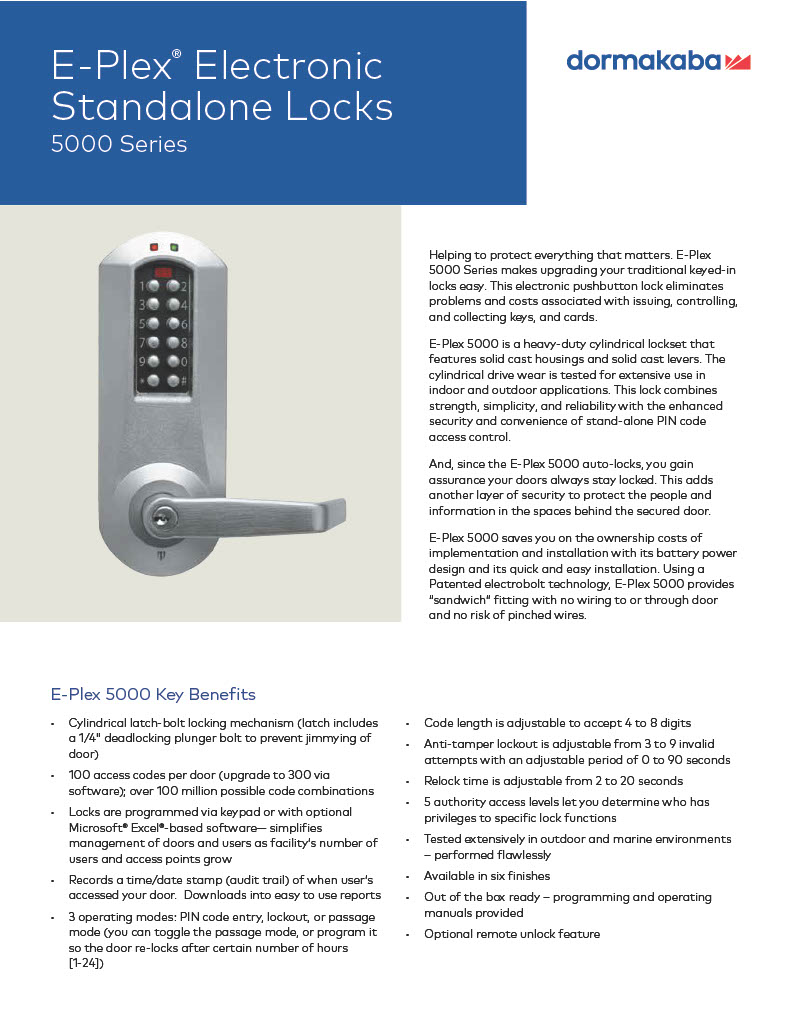

1-Page1-PLEX-5000

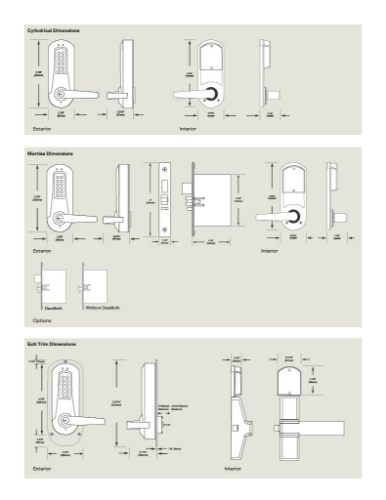

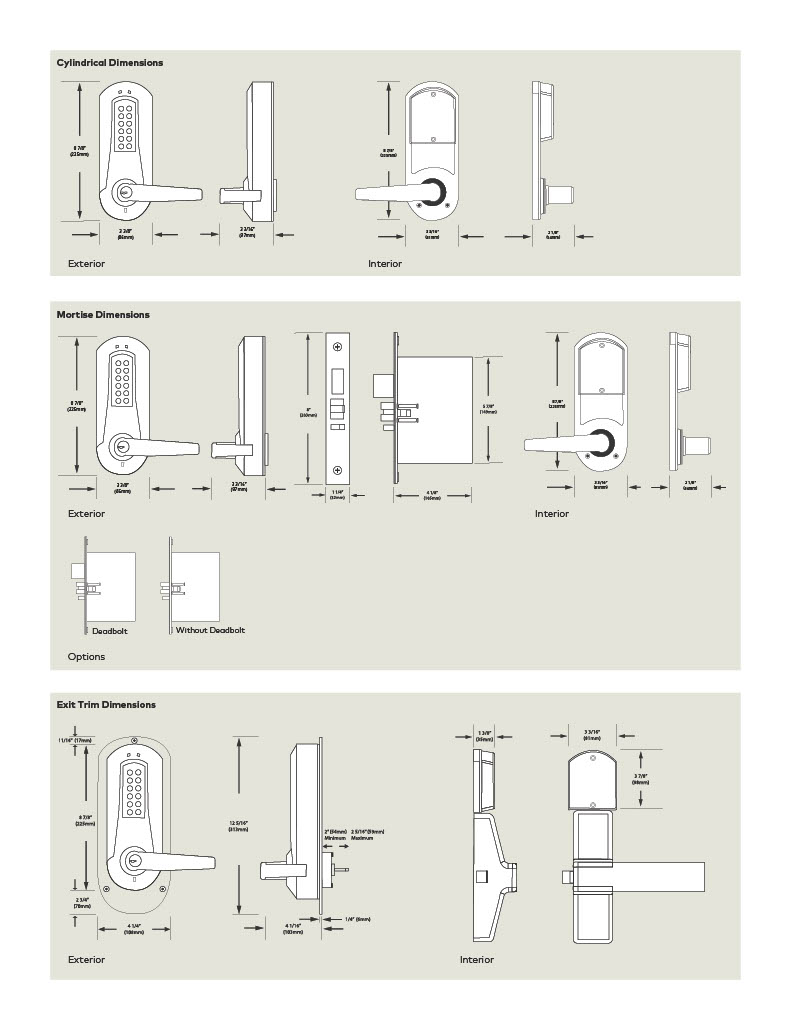

1-Page2-PLEX-5000

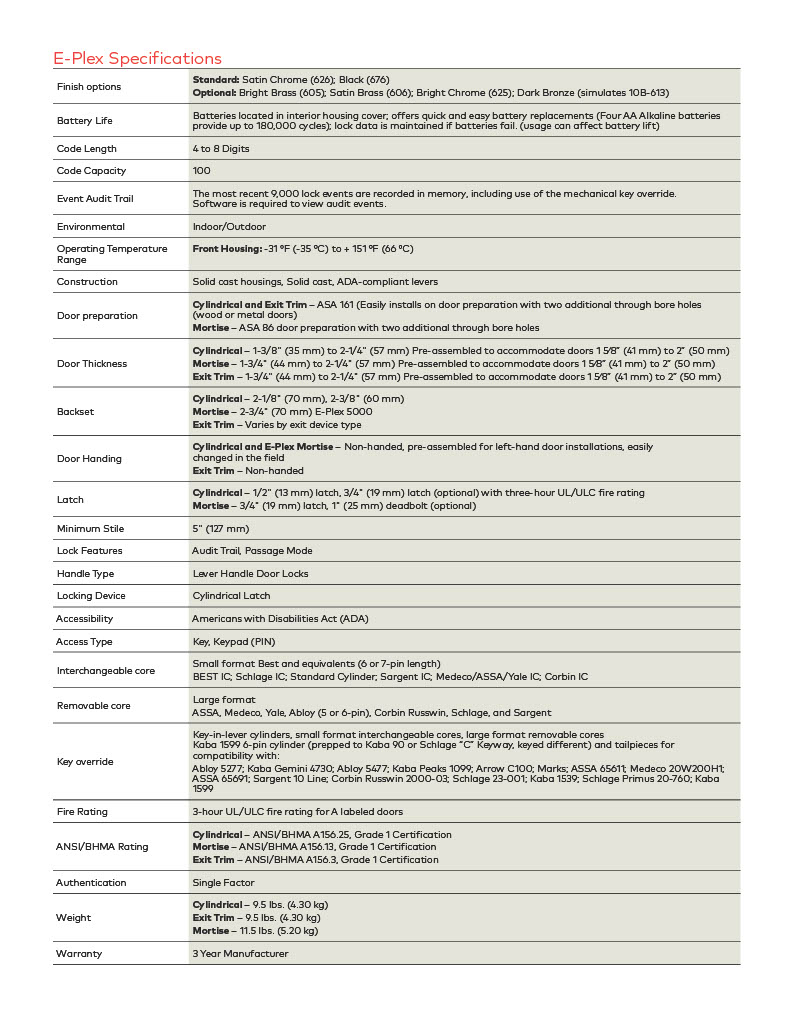

1-Page3-PLEX-5000

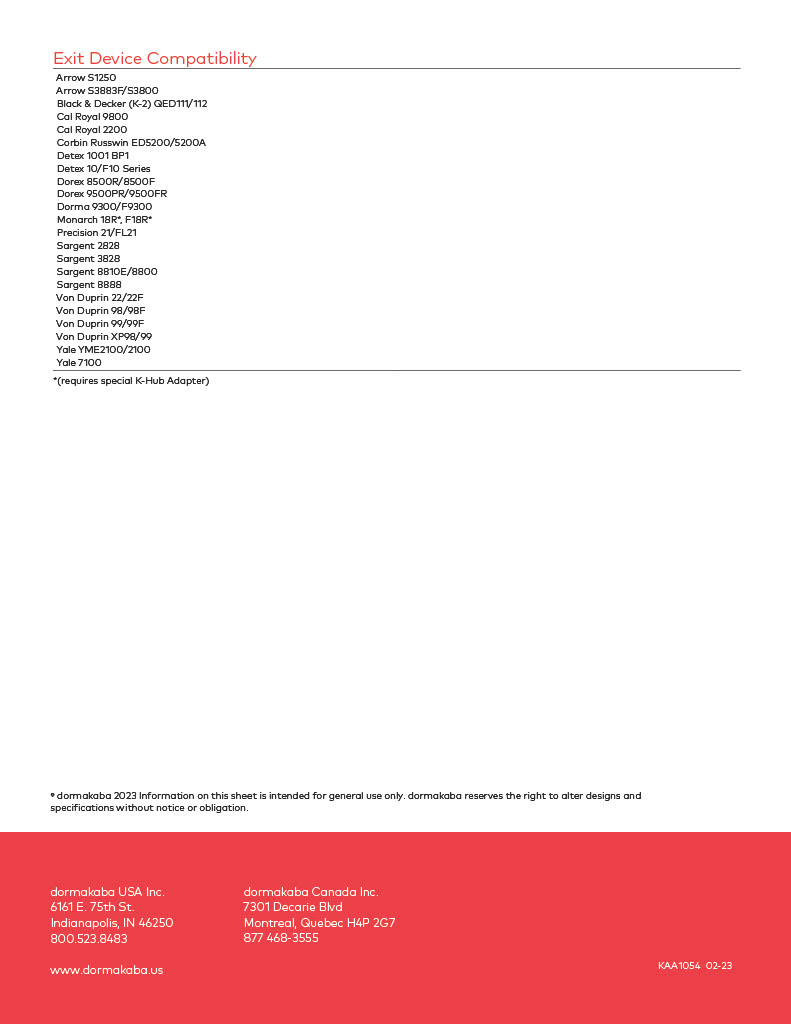

1-Page4-PLEX-5000

Product Details

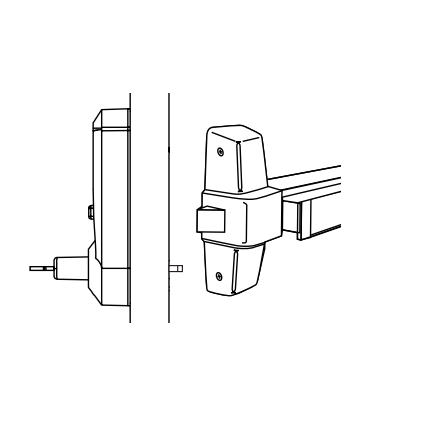

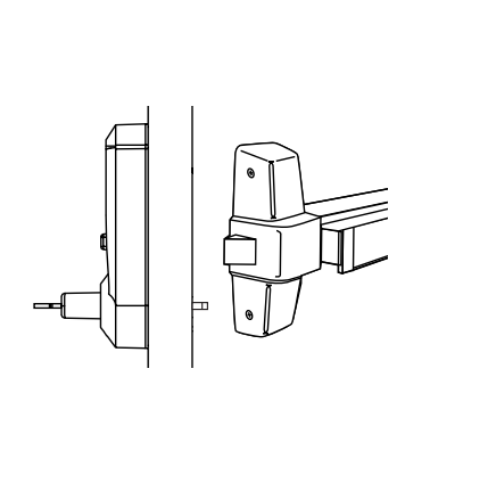

Dormakaba* 5000 E5010-R-WL Exit Device Trim*

Provides exterior access by combination and Key Override, while allowing free egress with exit device (Exit Device not supplied).

Key Override - Interchangeable Core for "Sargent" Removable Cores, Core not Included

Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed: pre-assembled for left hand door - easily changed in the field

Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty lockset, solid cast housings, solid cast levers,wear tested for exten- sive use in indoor and outdoor applications

Door Thickness:13⁄4" (44 mm) to 21⁄4" (57 mm) Pre-assembled to accommodate doors 13⁄4" (44 mm) to 21⁄8" (54 mm)

*Exit Device Compatibility:Arrow S1250, Arrow S3883F/S3800, Black & Decker (K-2) QED111/112, Cal Royal 9800, Cal Royal 2200, Corbin Russwin ED5200/5200A, Detex 1001 BP1, Detex 10/F10 Series, Dorex 8500R/8500F, Dorex 9500PR/9500FR, Dorma 9300/F9300, Dorma 9400B/F9400, Monarch 18R,F18R, Precision 21/FL21, Sargent 2828, Sargent 3828, Sargent 8810E/8800, Sargent 8888, Von Duprin 22/22F, Von Duprin 98/98F, Von Duprin 99/99F, Von Duprin XP98/99, Yale YME2100/2100, Yale 7100.(requires special K-Hub Adapter)(Exit Device not included)

ANSI/BHMA A156.3, Grade 1 Certification

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Model:DormakabaIlco E5010RWL62641, E5010RWL626, E5010RWL26D41, E5010RWL26D, Simplex Eplex 5000, E Plex 5010, E5010, E501026D

Dormakaba E5010RWL-626, Electronic Keypad Exit Trim, IC for Sargent

SKU: E5010RWL62641

In Stock

$931.30

About this item

Dormakaba 5000 Series is a Heavy Duty Commercial Grade 1 Certified Electronic Keypad Lockset with 100 Access Codes, No Wiring, No Keys, Long Battery Life, Programmable Features, Multiple Authority Levels, Easy to Install

Resources

No resources added to this product.

Dormakaba* 5000 E5010-R-WL Exit Device Trim*

Provides exterior access by combination and Key Override, while allowing free egress with exit device (Exit Device not supplied).

Key Override - Interchangeable Core for "Sargent" Removable Cores, Core not Included

Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed: pre-assembled for left hand door - easily changed in the field

Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty lockset, solid cast housings, solid cast levers,wear tested for exten- sive use in indoor and outdoor applications

Door Thickness:13⁄4" (44 mm) to 21⁄4" (57 mm) Pre-assembled to accommodate doors 13⁄4" (44 mm) to 21⁄8" (54 mm)

*Exit Device Compatibility:Arrow S1250, Arrow S3883F/S3800, Black & Decker (K-2) QED111/112, Cal Royal 9800, Cal Royal 2200, Corbin Russwin ED5200/5200A, Detex 1001 BP1, Detex 10/F10 Series, Dorex 8500R/8500F, Dorex 9500PR/9500FR, Dorma 9300/F9300, Dorma 9400B/F9400, Monarch 18R,F18R, Precision 21/FL21, Sargent 2828, Sargent 3828, Sargent 8810E/8800, Sargent 8888, Von Duprin 22/22F, Von Duprin 98/98F, Von Duprin 99/99F, Von Duprin XP98/99, Yale YME2100/2100, Yale 7100.(requires special K-Hub Adapter)(Exit Device not included)

ANSI/BHMA A156.3, Grade 1 Certification

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Model:DormakabaIlco E5010RWL62641, E5010RWL626, E5010RWL26D41, E5010RWL26D, Simplex Eplex 5000, E Plex 5010, E5010, E501026D

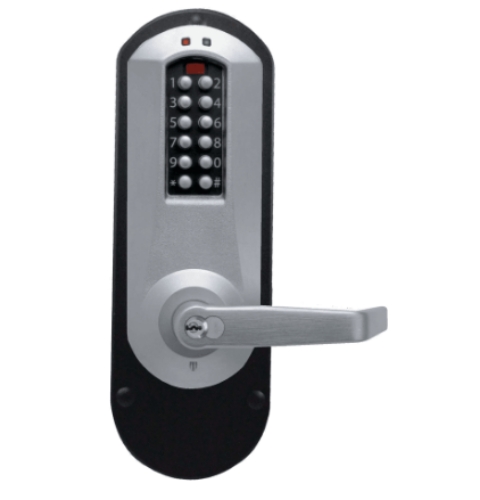

E510BWL-626

Dormakaba E5010RWL-626, Electronic Keypad Exit Trim, IC for Sargent

Product code: E5010RWL62641

In Stock

$1,390.00

$931.30

E510BWL-626

Dormakaba E5010RWL-626, Electronic Keypad Exit Trim, IC for Sargent

Product code: E5010RWL62641

In Stock

$1,390.00

$931.30
