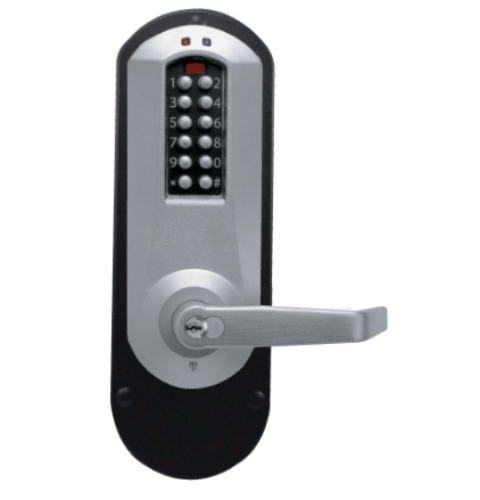

Dormakaba E5010SWL-626, Electronic Keypad Exit Trim, IC for Schlage

Dormakaba* 5000 E5010-S-WL Exit Device Trim*

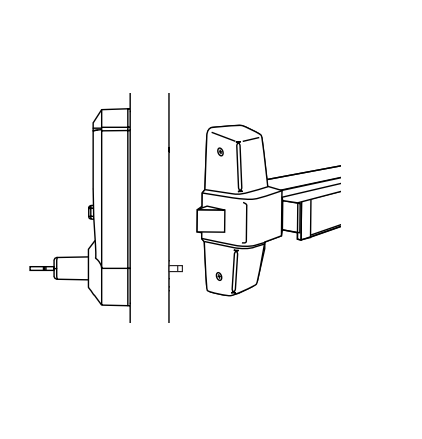

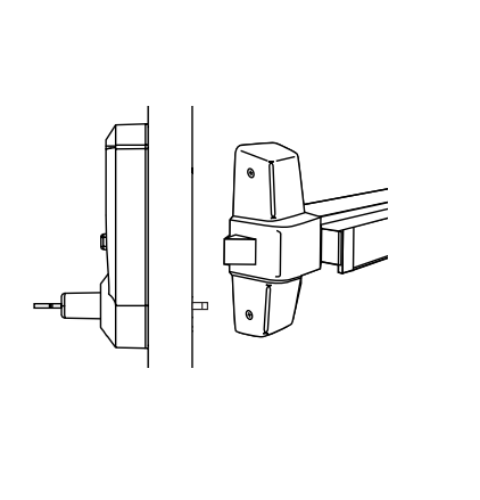

Provides exterior access by combination and Key Override, while allowing free egress with exit device (Exit Device not supplied).

Key Override -Interchangeable Core for "Schlage" Removable Core, Core not Included

Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed: pre-assembled for left hand door - easily changed in the field

Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty lockset, solid cast housings, solid cast levers,wear tested for exten- sive use in indoor and outdoor applications

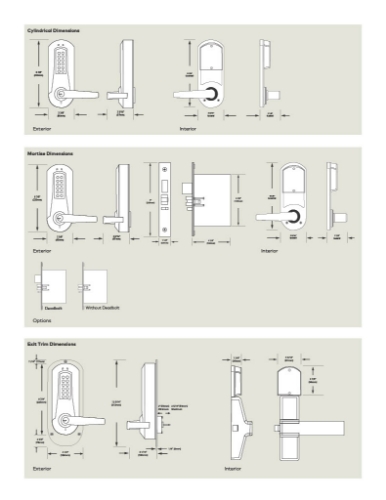

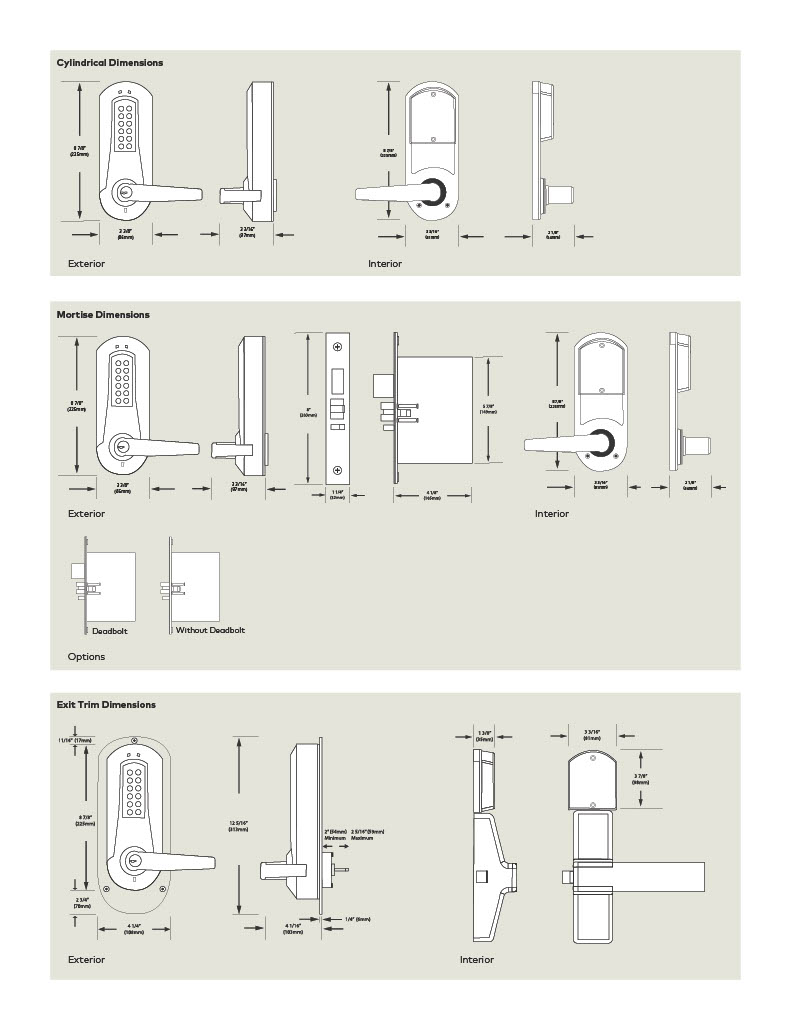

Door Thickness:13⁄4" (44 mm) to 21⁄4" (57 mm) Pre-assembled to accommodate doors 13⁄4" (44 mm) to 21⁄8" (54 mm)

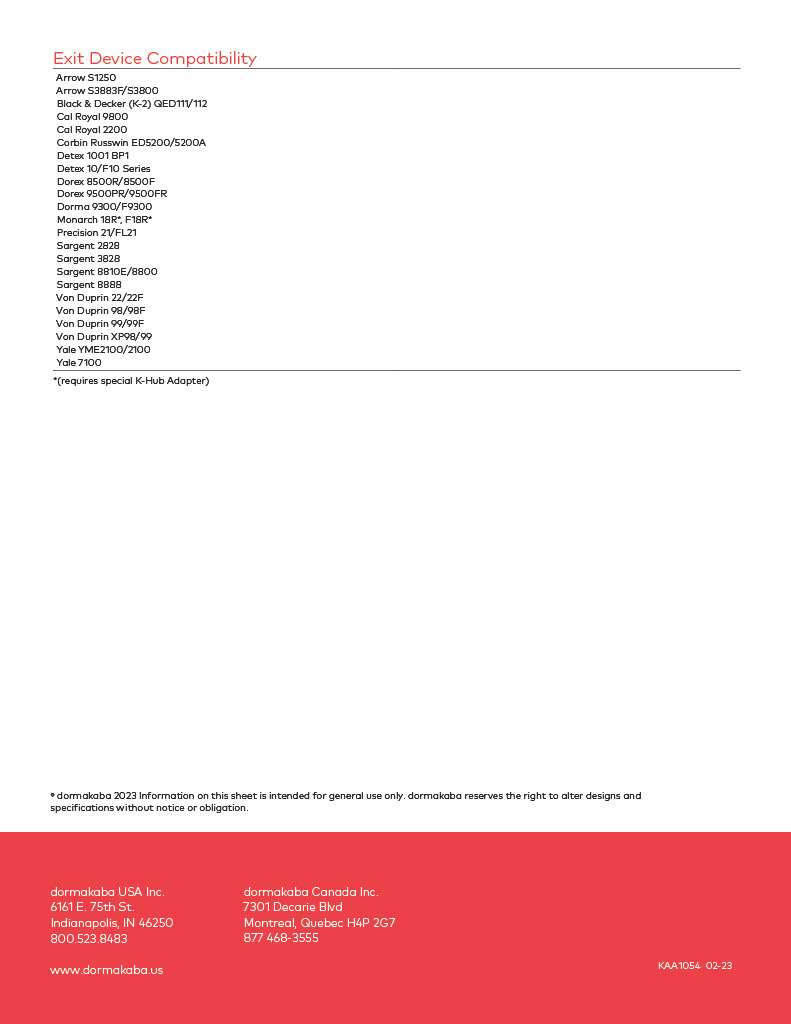

*Exit Device Compatibility:Arrow S1250, Arrow S3883F/S3800, Black & Decker (K-2) QED111/112, Cal Royal 9800, Cal Royal 2200, Corbin Russwin ED5200/5200A, Detex 1001 BP1, Detex 10/F10 Series, Dorex 8500R/8500F, Dorex 9500PR/9500FR, Dorma 9300/F9300, Dorma 9400B/F9400, Monarch 18R,F18R, Precision 21/FL21, Sargent 2828, Sargent 3828, Sargent 8810E/8800, Sargent 8888, Von Duprin 22/22F, Von Duprin 98/98F, Von Duprin 99/99F, Von Duprin XP98/99, Yale YME2100/2100, Yale 7100.(requires special K-Hub Adapter)(Exit Device not included)

ANSI/BHMA A156.3, Grade 1 Certification

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Model: Dormakaba Ilco E5010SWL62641, E5010SWL626, E5010SWL26D41, E5010SWL26D, Simplex Eplex 5000, E Plex 5010, E5010, E501026D
