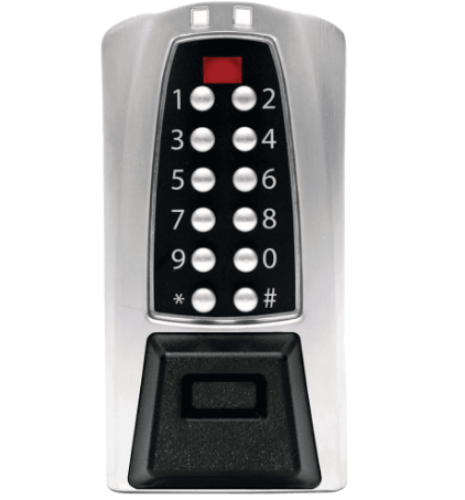

Dormakaba E5070-626-41 Stand-Alone Access Controller - Satin Chrome

Dormakaba* E5070-626-41 Stand-Alone Access Controller - Satin Chrome*

Access Control:Electronic pushbutton solution for dual-swing doors, parking gates, glass doors,etc., featuring online-type functionality in a stand-alone, easy-to-install reader housing with keypad—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access control for multiple users using specific PINs (Personal Identification Numbers).     Number of Codes:Multiple Users—100 Codes; upgrades to 300 Codes with optional software

Capability:3,000 Events; upgrades to 9,000 Events with optional software

Programming:Readers are programmed via keypad or with optional Microsoft Excel-based software—simplifies management of doors and users as facility’s number of users  and access points grow

Operation Modes:  PIN access  Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours  Lockout

Authority Levels:Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours

User Parameters:Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds         Power:Requires 12–24 VDC power input from standard, off-the-shelf power interface units (must have battery backup). If power is lost, user data and lock parameters are retained in on-board memory.

Vandal Resistance:Exclusive tamper-switch circuitry in reader housing prevents unauthorized access if unit is attacked or removed from mounting plate. If tamper is detected, the reader unit emits constant bright blue lights and all internal wires other than power are passive until unit is reset. Once reader unit is later reinstalled and/or remotely reset, PIN access is restored.

Construction:Solid cast housing

Numeric Keypad:Vandal resistant, solid metal pushbuttons

Indicators:Audible and visual indicators; visual tamper indicator Audit

Operating Range:-31 Degree F (-35 Degree C) to 151 Degree F (66 Degree C)

Warranty:3-year warranty from date of installation; built-in warranty counter in memory

Model: Dormakaba Eplex E5070-626-41, E5070626-41, E507062641,  E50-70-626-41, E507062641, E5070-606-41, E5070-605-41, E5070-744-41,E5070-625-41
