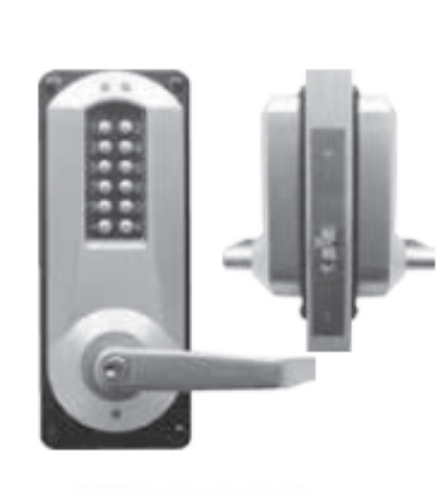

Dormakaba E5086BWL Double Sided Mortise lock - IC Core For Best

Dormakaba* E5086-B-WL Double Sided Electronic Mortise lock - IC Core For Best*

Key Override - Small Format "Best or Equivalent Interchangeable Core (6 or 7 Pin), Core not Included

Access Control:Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling and collecting keys and cards. Provides interior and exterior access by combination.

Minimum Stile Required:5" (127 mm)

Locking Device:American Standard Mortise: With 1¼" (32 mm) face plate; without deadbolt

Number of Codes:Multiple Users—100 Codes; upgrades to 300 Codes with optional software

Programming:Locks are programmed via keypad or with optional Microsoft Excel-based software—simplifies management of doors and users as facility’s number of users and access points grow

Handing:Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override:Key-in-Lever/Knob cylinders, small format interchangeable cores, large format removable cores

Operation Modes:  Single credential—access  Single credential—egress

Authority Levels:Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours

User Parameters:Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds

Battery Operation:Batteries located in mortise housing; offers quick and easy battery replacement for institutions (four AA Alkaline batteries provide up to 100,000 cycles). Lock data is maintained if batteries fail.

Construction:Extra heavy-duty Grade 1 lock; solid cast housings; solid cast zinc levers, tested for extensive use in indoor and outdoor applications

Numeric Keypad:Vandal resistant, solid metal pushbuttons

Handing:Non-handed; pre-assembled for left-hand door installation—easily changed in the field

Backset:Mortise: 2¾" (70 mm) backset

Latch:¾" (19 mm) latch

Ease of Installation:Utilizes existing mortise prep for simple installation

Door Preparation:Easily installs on wood or metal doors; four bolt installation; no wiring

Door Thickness:1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

Battery:Batteries located in mortise housing; provides quick and easy battery replacement for institutions; four AA batteries provide up to 100,000 cycles

Indicators:Audible and visual indicators; low battery visual indicator Audit

Capability:3,000 Events; upgrades to 9,000 Events with optional software

Certification and Testing

Accessibility Standard:Americans with Disabilities Act (ADA)

Fire Rating:3-hour, UL/ULC fire door rating for "A" labeled doors         Durability:ANSI/BHMA Grade 1 Certified for Mortise Electronic Locks (A156.13 and A156.25)   Environmental:Indoor/Outdoor Approved Front Housing: -31 Degree F (-35  Degree C) to 151 Degree F (66 Degree C); Rear Housing: -31 Degree F (-35 Degree C) to 151 Degree F (66 Degree C)

Warranty:1-year warranty from date of installation; built-in warranty counter in lock memory

Model: Dormakaba Eplex E5086BWL626-41, E5086BWL-744-41, E5086-B-WL-744-41, E5086BWL-626-41, E5086BWL62641, E5086BWL 626 41
